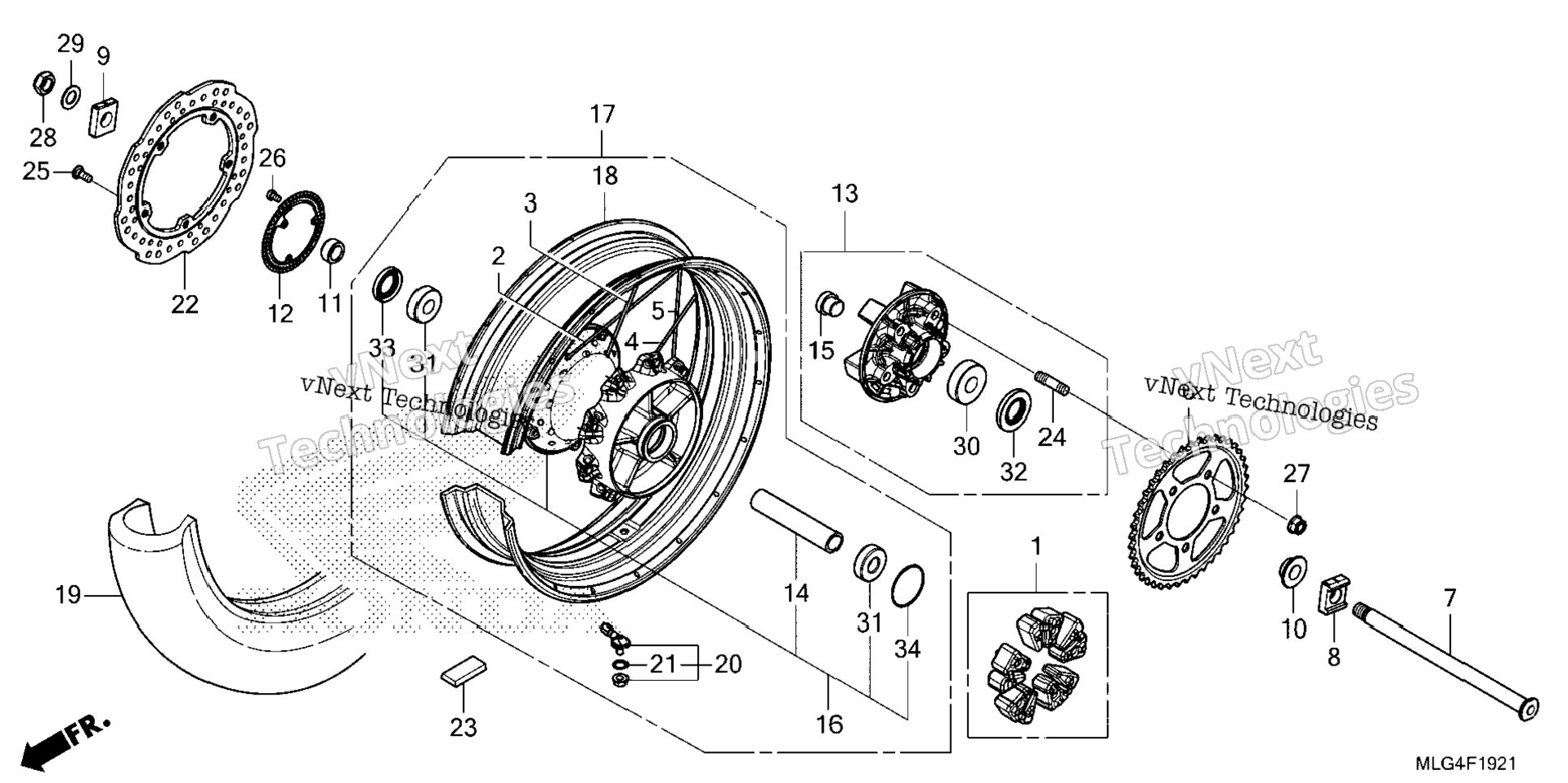

| 1 | 06410-MBB-000 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 06420-MKS-E20 | SPOKE SET A, RR. (R. OUTSIDE) | 9 шт. | — | |
|
| 3 | 06421-MKS-E20 | SPOKE SET B, RR. (R. INSIDE) | 9 шт. | — | |
|
| 4 | 06422-MKS-E20 | SPOKE SET C, RR. (L. OUTSIDE) | 9 шт. | — | |
|
| 5 | 06423-MKS-E20 | SPOKE SET D, RR. (L. INSIDE) | 9 шт. | — | |
|
| 6 | 41201-MJP-G51 | SPROCKET, FINAL DRIVEN (42T) | 1 шт. | — | |
|
| 7 | 42301-MKS-E00 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 8 | 42305-MKS-E00 | COLLAR, L. RR. AXLE | 1 шт. | — | |
|
| 9 | 42306-MKS-E00 | COLLAR, R. RR. AXLE | 1 шт. | — | |
|
| 10 | 42311-MGS-D10 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 11 | 42312-MGS-D10 | COLLAR, RR. BRAKE SIDE | 1 шт. | — | |
|
| 12 | 42515-MKS-E20 | RING, RR. PULSER | 1 шт. | — | |
|
| 13 | 42615-MKS-E00 | FLANGE SUB-ASSY., FINAL DRIVEN | 1 шт. | — | |
|
| 14 | 42620-MKS-E20 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 15 | 42625-MJP-G50 | COLLAR B, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 16 | 42635-MKS-E20 | HUB SUB-ASSY., RR. | 1 шт. | — | |
|
| 17 | 42650-MKS-E51 | WHEEL SUB-ASSY., RR. | 1 шт. | — | |
|
| 18 | 42701-MKS-E52 | RIM, RR. WHEEL | 1 шт. | — | |
|
| 19 | 42711-MKS-E21 | TIRE, RR. (150/70R18 M/C 70H) (BS) | 1 шт. | — | |
|
| 20 | 42711-MKS-E22 | TIRE, RR. (150/70R18 M/C 70H) (METZELER) | 1 шт. | — | |
|
| 21 | 42755-MKA-D81 | VALVE ASSY., CLAMP IN | 1 шт. | — | |
|
| 22 | 42758-MKA-D81 | O-RING | 1 шт. | — | |
|
| 23 | 43251-MKS-E21 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 24 | 44721-MGH-H21 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 25 | 44722-MGH-H21 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 26 | 44723-MGH-H21 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 27 | 90102-MAS-000 | BOLT 2, STUD (12X25) | 5 шт. | — | |
|
| 28 | 90106-MGE-000 | BOLT, DISK (8X20) | 5 шт. | — | |
|
| 29 | 90131-MGE-000 | BOLT, TORX (5X8) | 3 шт. | — | |
|
| 30 | 90306-KF0-003 | NUT, FLANGE (12MM) (FUSE RASHI) | 5 шт. | — | |
|
| 31 | 90306-MCS-G01 | NUT, U (18MM) | 1 шт. | — | |
|
| 32 | 90401-KZ4-890 | WASHER (18X32X2) | 1 шт. | — | |
|
| 33 | 91051-MAS-003 | BEARING, RADIAL BALL (63/22) | 1 шт. | — | |
|
| 34 | 91053-MGS-D31 | BEARING, RADIAL BALL (6204UU) | 2 шт. | — | |
|
| 35 | 91252-MAS-003 | DUST SEAL (30X56X7.5) | 1 шт. | — | |
|
| 36 | 91253-443-761 | DUST SEAL (30X47X8) (ARAI) | 1 шт. | — | |
|
| 37 | 91253-443-762 | DUST SEAL (30X47X8) (NOK) | 1 шт. | — | |
|
| 38 | 91351-MGS-D30 | O-RING (55X2) | 1 шт. | — | |
|
