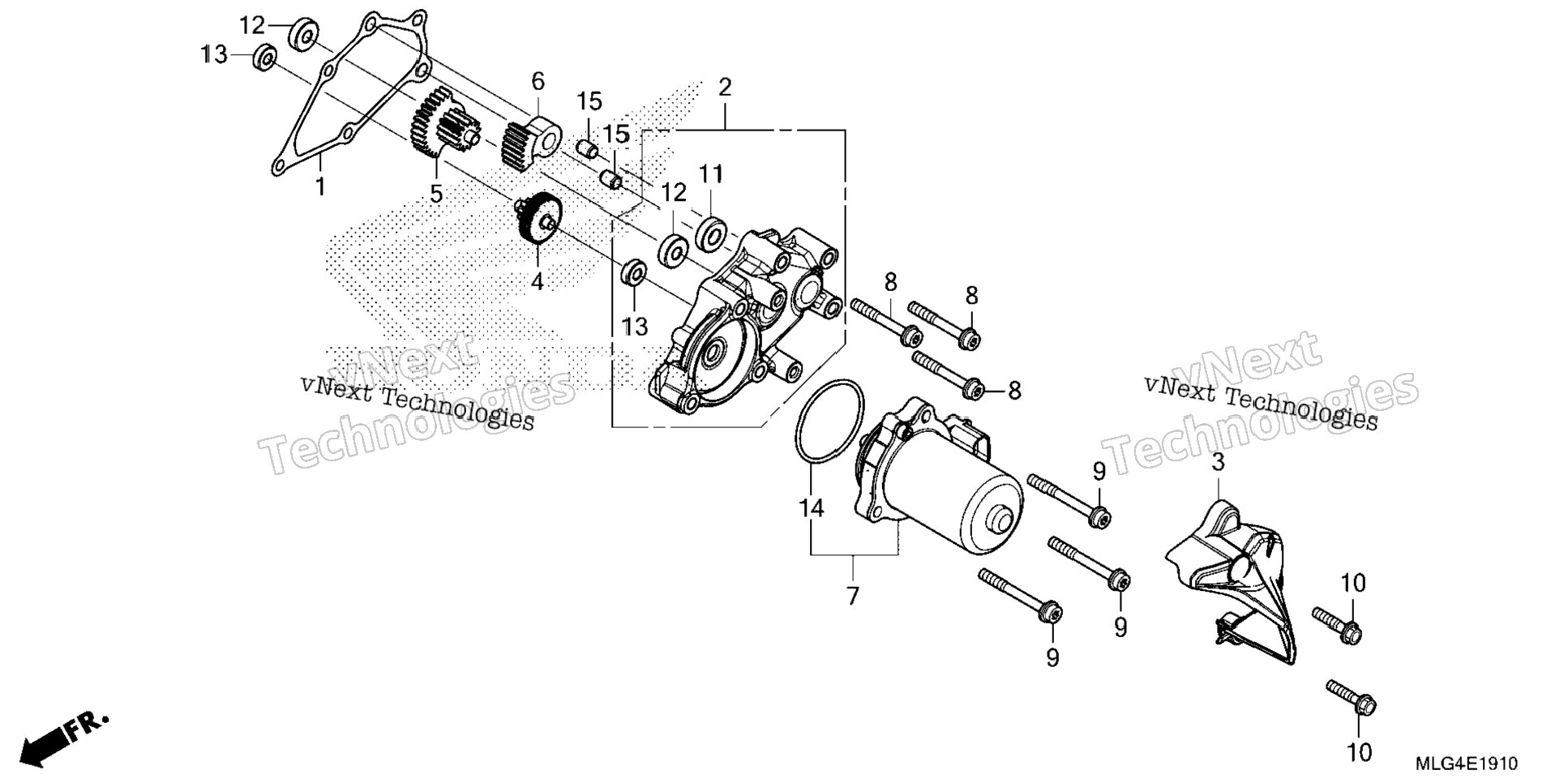

| 1 | 11397-MJP-G81 | GASKET, REDUCTION COVER | 1 шт. | — | |
|
| 2 | 11520-MJP-G80 | COVER, REDUCTION GEAR | 1 шт. | — | |
|
| 3 | 11530-MJP-G80 | COVER, RATIO CONTROL MOTOR | 1 шт. | — | |
|
| 4 | 24615-MGE-D01 | GEAR, SHIFT REDUCTION (45T/7T) | 1 шт. | — | |
|
| 5 | 24616-MGS-D21 | GEAR, SHIFT REDUCTION (32T/13T) | 1 шт. | — | |
|
| 6 | 24617-MGE-D01 | GEAR, SHIFT REDUCTION (42T) | 1 шт. | — | |
|
| 7 | 31300-MJP-G81 | MOTOR ASSY., RATIO CONTROL | 1 шт. | — | |
|
| 8 | 90010-MJP-G80 | BOLT, FLANGE TORX (6X45) | 3 шт. | — | |
|
| 9 | 90011-MJP-G80 | BOLT, FLANGE TORX (6X53) | 3 шт. | — | |
|
| 10 | 90026-GHB-680 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 11 | 91025-MGS-D21 | BEARING, RADIAL BALL (699ZZ) | 1 шт. | — | |
|
| 12 | 91026-MGS-D21 | BEARING, RADIAL BALL (607ZZ) | 2 шт. | — | |
|
| 13 | 91027-MGS-D21 | BEARING, RADIAL BALL (696ZZ) | 2 шт. | — | |
|
| 14 | 91301-MJP-G81 | O-RING, CONTROL MOTOR | 1 шт. | — | |
|
| 15 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
