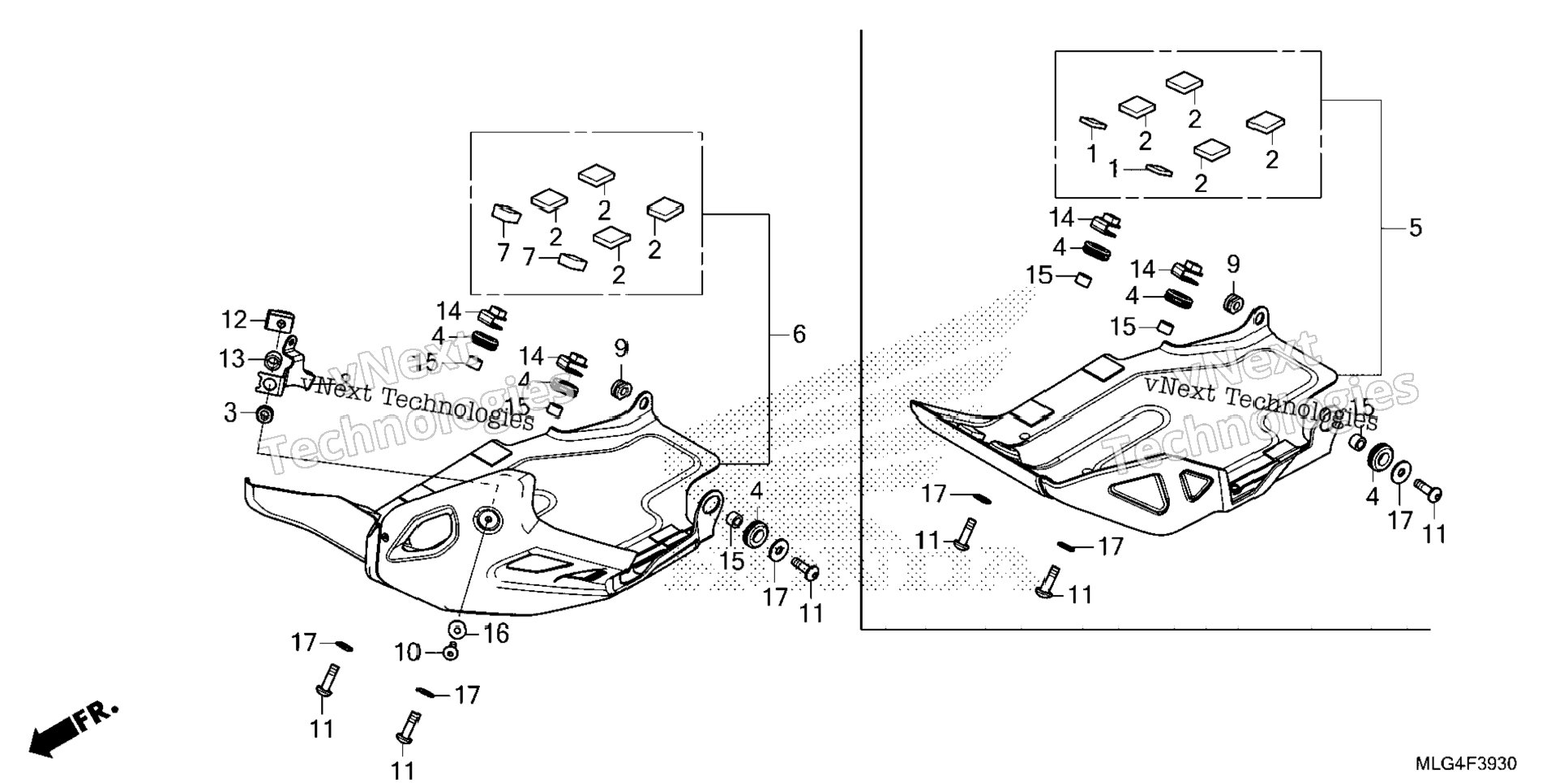

| 1 | 17515-KFB-840 | RUBBER, TANK GUARD | 4 шт. | — | |
|
| 2 | 18345-MKS-E20 | RUBBER, PROTECTOR MOUNTING | 1 шт. | — | |
|
| 3 | 52491-MCA-000 | GROMMET, MOTOR MOUNTING | 3 шт. | — | |
|
| 4 | 64440-MKS-E20 | PLATE, SKID | 1 шт. | — | |
|
| 5 | 64444-MKS-E20 | RUBBER B, CUSHION | 2 шт. | — | |
|
| 6 | 64480-MKS-E20 | BRACKET, L. SKID | 1 шт. | — | |
|
| 7 | 80101-283-000 | RUBBER, RR. FENDER CUSHION | 1 шт. | — | |
|
| 8 | 90085-KFB-000 | BOLT, SPECIAL (6X22) | 1 шт. | — | |
|
| 9 | 90128-KL4-000 | BOLT, SPROCKET FIXING | 3 шт. | — | |
|
| 10 | 90311-K66-V00 | NUT, CLIP (6MM) | 1 шт. | — | |
|
| 11 | 90312-GF0-000 | COLLAR, BODY COVER | 1 шт. | — | |
|
| 12 | 90321-MJP-G60 | NUT, CLIP (8MM) | 2 шт. | — | |
|
| 13 | 90512-MJP-G60 | COLLAR (8.5X14X9) | 3 шт. | — | |
|
| 14 | 90525-030-000 | WASHER B, HANDLE HOLDER SETTING | 1 шт. | — | |
|
| 15 | 94101-08000 | WASHER, PLAIN (8MM) | 3 шт. | — | |
|
