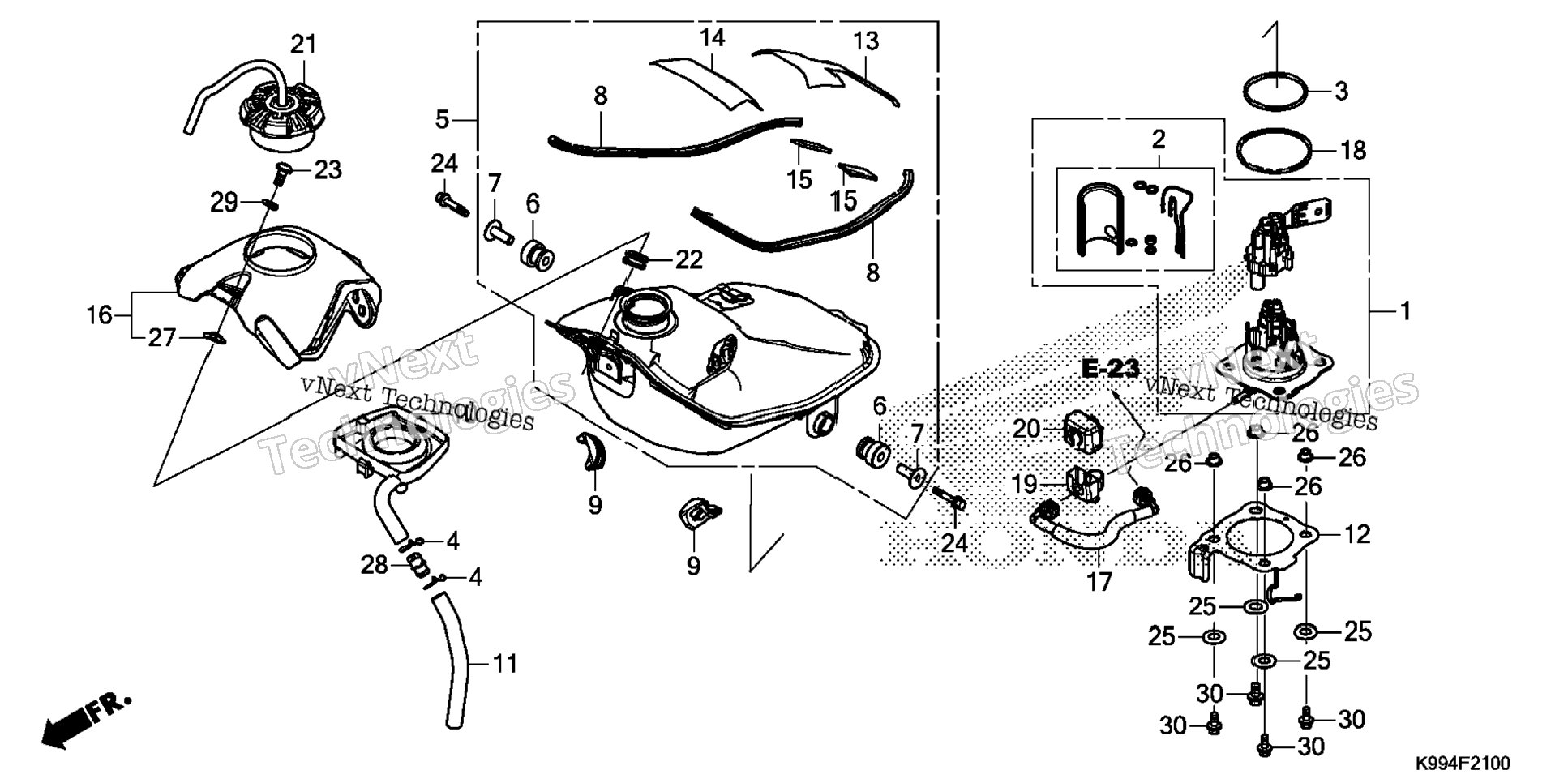

| 1 | 16700-K99-A01 | PUMP UNIT ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16707-K45-N01 | FILTER SET | 1 шт. | — | |
|
| 3 | 16711-K99-A01 | O-RING (3.7X62.9) | 1 шт. | — | |
|
| 4 | 17316-KRH-D20 | CLIP, BREATHER TUBE | 2 шт. | — | |
|
| 5 | 17500-K99-A01 | TANK ASSY., FUEL | 1 шт. | — | |
|
| 6 | 17508-GBF-830 | RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING | 2 шт. | — | |
|
| 7 | 17509-KPS-900 | COLLAR, TANK SETTING | 2 шт. | — | |
|
| 8 | 17515-K99-A00 | TRIM, FUEL TANK | 2 шт. | — | |
|
| 9 | 17522-K99-A00 | RUBBER, TANK MOUNTING | 2 шт. | — | |
|
| 10 | 17523-K99-A00 | TRAY, FUEL | 1 шт. | — | |
|
| 11 | 17525-K99-A00 | TUBE, FUEL DRAIN | 1 шт. | — | |
|
| 12 | 17527-K99-A00 | PLATE, SETTING | 1 шт. | — | |
|
| 13 | 17534-K99-A00 | FILM A, PROTECTOR | 1 шт. | — | |
|
| 14 | 17535-K99-A00 | FILM B, PROTECTOR | 1 шт. | — | |
|
| 15 | 17536-K99-A01 | RUBBER A | 2 шт. | — | |
|
| 16 | 17560-K99-A00 | COVER, CENTER TANK | 1 шт. | — | |
|
| 17 | 17571-K99-A01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 18 | 17574-K99-A01 | DUST SEAL | 1 шт. | — | |
|
| 19 | 17575-K99-A00 | COVER, FUEL CONNECTOR | 1 шт. | — | |
|
| 20 | 17576-KRN-A90 | RUBBER, FUEL CONNECTOR | 1 шт. | — | |
|
| 21 | 17620-K99-B01 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 22 | 50317-MCG-000 | RUBBER, GRIP MOUNTING | 1 шт. | — | |
|
| 23 | 90128-KBP-900 | BOLT, SOCKET (8X16) | 1 шт. | — | |
|
| 24 | 90137-KA3-830 | BOLT, FLANGE (6X40) | 2 шт. | — | |
|
| 25 | 90502-MEN-A30 | WASHER, CONICAL SPRING FUEL PUMP | 4 шт. | — | |
|
| 26 | 90503-K99-A00 | COLLAR, FUEL PUMP | 4 шт. | — | |
|
| 27 | 90504-K99-A00 | COLLAR, FR. TANK | 1 шт. | — | |
|
| 28 | 91463-393-780 | JOINT, TUBE | 1 шт. | — | |
|
| 29 | 94101-08000 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 30 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 4 шт. | — | |
|
