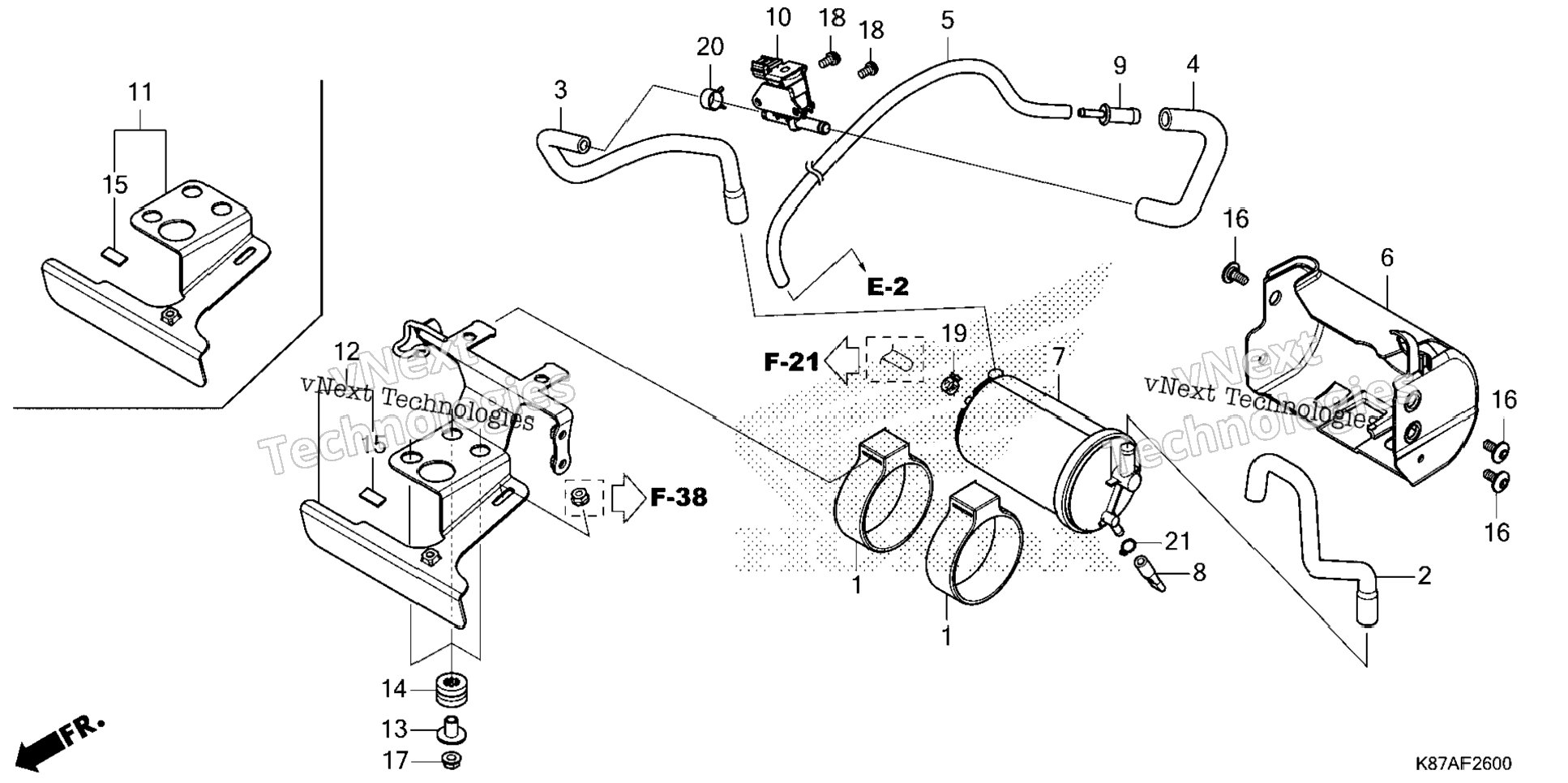

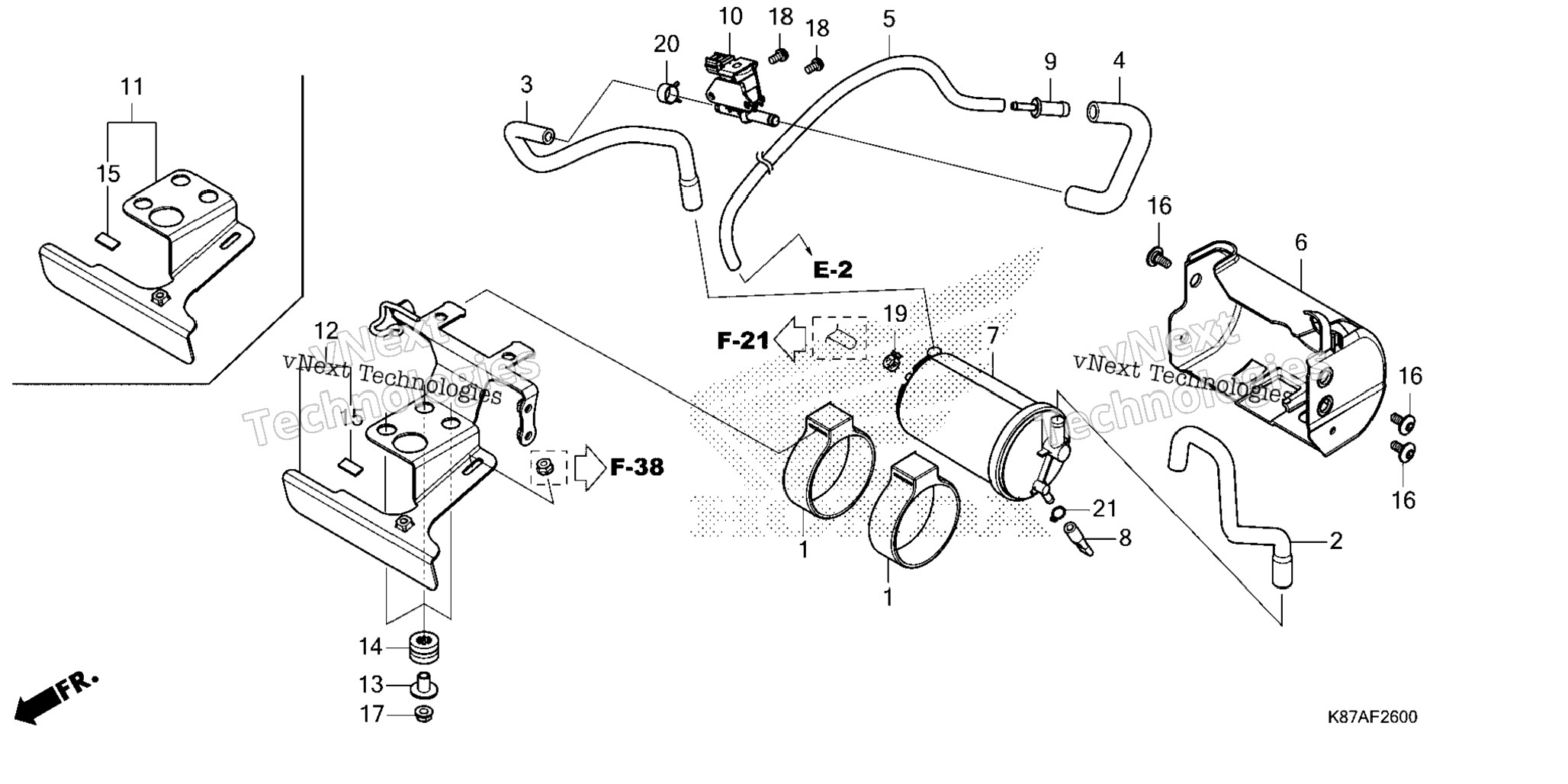

| 1 | 17411-KPP-930 | RUBBER, CANISTER MOUNTING | 2 шт. | — | |
|
| 2 | 17413-K87-A00 | TUBE, AIR | 1 шт. | — | |
|
| 3 | 17414-K87-L50 | TUBE, PURGE (PCSV-CANISTER) | 1 шт. | — | |
|
| 4 | 17415-K87-L00 | TUBE, PURGE CONTROL VALVE JOINT | 1 шт. | — | |
|
| 5 | 17416-K87-L00 | TUBE, CYLINDER HEAD | 1 шт. | — | |
|
| 6 | 17421-K87-L00 | COVER A, CANISTER | 1 шт. | — | |
|
| 7 | 17421-KYJ-902 | CANISTER | 1 шт. | — | |
|
| 8 | 17431-K87-L00 | TUBE, DRAIN | 1 шт. | — | |
|
| 9 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 10 | 36162-MKA-D81 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 12 | 50347-K87-L30 | STAY, REGULATE RECTIFIER | 1 шт. | — | |
|
| 13 | 61104-428-730 | COLLAR, FR. FENDER (BLACK) (FOR RR.) | 3 шт. | — | |
|
| 14 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 шт. | — | |
|
| 15 | 81257-KWC-900 | RUBBER, PROTECTOR | 1 шт. | — | |
|
| 16 | 90111-K87-A00 | SCREW, SPECIAL (6X14) | 3 шт. | — | |
|
| 17 | 90301-MG3-000 | NUT, U (6MM) | 3 шт. | — | |
|
| 18 | 93892-05010-08 | SCREW-WASHER (5X10) | 2 шт. | — | |
|
| 19 | 95002-40800-08 | CLAMP, TUBE (D8) | 1 шт. | — | |
|
| 20 | 95002-41200-08 | CLAMP, TUBE (D12) | 1 шт. | — | |
|
| 21 | 95002-50000 | CLIP, TUBE (C9) | 1 шт. | — | |
|
