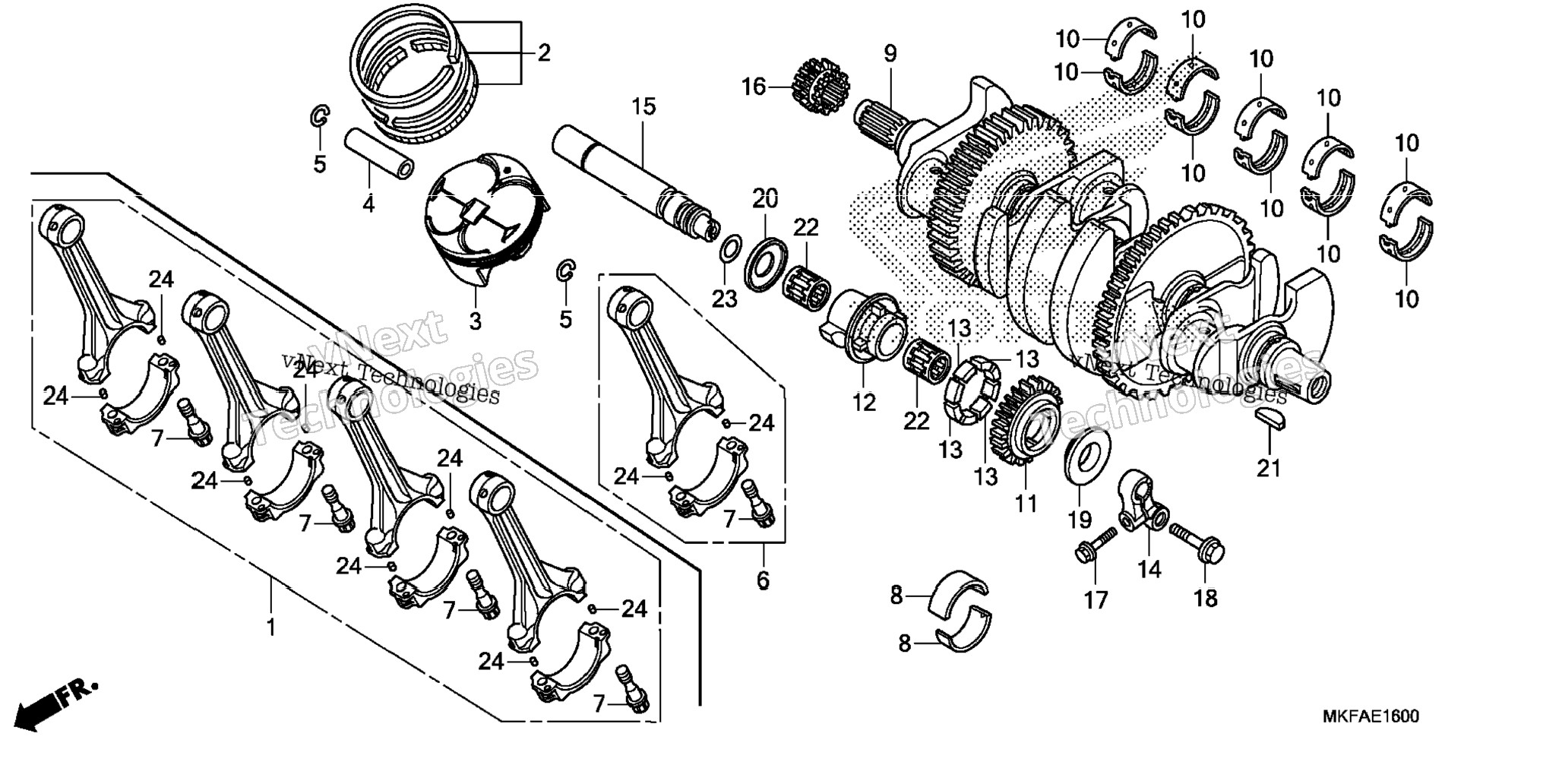

| 2 | 13031-MKF-D40 | RING SET, PISTON | 4 шт. | — | |
|
| 3 | 13101-MKF-D40 | PISTON | 4 шт. | — | |
|
| 4 | 13111-MFL-010 | PIN, PISTON | 4 шт. | — | |
|
| 5 | 13112-MEL-000 | CLIP, PISTON PIN (17MM) | 8 шт. | — | |
|
| 6 | 13210-MKF-D40 | ROD ASSY., CONNECTING | 4 шт. | — | |
|
| 7 | 13213-MFL-003 | BOLT, CONNECTING ROD | 8 шт. | — | |
|
| 8 | 13214-MKF-D41 | BEARING A, CONNECTING ROD (BLUE) | 8 шт. | — | |
|
| 8 | 13215-MKF-D41 | BEARING B, CONNECTING ROD (BLACK) | 8 шт. | — | |
|
| 8 | 13216-MKF-D41 | BEARING C, CONNECTING ROD (BROWN) | 8 шт. | — | |
|
| 8 | 13217-MKF-D41 | BEARING D, CONNECTING ROD (GREEN) | 8 шт. | — | |
|
| 8 | 13218-MKF-D41 | BEARING E, CONNECTING ROD (YELLOW) | 8 шт. | — | |
|
| 9 | 13310-MKF-D40 | CRANKSHAFT | 1 шт. | — | |
|
| 10 | 13314-MFL-003 | BEARING B, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 10 | 13315-MFL-003 | BEARING C, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 10 | 13316-MFL-003 | BEARING D, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 10 | 13317-MFL-003 | BEARING E, CRANKSHAFT (PINK) | 10 шт. | — | |
|
| 10 | 13318-MFL-003 | BEARING F, CRANKSHAFT (RED) | 10 шт. | — | |
|
| 11 | 13421-MFL-000 | GEAR, BALANCER (26T) | 1 шт. | — | |
|
| 12 | 13430-MFL-000 | WEIGHT, BALANCER | 1 шт. | — | |
|
| 13 | 13435-MFL-000 | RUBBER, DAMPER | 4 шт. | — | |
|
| 14 | 13436-MM5-000 | HOLDER, BALANCER SHAFT | 1 шт. | — | |
|
| 15 | 13440-MKF-D40 | SHAFT, BALANCER | 1 шт. | — | |
|
| 16 | 14312-MFL-000 | SPROCKET, TIMING (17T) | 1 шт. | — | |
|
| 17 | 90002-MCZ-000 | BOLT, FLANGE (6X18) | 1 шт. | — | |
|
| 18 | 90022-MFA-D00 | BOLT, FLANGE (8X25) | 1 шт. | — | |
|
| 19 | 90457-MAT-000 | WASHER A, BALANCER SIDE | 1 шт. | — | |
|
| 20 | 90458-MAT-000 | WASHER B, BALANCER SIDE | 1 шт. | — | |
|
| 21 | 90701-HB6-010 | KEY, WOODRUFF (25X14X4) | 1 шт. | — | |
|
| 22 | 91015-MEL-003 | BEARING B, NEEDLE (18X27X23.8) (BLUE) | 2 шт. | — | |
|
| 22 | 91016-MEL-003 | BEARING C, NEEDLE (18X27X23.8) (WHITE) | 2 шт. | — | |
|
| 22 | 91017-MEL-003 | BEARING D, NEEDLE (18X27X23.8) (GREEN) | 2 шт. | — | |
|
| 23 | 91302-377-000 | O-RING (15X2.5) (Honda Code 0386995) | 1 шт. | — | |
|
| 24 | 94303-04065 | PIN C, DOWEL (4X6.5) | 8 шт. | — | |
|
