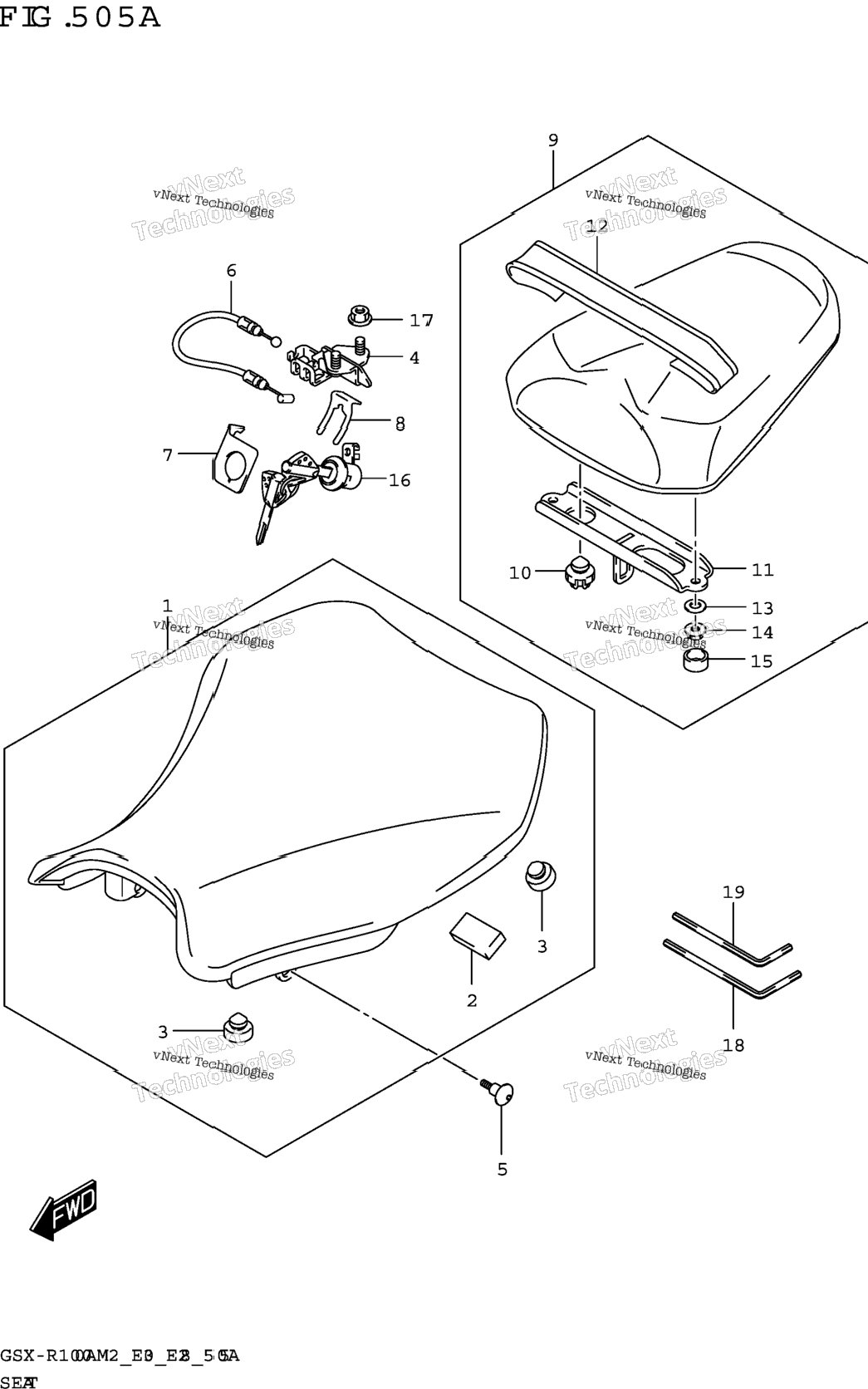

| 1 | 45100-17K03-W05 | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45149-37H00 | .CUSHION | 1 шт. | — | |
|
| 3 | 09321-10002 | .CUSHION (11.5X22X20) | 6 шт. | — | |
|
| 4 | 45220-04K20 | BRACKET,STRIKER SUPPORT | 1 шт. | — | |
|
| 5 | 45241-17K00 | BOLT,SEAT (6X20) | 2 шт. | — | |
|
| 6 | 45280-17K00 | CABLE,SEAT LOCK | 1 шт. | — | |
|
| 7 | 45288-14F30 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 8 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 9 | 45300-17K01-W05 | SEAT ASSY,PILLION (BLACK) | 1 шт. | — | |
|
| 10 | 45148-20G90 | .CUSHION | 2 шт. | — | |
|
| 11 | 45290-17K00 | .STRIKER,SEAT LOCK | 1 шт. | — | |
|
| 12 | 45380-17K01-W05 | .BAND,PILLION SEAT GRIP (BLAC ) | 1 шт. | — | |
|
| 13 | 09160-06126 | WASHER (6.5X14X2.0) | 2 шт. | — | |
|
| 14 | 08316-1006A | NUT (6X12) | 2 шт. | — | |
|
| 15 | 09251-09008 | CAP (OD:13.6) | 2 шт. | — | |
|
| 16 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 17 | 08316-1006A | NUT (6X12) | 2 шт. | — | |
|
| 18 | 96514-17K00 | SPANNER,HEXAGON (5) | 1 шт. | — | |
|
| 19 | 96514-17K10 | SPANNER,HEXAGON (4) | 1 шт. | — | |
|
