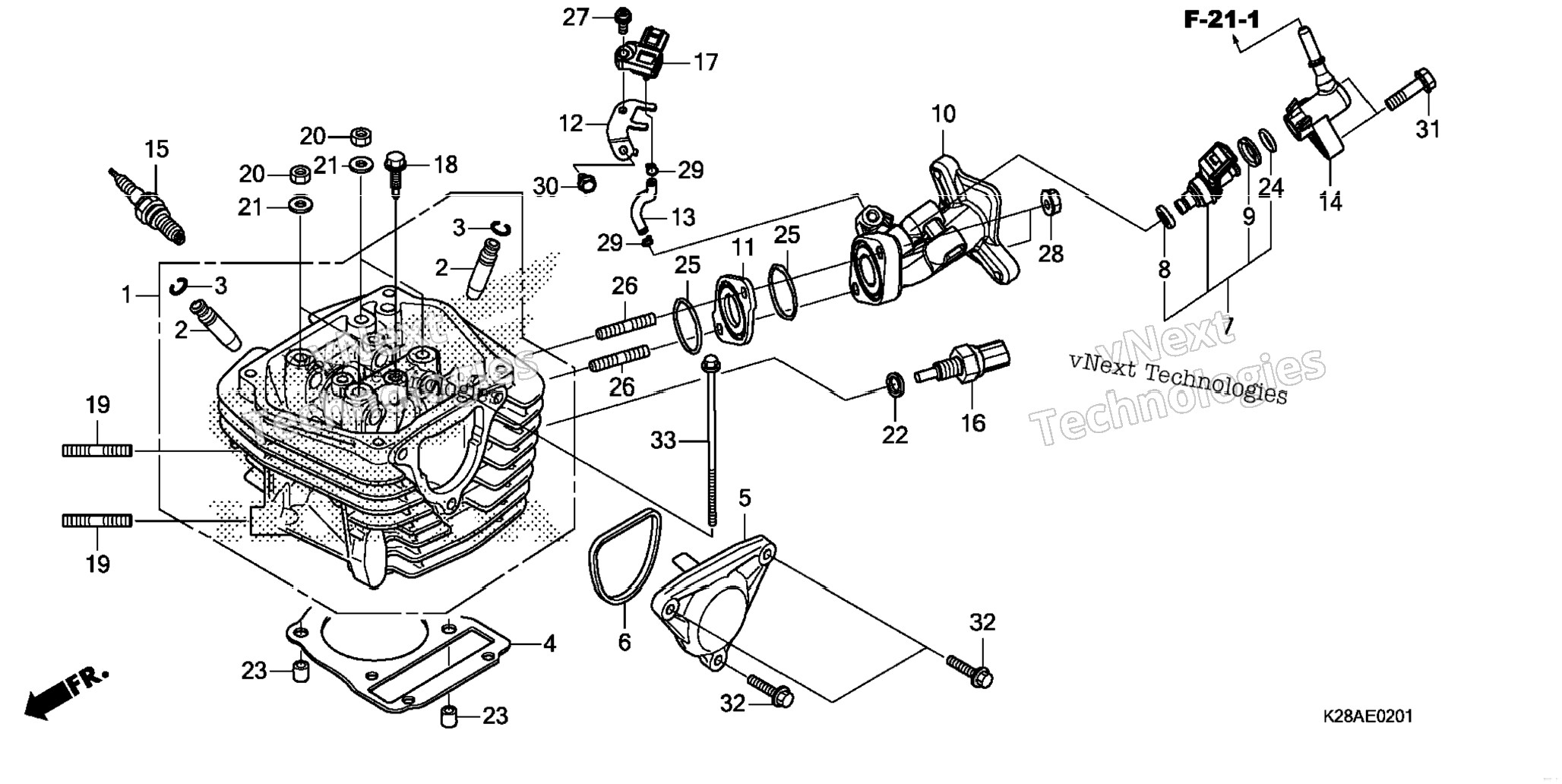

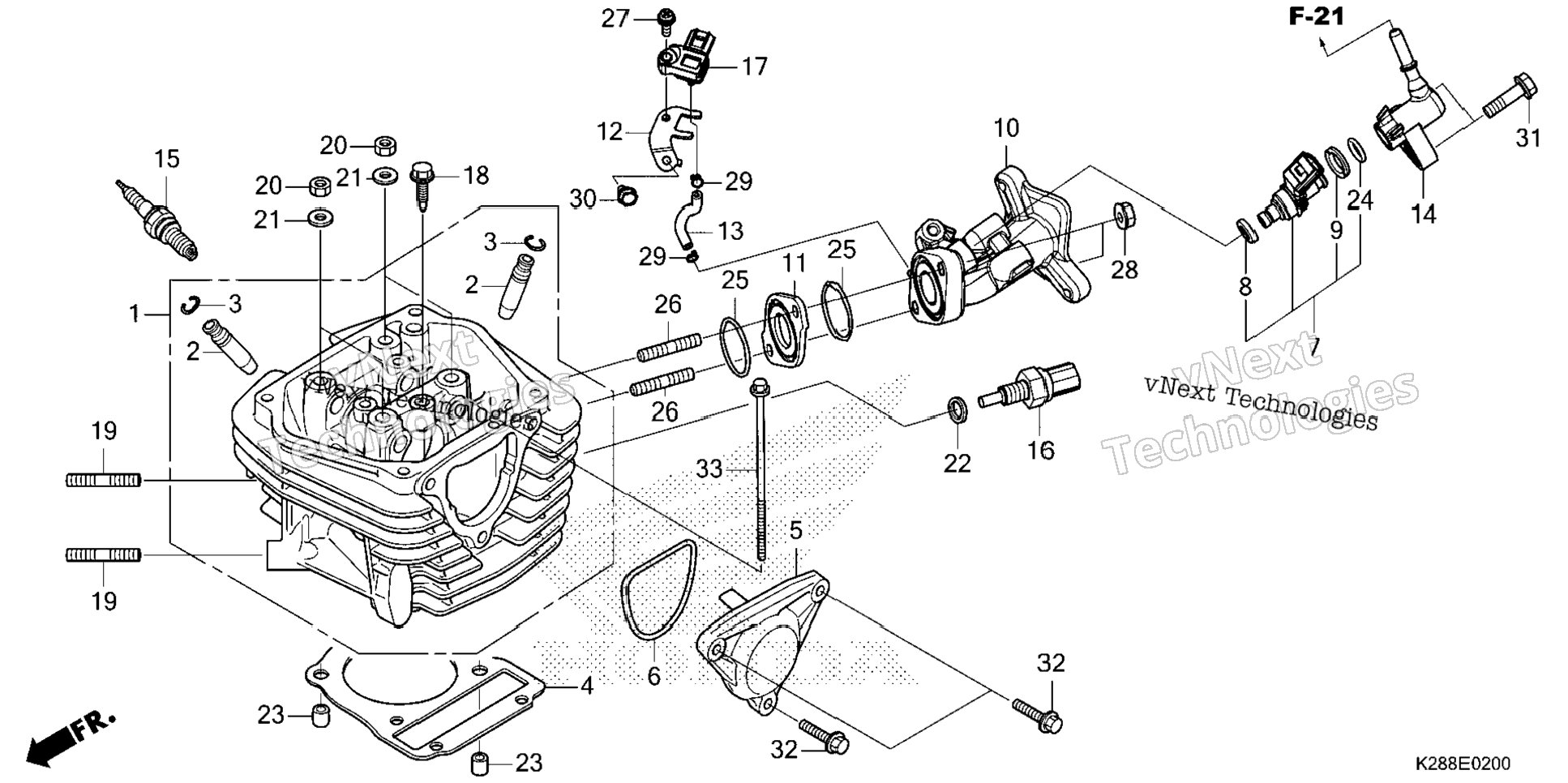

| 1 | 12200-K28-A60 | CYLINDER HEAD | 1 шт. | — | |
|
| 2 | 12204-KVY-305 | GUIDE, VALVE (OVER SIZE) | 2 шт. | — | |
|
| 3 | 12206-KPL-900 | CLIP, VALVE GUIDE | 2 шт. | — | |
|
| 4 | 12251-KYY-901 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 5 | 12341-KYY-900 | COVER, L. CYLINDER HEAD SIDE | 1 шт. | — | |
|
| 6 | 12395-KYY-900 | GASKET, L. CYLINDER HEAD SIDE COVER | 1 шт. | — | |
|
| 7 | 16450-K28-A61 | INJECTOR ASSY., FUEL | 1 шт. | — | |
|
| 8 | 16472-KPC-D50 | RING, SEAL (Honda Code 8954000) | 1 шт. | — | |
|
| 9 | 16473-HR3-A42 | DUST SEAL RING | 1 шт. | — | |
|
| 10 | 17111-K28-A60 | PIPE, INLET | 1 шт. | — | |
|
| 11 | 17113-KYY-901 | INSULATOR, INLET PIPE A | 1 шт. | — | |
|
| 12 | 17535-K28-A60 | STAY, PB | 1 шт. | — | |
|
| 13 | 17537-K28-A60 | TUBE, PB | 1 шт. | — | |
|
| 14 | 17565-K28-A60 | JOINT, INJECTOR | 1 шт. | — | |
|
| 15 | 31916-KPH-901 | SPARK PLUG (CPR6EA-9) (NGK) | 1 шт. | — | |
|
| 16 | 37750-KPH-701 | SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445) | 1 шт. | — | |
|
| 17 | 46401-TM8-A01 | SENSOR A, MASTER POWER PRESSURE | 1 шт. | — | |
|
| 18 | 90014-KYY-900 | BOLT, SPECIAL (6X21) | 1 шт. | — | |
|
| 19 | 90035-KRM-840 | BOLT, STUD (8X22) | 2 шт. | — | |
|
| 20 | 90201-GCC-000 | NUT, HEX. (7MM) | 4 шт. | — | |
|
| 21 | 90401-GFM-900 | WASHER (7.2X16X2.5) | 4 шт. | — | |
|
| 22 | 90443-MB0-000 | WASHER, SEALING (10.2MM) | 1 шт. | — | |
|
| 23 | 90701-KVR-C00 | PIN, DOWEL SPECIAL (8X14) | 2 шт. | — | |
|
| 24 | 91301-GGL-J01 | O-RING (6.3X2.2) | 1 шт. | — | |
|
| 25 | 91313-KVR-C00 | O-RING (27X2.0) | 2 шт. | — | |
|
| 26 | 92900-06025-0B | BOLT 2, STUD (6X25) | 2 шт. | — | |
|
| 27 | 93893-04020-18 | SCREW-WASHER (4X20) | 0 шт. | — | |
|
| 27 | 93893-04020-08 | SCREW-WASHER (4X20) | 1 шт. | — | |
|
| 28 | 94050-06000 | NUT, FLANGE (6MM) | 2 шт. | — | |
|
| 29 | 95002-02070 | CLIP, TUBE (B7) CLIP, TUBE (B6.5) | 2 шт. | — | |
|
| 30 | 95701-06010-00 | BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 31 | 95701-06022-00 | BOLT, FLANGE (6X22) | 2 шт. | — | |
|
| 32 | 96001-06025-00 | BOLT, FLANGE (6X25) | 3 шт. | — | |
|
| 33 | 96001-06110-00 | BOLT, FLANGE (6X110) | 2 шт. | — | |
|
