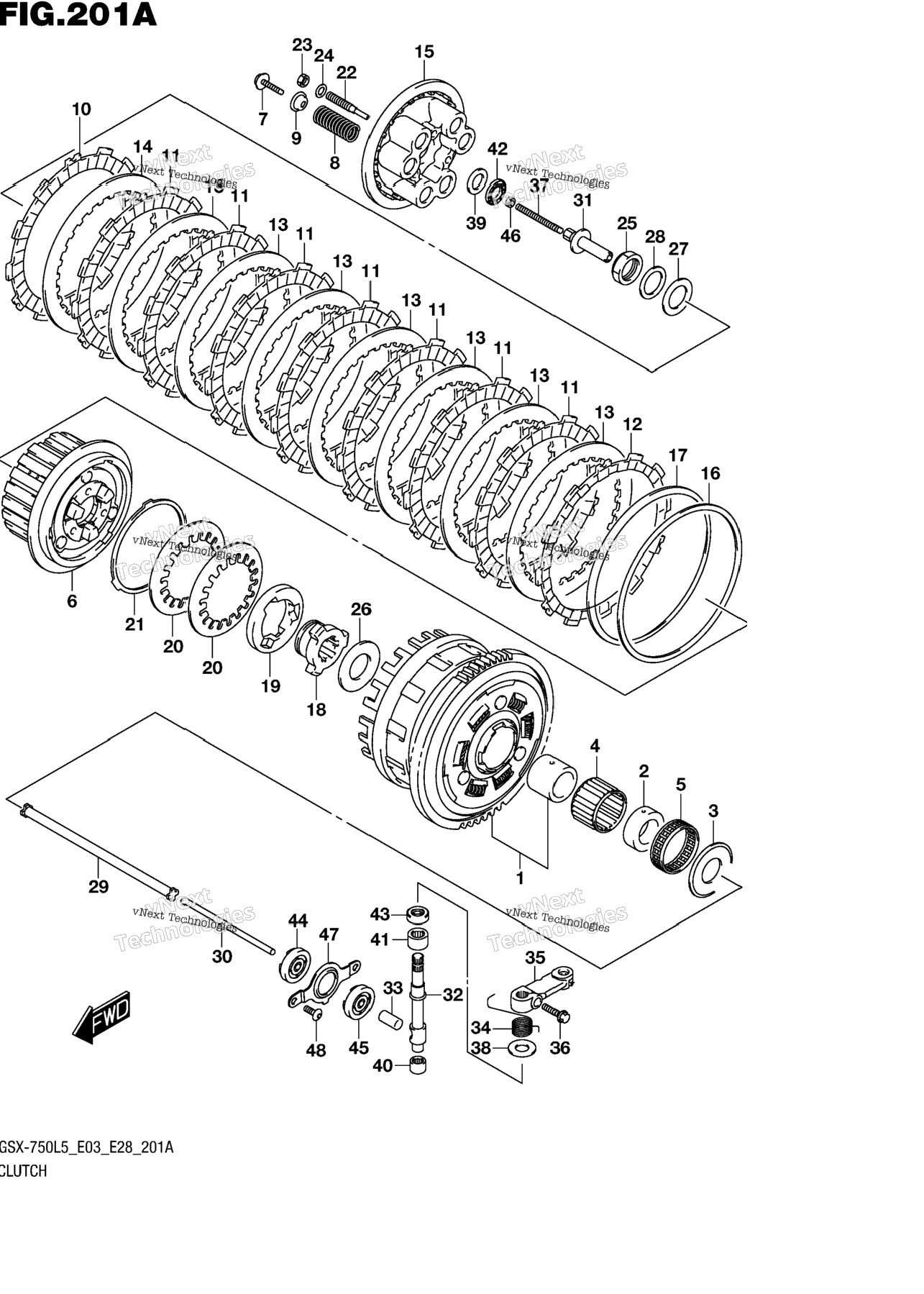

| 1 | 21200-01840 | GEAR ASSY, PRIMARY DRIVEN NT:74 | 1 шт. | — | |
|
| 2 | 21253-01H10 | SPACER, OIL PUMP DRIVE | 1 шт. | — | |
|
| 3 | 09160-25073 | WASHER (25X54X2.4) | 1 шт. | — | |
|
| 4 | 09263-35015 | BEARING (35X40X26.8) | 1 шт. | — | |
|
| 5 | 09263-35045 | BEARING (35X40X12) | 1 шт. | — | |
|
| 6 | 21410-41G30 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 7 | 21412-06G00 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 8 | 21413-01H10 | SPRING,CLUTCH | 6 шт. | — | |
|
| 9 | 21414-29F00 | WASHER | 6 шт. | — | |
|
| 10 | 21441-36F10 | PLATE, CLUTCH DRIVE NO.2 (T:2.8) | 1 шт. | — | |
|
| 11 | 21441-36F30 | PLATE, CLUTCH DRIVE NO.1 (T:2.8) | 7 шт. | — | |
|
| 12 | 21442-41G00 | PLATE, CLUTCH DRIVE NO.3 (T:2.8) | 1 шт. | — | |
|
| 13 | 21451-41G10 | PLATE, CLUTCH DRIVEN NO.1 (T:2.0) | 7 шт. | — | |
|
| 14 | 21451-41G30 | PLATE, CLUTCH DRIVEN NO.2 (T:1.6) | 1 шт. | — | |
|
| 15 | 21462-41G00 | DISC,CLUTCH PRESSURE | 1 шт. | — | |
|
| 16 | 21471-41G00 | SEAT,WAVE WASHER | 1 шт. | — | |
|
| 17 | 21472-41G20 | WASHER,CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 18 | 21611-41G30 | CAM,CLUTCH DRIVE | 1 шт. | — | |
|
| 19 | 21612-41G10 | CAM,CLUTCH DRIVEN | 1 шт. | — | |
|
| 20 | 21621-41G00 | WASHER,CAM REACTION WAVE | 2 шт. | — | |
|
| 21 | 21624-41G00 | WASHER,CAM REACTION SEAT | 1 шт. | — | |
|
| 22 | 21622-41G00 | LIFTER, CLUTCH PRESCURE DISC | 3 шт. | — | |
|
| 23 | 21623-41G00 | NUT, CL PRESS DISC | 3 шт. | — | |
|
| 24 | 09181-08139 | SHIM (8.8X14X1) | 3 шт. | — | |
|
| 25 | 09159-24010 | NUT | 1 шт. | — | |
|
| 26 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 27 | 09164-24008 | WASHER | 1 шт. | — | |
|
| 28 | 09160-25077 | WASHER (25X41X2.5) | 1 шт. | — | |
|
| 29 | 23110-38B00 | ROD,CLUTCH PUSH,R | 1 шт. | — | |
|
| 30 | 23111-35F00 | ROD,CLUTCH PUSH,L | 1 шт. | — | |
|
| 31 | 23121-41G00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 32 | 23122-41G10 | CAMSHAFT,CLUTCH RELEASE | 1 шт. | — | |
|
| 33 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 34 | 23125-41G00 | SPRING,CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 35 | 23271-41G40 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 36 | 09103-06223 | BOLT (6X20) | 1 шт. | — | |
|
| 37 | 09134-06015 | SCREW (6X73) | 1 шт. | — | |
|
| 38 | 09160-10020 | WASHER (10.5X24X1) | 1 шт. | — | |
|
| 39 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 40 | 09263-10014 | BEARING (10X14X10) | 1 шт. | — | |
|
| 41 | 09263-12027 | BEARING (12X18X12) | 1 шт. | — | |
|
| 42 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 43 | 09282-10012 | OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 44 | 09283-06010 | OIL SEAL (6X34X10.5) | 1 шт. | — | |
|
| 45 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 46 | 08310-0006A | NUT | 1 шт. | — | |
|
| 47 | 24741-01H00 | RETAINER,CL PUSH ROD OIL SEAL | 1 шт. | — | |
|
| 48 | 09139-06153 | SCREW (6X13) | 2 шт. | — | |
|
