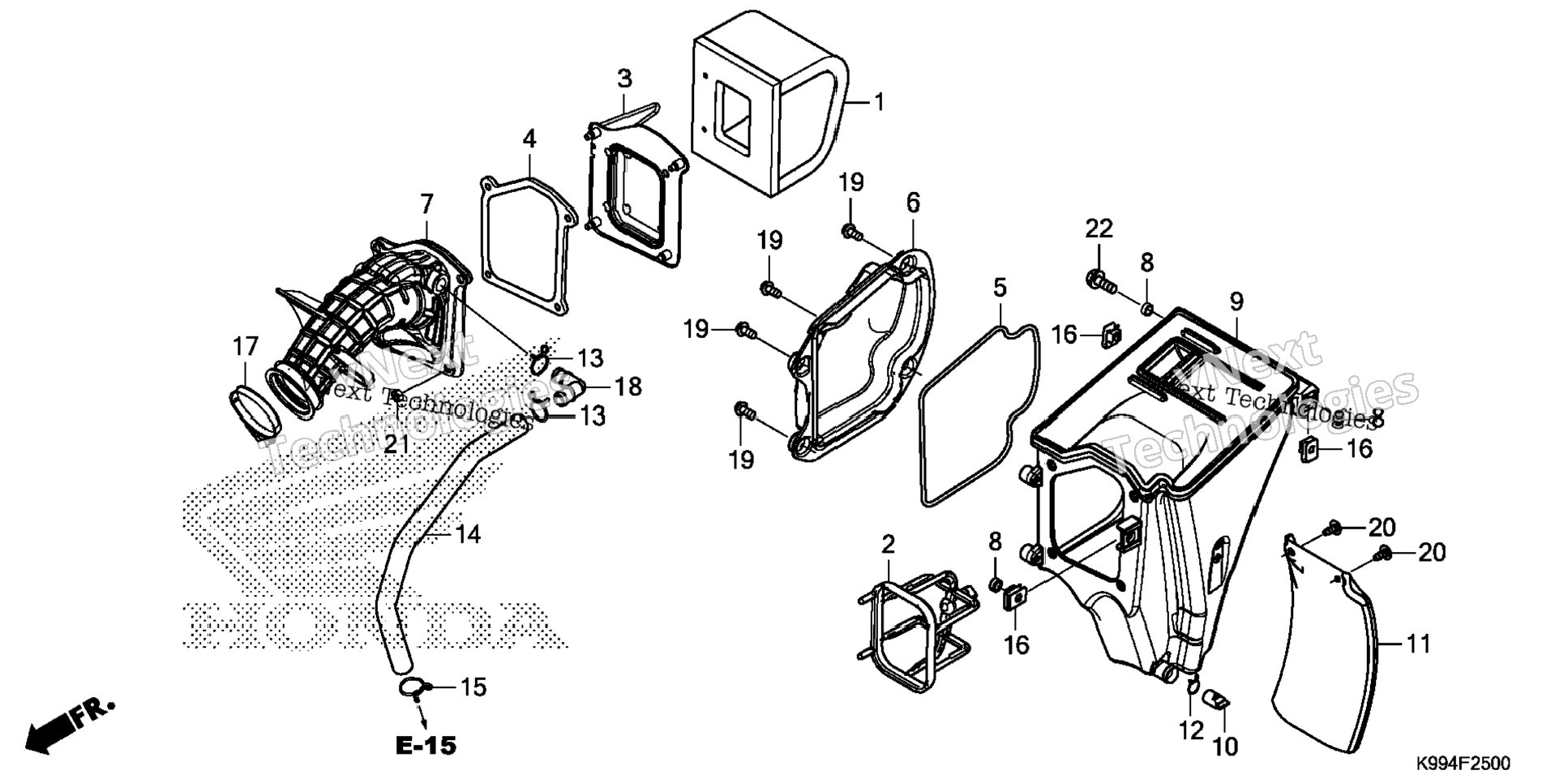

| 1 | 17213-K99-A00 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 2 | 17214-K99-A00 | HOLDER, ELEMENT | 1 шт. | — | |
|
| 3 | 17216-K99-A01 | PLATE, ELEMENT SETTING | 1 шт. | — | |
|
| 4 | 17217-K99-A00 | PLATE, FR. HOLDER | 1 шт. | — | |
|
| 5 | 17219-K99-A00 | SEAL, AIR CLEANER LID | 1 шт. | — | |
|
| 6 | 17220-K99-A00 | LID, AIR CLEANER HOUSING | 1 шт. | — | |
|
| 7 | 17222-K99-A00 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 8 | 17223-KVS-F30 | COLLAR, AIR CLEANER | 3 шт. | — | |
|
| 9 | 17230-K99-A00 | HOUSING, AIR CLEANER | 1 шт. | — | |
|
| 10 | 17236-K99-A00 | PLUG, AIR CLEANER DRAIN | 1 шт. | — | |
|
| 11 | 17245-K99-A00 | SPLASH GUARD | 1 шт. | — | |
|
| 12 | 17316-KRH-D20 | CLIP, BREATHER TUBE | 1 шт. | — | |
|
| 13 | 17369-KB4-670 | CLIP, BREATHER TUBE | 2 шт. | — | |
|
| 14 | 17371-K99-A00 | TUBE, BREATHER | 1 шт. | — | |
|
| 15 | 17724-102-700 | CLIP, SUB-TANK HOSE | 1 шт. | — | |
|
| 16 | 90311-KVS-F30 | NUT, CLIP (6MM) | 3 шт. | — | |
|
| 17 | 90652-K31-900 | BAND, AIR CLEANER CONNECTING TUBE (52) | 1 шт. | — | |
|
| 18 | 91463-K99-A00 | JOINT, TUBE | 1 шт. | — | |
|
| 19 | 93891-05012-07 | SCREW-WASHER (5X12) | 4 шт. | — | |
|
| 20 | 93903-25210 | SCREW, TAPPING (5X12) | 2 шт. | — | |
|
| 21 | 94001-05000-0S | NUT, HEX. (5MM) | 4 шт. | — | |
|
| 22 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 1 шт. | — | |
|
