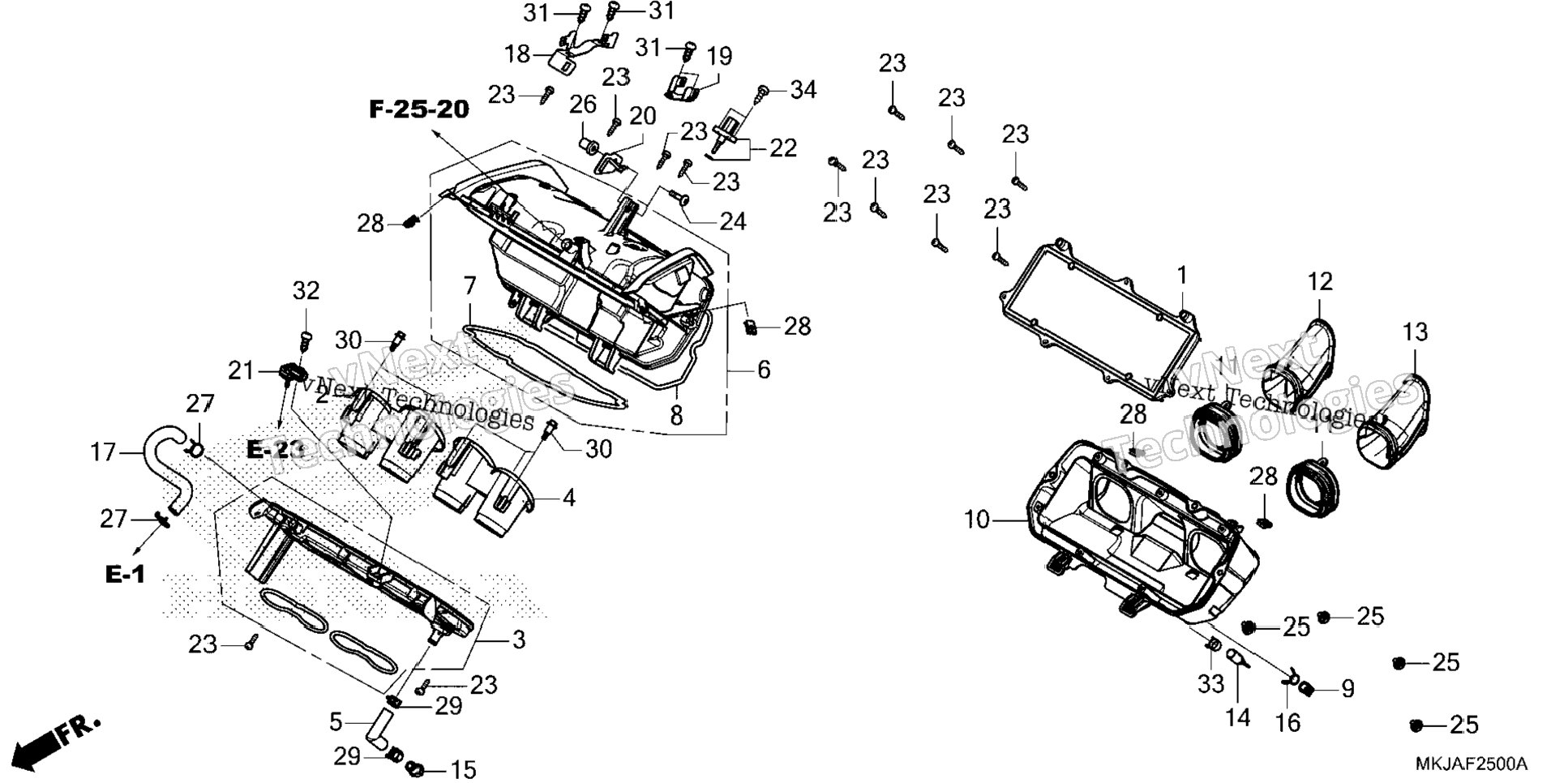

| 1 | 17210-MKJ-D00 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 2 | 17215-MKJ-D00 | FUNNEL, R. AIR | 1 шт. | — | |
|
| 3 | 17220-MKJ-D00 | CASE, FR. AIR CLEANER | 1 шт. | — | |
|
| 4 | 17225-MKJ-D00 | FUNNEL, L. AIR | 1 шт. | — | |
|
| 5 | 17227-MKJ-D00 | TUBE, DRAIN | 1 шт. | — | |
|
| 6 | 17230-MKJ-E50 | CASE, RR. A/CLNR | 1 шт. | — | |
|
| 7 | 17232-MKJ-D00 | SEAL A, RR. AIR CLEANER HOUSING | 1 шт. | — | |
|
| 8 | 17233-MKJ-D00 | SEAL B, RR. AIR CLEANER HOUSING | 1 шт. | — | |
|
| 9 | 17234-KCW-871 | TUBE, AIR CLEANER DRAIN | 1 шт. | — | |
|
| 10 | 17240-MKJ-D00 | LID, AIR CLEANER HOUSING | 1 шт. | — | |
|
| 11 | 17251-MKJ-D00 | JOINT, DUCT | 2 шт. | — | |
|
| 12 | 17261-MKJ-D00 | DUCT, R. AIR | 1 шт. | — | |
|
| 13 | 17262-MKJ-D00 | DUCT, L. AIR | 1 шт. | — | |
|
| 14 | 17358-MZ8-G20 | TUBE, DRAIN | 1 шт. | — | |
|
| 15 | 17370-382-870 | PLUG, BREATHER TUBE | 1 шт. | — | |
|
| 16 | 17371-174-670 | CLIP, BREATHER TUBE | 1 шт. | — | |
|
| 17 | 17554-MKJ-D00 | TUBE, ENGINE BREATHER | 1 шт. | — | |
|
| 18 | 32212-MKJ-E50 | STAY, HARNESS | 1 шт. | — | |
|
| 19 | 32213-MKJ-D00 | STAY, HARNESS (AIR CLEANER L.) | 1 шт. | — | |
|
| 20 | 32218-MKJ-D00 | CLAMP, HARNESS | 1 шт. | — | |
|
| 21 | 37830-MFP-A51 | SENSOR ASSY., MAP | 1 шт. | — | |
|
| 22 | 37880-KWW-C01 | SENSOR ASSY., AIR TEMPERATURE | 1 шт. | — | |
|
| 23 | 90105-MKJ-D00 | SCREW, TAPPING (4X20) (DELTA PT) | 13 шт. | — | |
|
| 24 | 90107-MKF-D40 | BOLT, SOCKET (6X25) | 1 шт. | — | |
|
| 25 | 90122-MJK-N20 | SCREW, SPECIAL (5X11) | 4 шт. | — | |
|
| 26 | 90301-HN8-000 | NUT, WELL (6MM) | 1 шт. | — | |
|
| 27 | 90646-657-000 | CLIP, AIR HOSE (16MM) | 2 шт. | — | |
|
| 28 | 90677-KAN-961 | NUT, CLIP (5MM) | 4 шт. | — | |
|
| 29 | 91406-MS8-000 | CLAMP, TUBE (D14.5) | 2 шт. | — | |
|
| 30 | 91508-MGP-D00 | SCREW, PAN (5MM) | 6 шт. | — | |
|
| 31 | 93903-25310 | SCREW, TAPPING (5X16) | 4 шт. | — | |
|
| 32 | 93903-25480 | SCREW, TAPPING (5X20) | 1 шт. | — | |
|
| 33 | 95002-41250-08 | CLAMP, TUBE (D12.5) | 1 шт. | — | |
|
| 34 | 93903-254J0 | SCREW, TAPPING (5X20) (Honda Code 3344546) | 2 шт. | — | |
|
