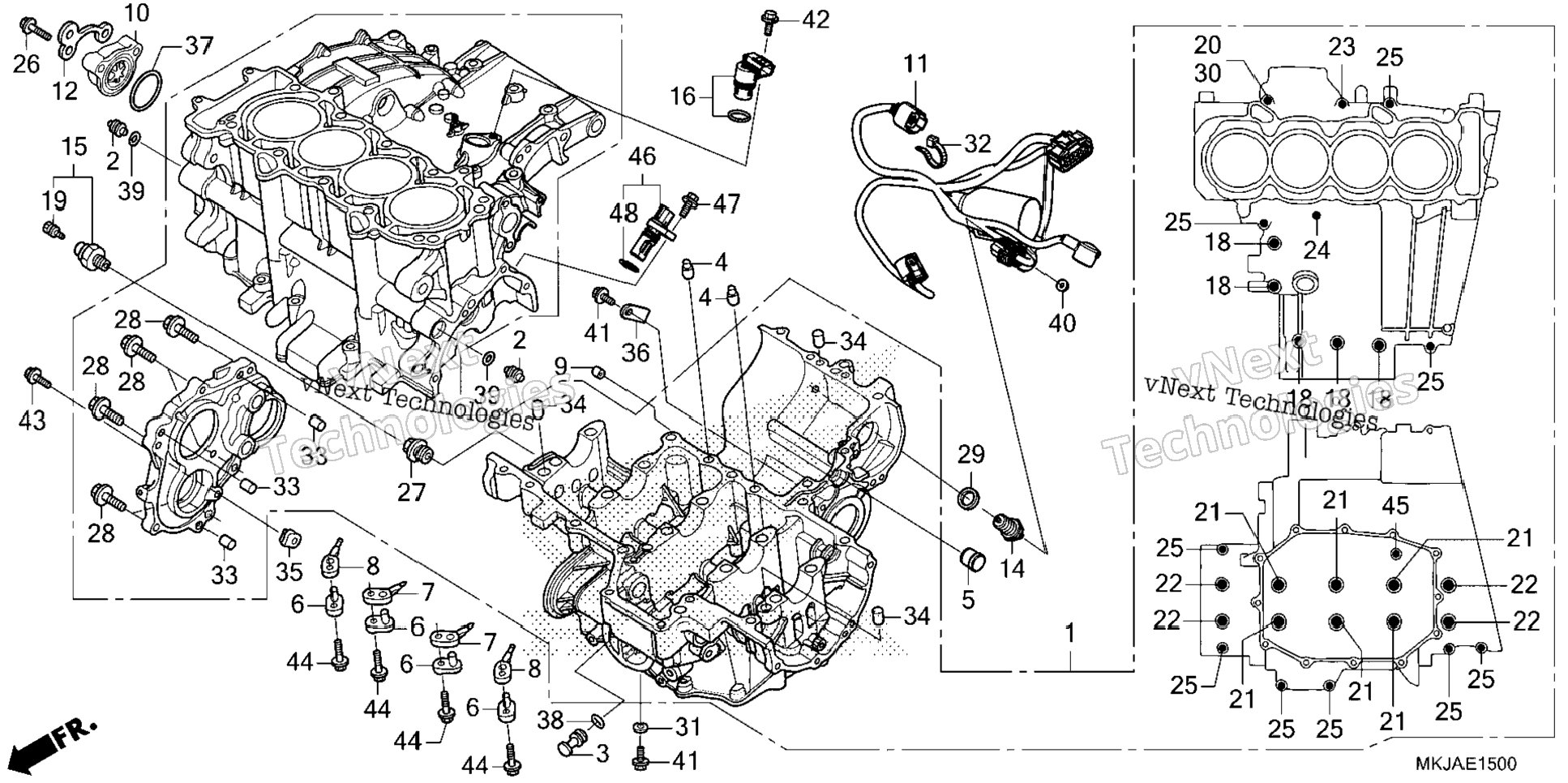

| 1 | 11000-MKJ-E50 | CRANKCASE SET | 1 шт. | — | |
|
| 2 | 11103-MEL-000 | PLUG, SEALING | 2 шт. | — | |
|
| 3 | 11104-MEL-000 | PLUG, OIL COOLER | 1 шт. | — | |
|
| 4 | 11105-MEL-000 | ORIFICE (1.6MM) | 2 шт. | — | |
|
| 5 | 11105-MKJ-D01 | PLUG, CRANKCASE | 1 шт. | — | |
|
| 6 | 11145-MEL-000 | BUSH, ORIFICE | 4 шт. | — | |
|
| 7 | 11146-MEL-000 | ORIFICE A (#100) | 2 шт. | — | |
|
| 8 | 11147-MEL-000 | ORIFICE B (#100) | 2 шт. | — | |
|
| 9 | 11206-MEL-000 | ORIFICE (1.4MM) | 1 шт. | — | |
|
| 10 | 11360-MFN-D00 | FINDER, OIL LEVEL | 1 шт. | — | |
|
| 11 | 32101-MKJ-E50 | SUB-HARNESS, ENGINE | 1 шт. | — | |
|
| 12 | 32114-MFN-D00 | GUIDE, OIL PRESSURE SWITCH WIRE | 1 шт. | — | |
|
| 14 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 15 | 37240-P13-013 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 16 | 37700-MFL-761 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 18 | 90001-MFA-D00 | BOLT, FLANGE (8X55) | 5 шт. | — | |
|
| 19 | 90002-PA6-003 | BOLT-WASHER (4X8) (DENSO) | 1 шт. | — | |
|
| 20 | 90004-MFA-D00 | BOLT, SPECIAL (7X42.5) | 1 шт. | — | |
|
| 21 | 90015-MEL-003 | BOLT, FLANGE (9X105) | 6 шт. | — | |
|
| 22 | 90016-MEL-003 | BOLT, FLANGE (9X125) | 4 шт. | — | |
|
| 23 | 90017-MFA-D00 | BOLT, FLANGE (7X60) | 1 шт. | — | |
|
| 24 | 90018-MFA-D00 | BOLT, FLANGE (7X80) | 1 шт. | — | |
|
| 25 | 90019-MFA-D00 | BOLT, FLANGE (7X40) | 9 шт. | — | |
|
| 26 | 90028-GHB-690 | BOLT, FLANGE (6X28) (S-NSHF) | 2 шт. | — | |
|
| 27 | 90048-MFL-000 | BOLT, SEALING (22MM) | 1 шт. | — | |
|
| 28 | 90133-MEL-000 | BOLT, FLANGE (8X30) | 6 шт. | — | |
|
| 29 | 90443-MJ6-000 | WASHER, NEUTRAL | 1 шт. | — | |
|
| 30 | 90447-KE1-000 | WASHER, SEALING (7MM) | 1 шт. | — | |
|
| 31 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 32 | 90650-KV6-003 | BAND, WIRE (Honda Code 2687788) | 1 шт. | — | |
|
| 33 | 90701-MEL-000 | PIN, DOWEL (8X14) | 3 шт. | — | |
|
| 34 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 3 шт. | — | |
|
| 35 | 91011-MEL-000 | PLATE A, BEARING SETTING | 1 шт. | — | |
|
| 36 | 91012-MEL-000 | PLATE B, BEARING SETTING | 1 шт. | — | |
|
| 37 | 91301-MEE-003 | O-RING (32X1.7) | 1 шт. | — | |
|
| 38 | 91302-ZE9-000 | O-RING (11.8X2.4) | 1 шт. | — | |
|
| 38 | 91302-ZE9-003 | O-RING (11.8X2.4) | 1 шт. | — | |
|
| 39 | 91303-377-000 | O-RING (13.8X2.5) | 2 шт. | — | |
|
| 40 | 94050-04000 | NUT, FLANGE (4MM) | 1 шт. | — | |
|
| 41 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 42 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 1 шт. | — | |
|
| 43 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 1 шт. | — | |
|
| 44 | 95701-06025-00 | BOLT, FLANGE (6X25) | 4 шт. | — | |
|
| 45 | 95701-08040-00 | BOLT, FLANGE (8X40) | 1 шт. | — | |
|
| 46 | 37500-K26-G81 | SENSOR ASSY., CRANK | 1 шт. | — | |
|
| 46 | 37500-K26-G82 | SENSOR ASSY., CRANK | 1 шт. | — | |
|
| 47 | 90017-GHB-640 | BOLT, FLANGE (6X18) (NSHF) | 1 шт. | — | |
|
| 48 | 91333-PNC-006 | O-RING | 1 шт. | — | |
|
