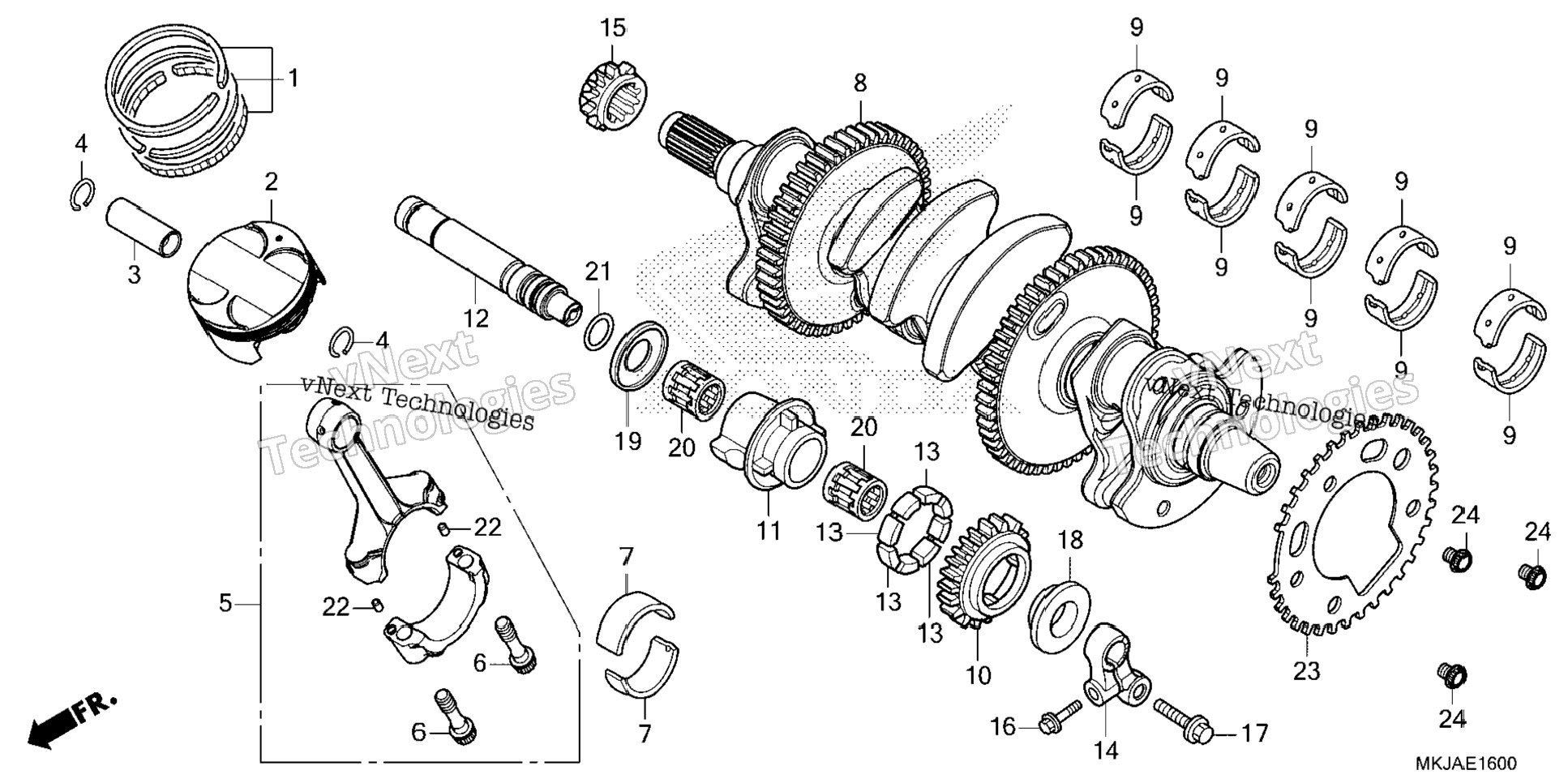

| 1 | 13031-MEL-010 | RING SET, PISTON (STD) | 4 шт. | — | |
|
| 2 | 13101-MKJ-D00 | PISTON | 4 шт. | — | |
|
| 3 | 13111-MCJ-750 | PIN, PISTON | 4 шт. | — | |
|
| 4 | 13112-MEL-000 | CLIP, PISTON PIN (17MM) | 8 шт. | — | |
|
| 5 | 13210-MKJ-D00 | ROD ASSY., CONNECTING | 4 шт. | — | |
|
| 6 | 13213-MEL-003 | BOLT, CONNECTING ROD | 8 шт. | — | |
|
| 7 | 13214-MEL-003 | BEARING A, CONNECTING ROD (BLUE) | 8 шт. | — | |
|
| 7 | 13215-MEL-003 | BEARING B, CONNECTING ROD (BLACK) | 8 шт. | — | |
|
| 7 | 13216-MEL-003 | BEARING C, CONNECTING ROD (BROWN) | 8 шт. | — | |
|
| 7 | 13217-MEL-003 | BEARING D, CONNECTING ROD (GREEN) | 8 шт. | — | |
|
| 7 | 13218-MEL-003 | BEARING E, CONNECTING ROD (YELLOW) | 8 шт. | — | |
|
| 8 | 13310-MKJ-E50 | CRANKSHAFT | 1 шт. | — | |
|
| 9 | 13314-MEL-003 | BEARING B, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 9 | 13315-MEL-003 | BEARING C, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 9 | 13316-MEL-003 | BEARING D, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 9 | 13317-MEL-003 | BEARING E, CRANKSHAFT (PINK) | 10 шт. | — | |
|
| 9 | 13318-MEL-003 | BEARING F, CRANKSHAFT (RED) | 10 шт. | — | |
|
| 10 | 13421-MEL-D20 | GEAR, BALANCER (26T) | 1 шт. | — | |
|
| 11 | 13430-MEL-000 | WEIGHT, BALANCER | 1 шт. | — | |
|
| 12 | 13431-MEL-000 | SHAFT, BALANCER | 1 шт. | — | |
|
| 13 | 13435-MAT-000 | RUBBER, DAMPER | 4 шт. | — | |
|
| 14 | 13436-MM5-000 | HOLDER, BALANCER SHAFT | 1 шт. | — | |
|
| 15 | 14312-MEL-000 | SPROCKET, TIMING (17T) | 1 шт. | — | |
|
| 16 | 90031-GHB-650 | BOLT, FLANGE (6X18) | 1 шт. | — | |
|
| 17 | 90036-GHB-680 | BOLT, FLANGE (8X25) | 1 шт. | — | |
|
| 18 | 90457-MAT-000 | WASHER A, BALANCER SIDE | 1 шт. | — | |
|
| 19 | 90458-MAT-000 | WASHER B, BALANCER SIDE | 1 шт. | — | |
|
| 20 | 91015-MEL-003 | BEARING B, NEEDLE (18X27X23.8) (BLUE) | 2 шт. | — | |
|
| 20 | 91016-MEL-003 | BEARING C, NEEDLE (18X27X23.8) (WHITE) | 2 шт. | — | |
|
| 20 | 91017-MEL-003 | BEARING D, NEEDLE (18X27X23.8) (GREEN) | 2 шт. | — | |
|
| 21 | 91302-377-000 | O-RING (15X2.5) (Honda Code 0386995) | 1 шт. | — | |
|
| 22 | 94303-04065 | PIN C, DOWEL (4X6.5) | 8 шт. | — | |
|
| 23 | 13621-MKJ-E50 | PLATE, PULSER | 1 шт. | — | |
|
| 24 | 90013-MKJ-E50 | BOLT, SPECIAL (8X9) | 3 шт. | — | |
|
