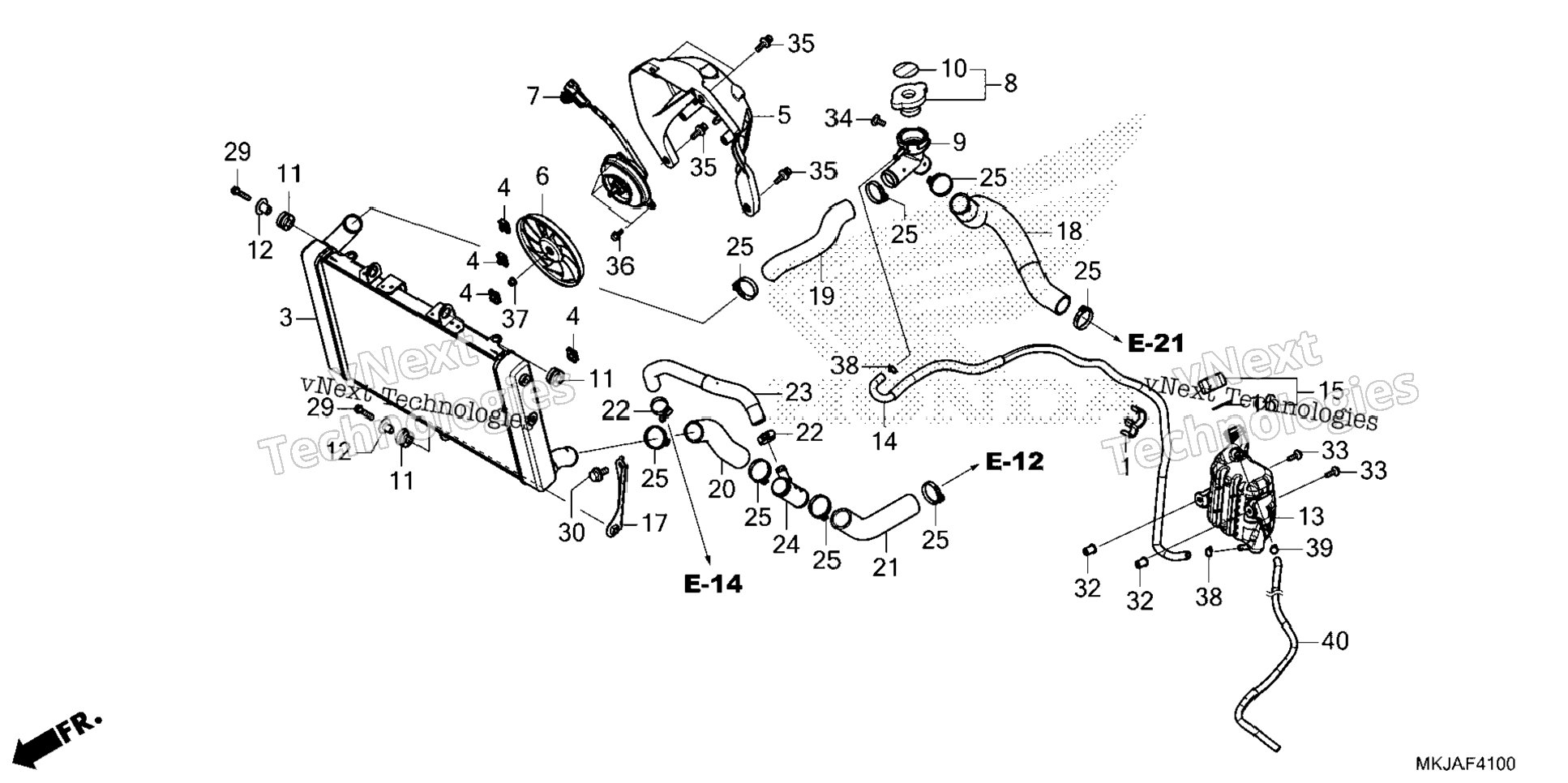

| 1 | 11152-KS4-003 | CLAMP, PIPE | 1 шт. | — | |
|
| 2 | 19010-MKJ-E51 | RADIATOR | 1 шт. | — | |
|
| 3 | 19014-KEA-003 | NUT, SETTING (6MM) | 4 шт. | — | |
|
| 4 | 19015-MKJ-D01 | SHROUD | 1 шт. | — | |
|
| 5 | 19020-MFG-D01 | FAN, COOLING | 1 шт. | — | |
|
| 6 | 19030-MKJ-D01 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 7 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 8 | 19039-MEL-003 | NECK, FILLER | 1 шт. | — | |
|
| 9 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 10 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 3 шт. | — | |
|
| 11 | 19052-MGH-640 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 12 | 19101-MKJ-D00 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 13 | 19102-MKJ-D00 | TUBE ASSY., RESERVE TANK | 1 шт. | — | |
|
| 14 | 19105-MG8-000 | CAP ASSY., RESERVE TANK | 1 шт. | — | |
|
| 15 | 19107-MG8-000 | GASKET, RESERVE TANK | 1 шт. | — | |
|
| 16 | 19115-MKJ-D00 | STAY, RADIATOR | 1 шт. | — | |
|
| 17 | 19501-MKJ-D00 | HOSE A, RADIATOR (UPPER) | 1 шт. | — | |
|
| 18 | 19502-MKJ-D00 | HOSE B, RADIATOR (UPPER) | 1 шт. | — | |
|
| 19 | 19503-MKJ-D00 | HOSE A, RADIATOR (LOWER) | 1 шт. | — | |
|
| 20 | 19504-MKJ-D00 | HOSE B, RADIATOR (LOWER) | 1 шт. | — | |
|
| 21 | 19505-KS6-700 | CLAMP, WATER HOSE (A) | 2 шт. | — | |
|
| 22 | 19505-MKJ-D00 | HOSE, OIL COOLER | 1 шт. | — | |
|
| 23 | 19511-MFN-D00 | JOINT, HOSE (THREE-WAY) | 1 шт. | — | |
|
| 24 | 19514-MKF-D41 | CLAMP, HOSE (D29.8) | 8 шт. | — | |
|
| 25 | 90021-GHB-680 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 26 | 90031-GHB-610 | BOLT, FLANGE (6X10) | 1 шт. | — | |
|
| 27 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 2 шт. | — | |
|
| 28 | 90112-MGS-D30 | SCREW, PAN (5X15) | 2 шт. | — | |
|
| 29 | 90118-MJK-N20 | SCREW, SPECIAL (6X14) | 1 шт. | — | |
|
| 30 | 90120-KCR-003 | BOLT-WASHER (6X16) | 4 шт. | — | |
|
| 31 | 90196-MBB-003 | BOLT, FLANGE (5X10) | 3 шт. | — | |
|
| 32 | 90315-MK3-003 | NUT, SERRATE (5MM) | 1 шт. | — | |
|
| 33 | 95002-02100 | CLIP, TUBE (B10) | 2 шт. | — | |
|
| 34 | 95002-50000 | CLIP, TUBE (C9) | 1 шт. | — | |
|
| 35 | 95005-50003-30M | BULK HOSE, VACUUM (5X3000) (5X180) | 1 шт. | — | |
|
