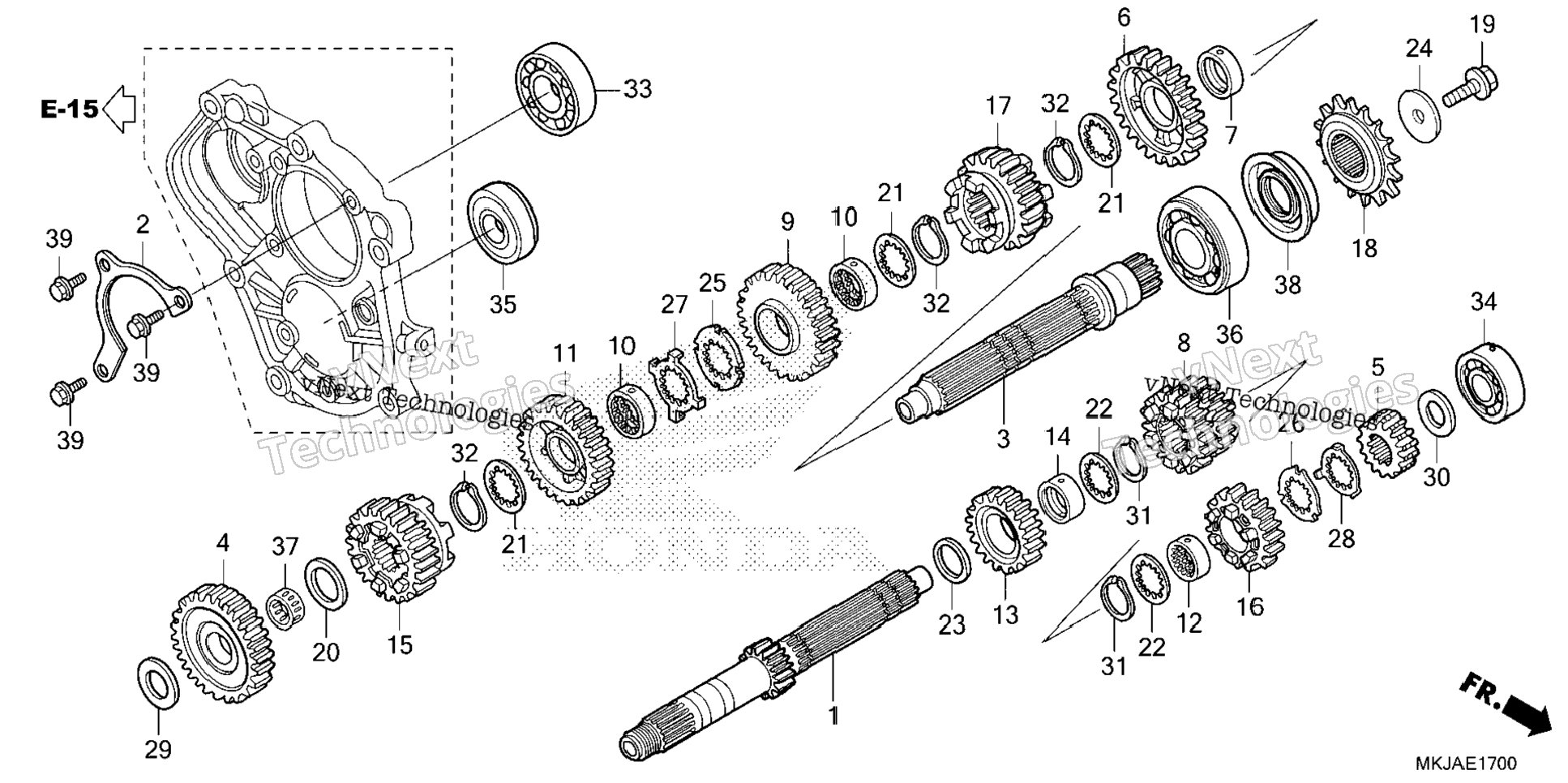

| 1 | 23211-MKJ-D00 | MAINSHAFT (13T) | 1 шт. | — | |
|
| 2 | 23212-MEL-D20 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 3 | 23220-MKJ-D00 | COUNTERSHAFT | 1 шт. | — | |
|
| 4 | 23421-MFN-D00 | GEAR, COUNTERSHAFT FIRST (33T) | 1 шт. | — | |
|
| 5 | 23431-MEL-000 | GEAR, MAINSHAFT SECOND (17T) | 1 шт. | — | |
|
| 6 | 23441-MFA-D00 | GEAR, COUNTERSHAFT SECOND (33T) | 1 шт. | — | |
|
| 7 | 23442-MCJ-000 | COLLAR (30X9.5) | 1 шт. | — | |
|
| 8 | 23451-MFA-D00 | GEAR, MAINSHAFT THIRD & FOURTH (19T/22T) | 1 шт. | — | |
|
| 9 | 23461-MFA-D00 | GEAR, COUNTERSHAFT THIRD (30T) | 1 шт. | — | |
|
| 10 | 23462-MAT-000 | COLLAR, SPLINE (30X11) | 2 шт. | — | |
|
| 11 | 23481-MFA-D00 | GEAR, COUNTERSHAFT FOURTH (30T) | 1 шт. | — | |
|
| 12 | 23482-MCJ-000 | COLLAR, SPLINE (28X16) | 1 шт. | — | |
|
| 13 | 23491-MFN-D00 | GEAR, MAINSHAFT FIFTH (23T) | 1 шт. | — | |
|
| 14 | 23495-MM5-000 | COLLAR (28X13) | 1 шт. | — | |
|
| 15 | 23501-MFN-D00 | GEAR, COUNTERSHAFT FIFTH (28T) | 1 шт. | — | |
|
| 16 | 23511-MFN-D00 | GEAR, MAINSHAFT SIXTH (26T) | 1 шт. | — | |
|
| 17 | 23521-MFN-D00 | GEAR, COUNTERSHAFT SIXTH (29T) | 1 шт. | — | |
|
| 18 | 23801-MW3-700 | SPROCKET, DRIVE (15T) | 1 шт. | — | |
|
| 19 | 90037-422-003 | BOLT, SPECIAL (10MM) | 1 шт. | — | |
|
| 20 | 90402-HA5-000 | WASHER, THRUST (24MM) | 1 шт. | — | |
|
| 21 | 90452-MAT-000 | WASHER, SPLINE (30X36X1.5) | 3 шт. | — | |
|
| 22 | 90452-MR7-000 | WASHER, SPLINE (28X34X1.5) | 2 шт. | — | |
|
| 23 | 90458-729-920 | WASHER, THRUST (28MM) | 1 шт. | — | |
|
| 24 | 90459-438-000 | WASHER (10.2MM) | 1 шт. | — | |
|
| 25 | 90463-MAT-000 | WASHER, SPLINE (30MM) | 1 шт. | — | |
|
| 26 | 90463-MCJ-000 | WASHER, SPLINE (28MM) | 1 шт. | — | |
|
| 27 | 90464-MAT-000 | WASHER, LOCK (30MM) | 1 шт. | — | |
|
| 28 | 90464-MCJ-000 | WASHER, LOCK (28MM) | 1 шт. | — | |
|
| 29 | 90469-759-000 | SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM) | 1 шт. | — | |
|
| 30 | 90554-MEL-000 | WASHER, THRUST (20MM) | 1 шт. | — | |
|
| 31 | 90603-MN4-000 | CIRCLIP (28MM) | 2 шт. | — | |
|
| 32 | 90604-MM5-000 | CIRCLIP (30MM) | 3 шт. | — | |
|
| 33 | 91001-MEL-003 | BEARING, RADIAL BALL (28X62X16) | 1 шт. | — | |
|
| 34 | 91002-MEL-003 | BEARING, SPECIAL (20X47X15.5) | 1 шт. | — | |
|
| 35 | 91003-MEL-003 | BEARING, SPECIAL (20X52X15) | 1 шт. | — | |
|
| 36 | 91004-MEL-003 | BEARING, SPECIAL BALL (35X72X17) | 1 шт. | — | |
|
| 37 | 91026-MEL-003 | BEARING, NEEDLE (24X28X10) | 1 шт. | — | |
|
| 38 | 91201-MEL-013 | OIL SEAL (34.8X53X8) | 1 шт. | — | |
|
| 39 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 3 шт. | — | |
|
