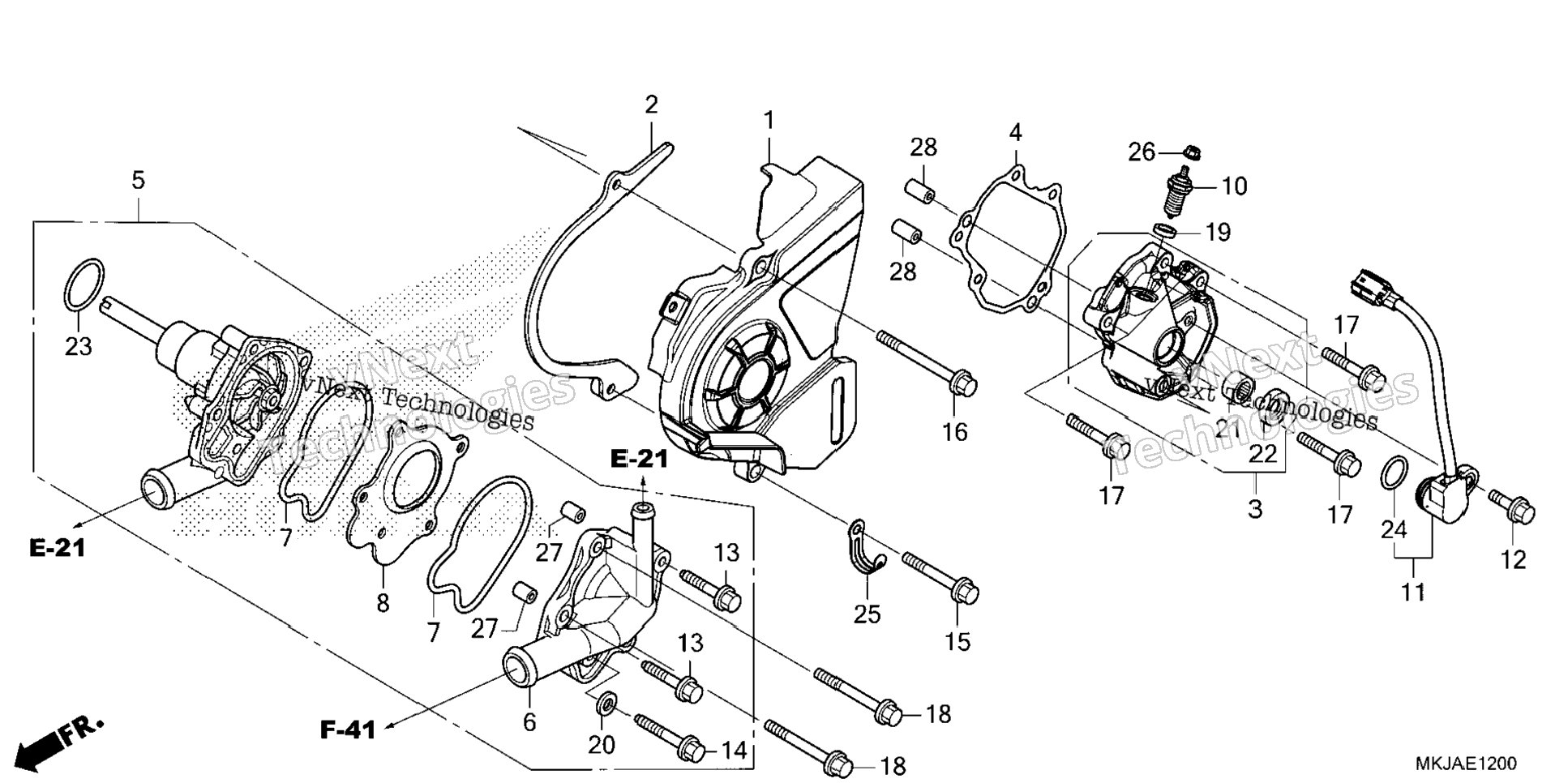

| 1 | 11350-MKJ-D00 | COVER, L. RR. | 1 шт. | — | |
|
| 2 | 11355-MKJ-D40 | PLATE, DRIVE CHAIN GUIDE | 1 шт. | — | |
|
| 3 | 11370-MKJ-D00 | COVER, CHANGE | 1 шт. | — | |
|
| 4 | 11372-MKJ-E50 | GASKET, CHANGE COVER | 1 шт. | — | |
|
| 5 | 19200-MKJ-306 | WATER PUMP | 1 шт. | — | |
|
| 6 | 19221-MEL-D20 | COVER, WATER PUMP | 1 шт. | — | |
|
| 7 | 19226-MEL-300 | GASKET, WATER PUMP | 2 шт. | — | |
|
| 8 | 19231-MEL-300 | PLATE, WATER PUMP | 1 шт. | — | |
|
| 9 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 10 | 38800-MKJ-D01 | SENSOR ASSY., ANGLE | 1 шт. | — | |
|
| 11 | 90011-MKJ-D00 | BOLT, KNOCK (6MM) | 1 шт. | — | |
|
| 12 | 90016-MKJ-E50 | BOLT (6X25) (CT200) | 2 шт. | — | |
|
| 13 | 90017-MKJ-E50 | BOLT (6X32) (CT200) | 1 шт. | — | |
|
| 14 | 90023-GHB-740 | BOLT, FLANGE (6X40) | 1 шт. | — | |
|
| 15 | 90023-GHB-810 | BOLT, FLANGE (6X75) | 1 шт. | — | |
|
| 16 | 90028-GHB-690 | BOLT, FLANGE (6X28) (S-NSHF) | 4 шт. | — | |
|
| 17 | 90028-GHB-750 | BOLT, FLANGE (6X45) (S-NSHF) | 2 шт. | — | |
|
| 18 | 90443-MJ6-000 | WASHER, NEUTRAL | 1 шт. | — | |
|
| 19 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 20 | 91101-121-691 | BEARING, NEEDLE (14MM) (TOYO) | 1 шт. | — | |
|
| 21 | 91203-KK3-830 | OIL SEAL (14X22X5) | 1 шт. | — | |
|
| 22 | 91302-MB0-013 | O-RING (32.95X2.62) (ARAI) | 1 шт. | — | |
|
| 23 | 91310-MGE-D01 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 24 | 91410-MGY-640 | CLIP, HARNESS (4X50) | 1 шт. | — | |
|
| 25 | 94050-04000 | NUT, FLANGE (4MM) | 1 шт. | — | |
|
| 26 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 27 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 2 шт. | — | |
|
