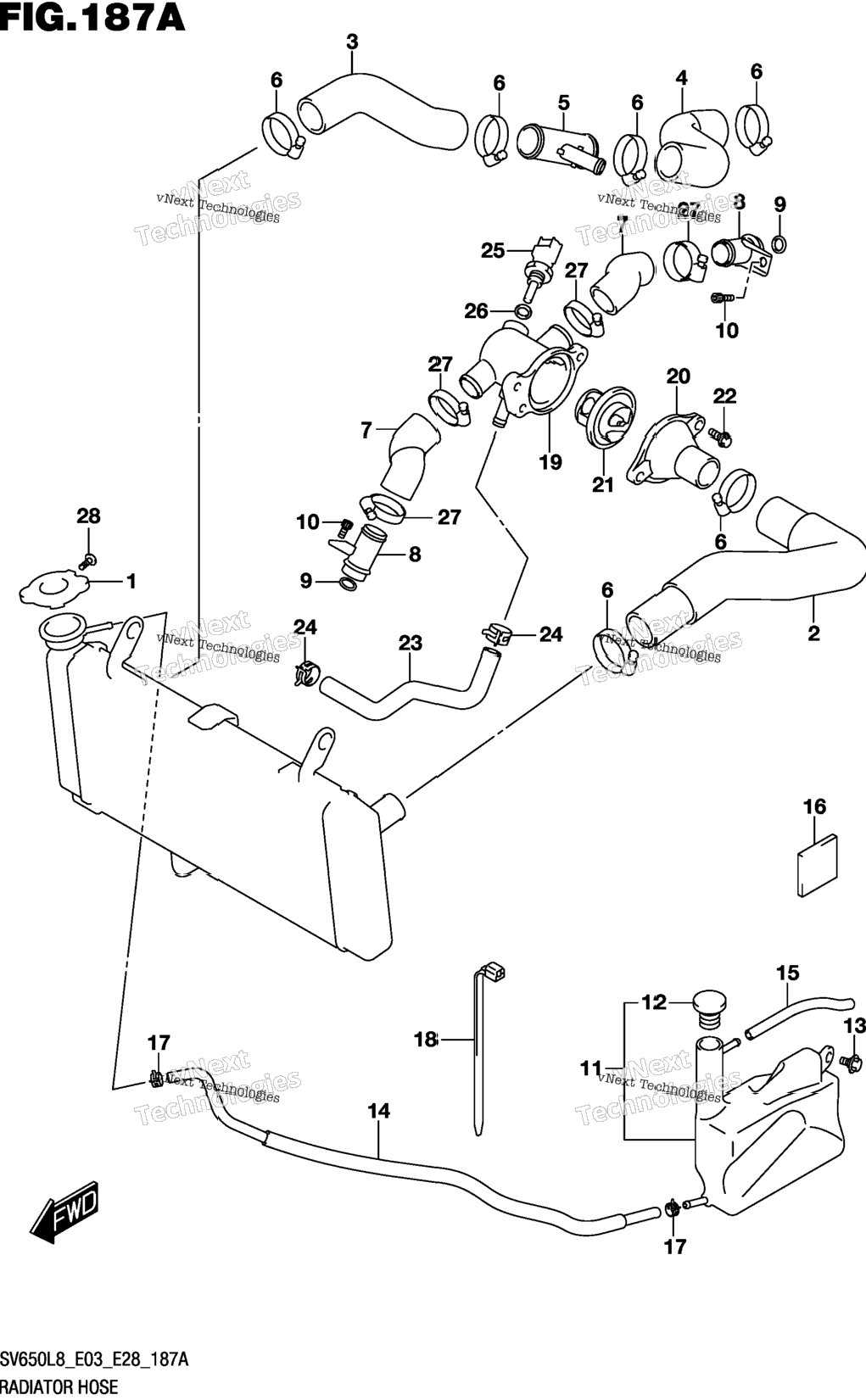

| 1 | 17730-08D10 | CAP,RADIATOR (1.1) | 1 шт. | — | |
|
| 2 | 17851-44H00 | HOSE,RADIATOR INLET | 1 шт. | — | |
|
| 3 | 17852-44H00 | HOSE,RADIATOR OUTLET NO.1 | 1 шт. | — | |
|
| 4 | 17854-18K00 | HOSE,RADIATOR OUTLET NO.2 | 1 шт. | — | |
|
| 5 | 17881-18K00 | PIPE,WATER HOSE THREE WAY | 1 шт. | — | |
|
| 6 | 09402-35501 | CLAMP | 6 шт. | — | |
|
| 7 | 17853-19F00 | HOSE, CONNECTOR INLET | 2 шт. | — | |
|
| 8 | 17890-06G20 | UNION,CONNECTOR HOSE | 2 шт. | — | |
|
| 9 | 09280-18008 | O RING (D:3.2,ID:17.8) | 2 шт. | — | |
|
| 10 | 07130-0612A | BOLT | 2 шт. | — | |
|
| 11 | 17910-18K00 | TANK ASSY,RESERVOIR | 0 шт. | — | |
|
| 12 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 13 | 09111-06083 | BOLT (6X12) | 0 шт. | — | |
|
| 14 | 17981-44H00 | HOSE,RSVR TANK INLET | 1 шт. | — | |
|
| 15 | 09352-50901-600 | HOSE (5X9X600) L:600->180 | 1 шт. | — | |
|
| 16 | 63191-25C00 | CUSHION, RESERVOIR TANK CUT AS REQUIRED | 1 шт. | — | |
|
| 17 | 09401-08411 | CLIP (ID:8.6) | 2 шт. | — | |
|
| 18 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
| 19 | 17662-02F11 | CONNECTOR,THERMOSTAT,INLET | 1 шт. | — | |
|
| 20 | 17663-17G00 | CAP, THERMOSTAT CONNECTOR | 1 шт. | — | |
|
| 21 | 17670-06G60 | THERMOSTAT, WATER | 1 шт. | — | |
|
| 22 | 01547-0616A | BOLT | 2 шт. | — | |
|
| 23 | 17856-44H00 | HOSE, CONNECTOR TO WATER PUMP | 1 шт. | — | |
|
| 24 | 09401-12414 | CLAMP | 2 шт. | — | |
|
| 25 | 13650-49X00 | SENSOR,TEMP | 1 шт. | — | |
|
| 26 | 09168-12017 | GASKET (12X17X1) | 1 шт. | — | |
|
| 27 | 09402-28513 | CLAMP | 4 шт. | — | |
|
| 28 | 17733-03D10 | SCREW RADIATOR CAP | 1 шт. | — | |
|
