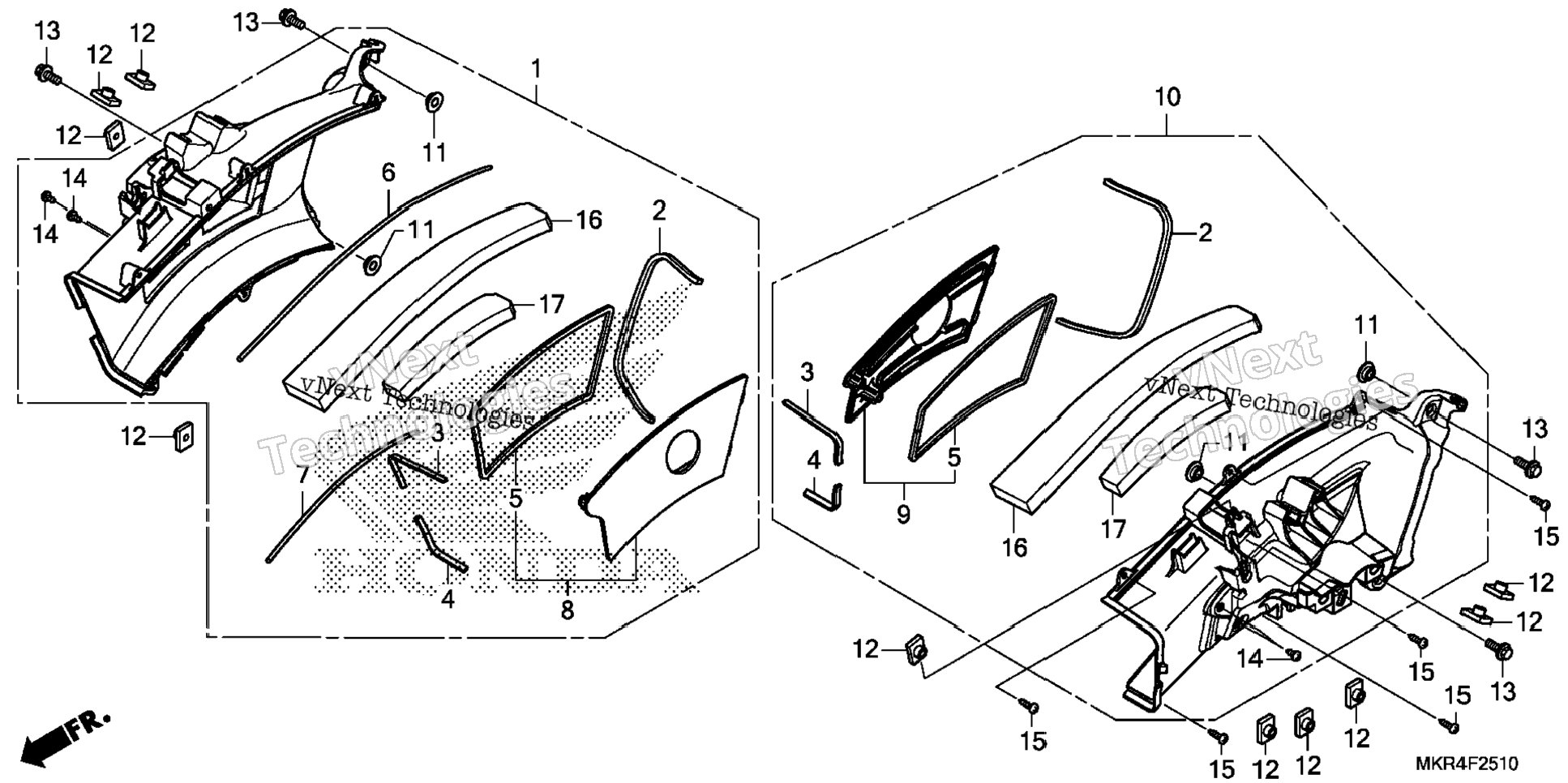

| 1 | 17310-MKR-A30 | DUCT, R. AIR IN. | 1 шт. | — | |
|
| 2 | 17311-MKR-D10 | SEAL B, AIR IN. DUCT | 2 шт. | — | |
|
| 3 | 17312-MKR-D10 | SEAL C, AIR IN. DUCT | 2 шт. | — | |
|
| 4 | 17313-MKR-D10 | SEAL D, AIR IN. DUCT | 2 шт. | — | |
|
| 5 | 17314-MKR-D10 | SEAL E, AIR IN. DUCT | 2 шт. | — | |
|
| 6 | 17315-MKR-D10 | SEAL F, AIR IN. DUCT | 1 шт. | — | |
|
| 7 | 17316-MKR-D10 | SEAL G, AIR IN. DUCT | 1 шт. | — | |
|
| 8 | 17318-MKR-A30 | COVER, R. IN. DUCT (INNER) | 1 шт. | — | |
|
| 9 | 17319-MKR-A30 | COVER, L. IN. DUCT (INNER) | 1 шт. | — | |
|
| 10 | 17320-MKR-A30 | DUCT, L. AIR IN. | 1 шт. | — | |
|
| 11 | 17331-MKR-D10 | COLLAR, IN. DUCT | 4 шт. | — | |
|
| 12 | 61304-162-013 | NUT, HEADLIGHT SETTING | 10 шт. | — | |
|
| 13 | 90026-GHB-650 | BOLT, FLANGE (6X18) | 4 шт. | — | |
|
| 14 | 90114-MJK-N20 | SCREW, TAPPING (4X10) | 4 шт. | — | |
|
| 15 | 93903-24480 | SCREW, TAPPING (4X16) | 6 шт. | — | |
|
| 16 | 17328-MKR-A30 | MAT A, IN. DUCT | 2 шт. | — | |
|
| 17 | 17329-MKR-A30 | MAT B, IN. DUCT | 2 шт. | — | |
|
