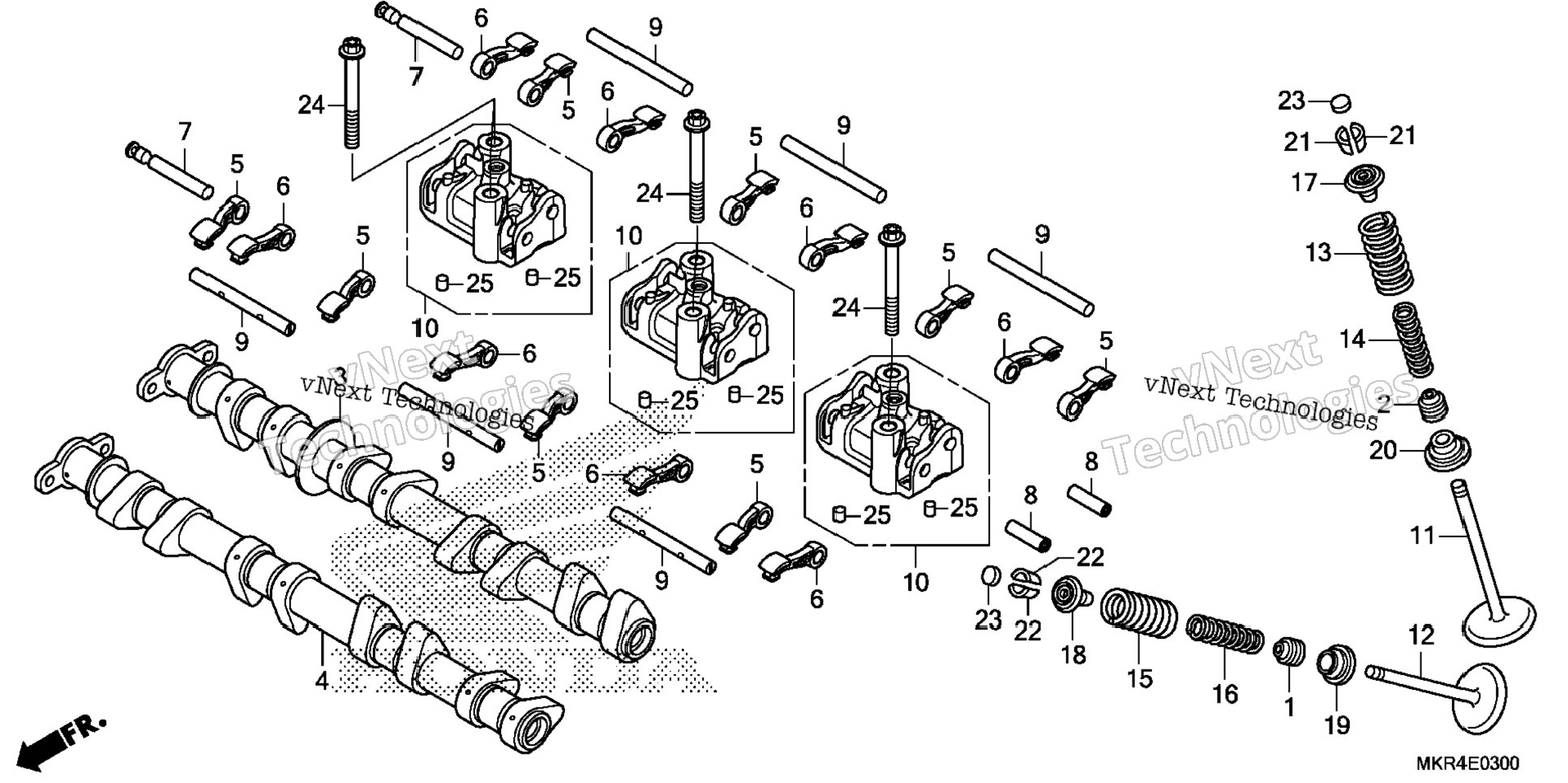

| 1 | 12208-MKR-D11 | SEAL, VALVE STEM | 8 шт. | — | |
|
| 2 | 12209-GB4-682 | SEAL, VALVE STEM (ARAI) | 8 шт. | — | |
|
| 3 | 14110-MKR-D10 | CAMSHAFT, IN. | 1 шт. | — | |
|
| 4 | 14210-MKR-D10 | CAMSHAFT, EX. | 1 шт. | — | |
|
| 5 | 14421-MKR-D10 | ARM A, ROCKER | 8 шт. | — | |
|
| 6 | 14422-MKR-D10 | ARM B, ROCKER | 8 шт. | — | |
|
| 7 | 14452-MKR-D10 | SHAFT, R. ROCKER ARM | 2 шт. | — | |
|
| 8 | 14453-MKR-D10 | SHAFT, L. ROCKER ARM | 2 шт. | — | |
|
| 9 | 14454-MKR-D10 | SHAFT, CENTER ROCKER ARM | 6 шт. | — | |
|
| 10 | 14460-MKR-D10 | HOLDER, ROCKER ARM | 3 шт. | — | |
|
| 11 | 14711-MKR-D10 | VALVE, IN. | 8 шт. | — | |
|
| 12 | 14721-MKR-D10 | VALVE, EX. | 8 шт. | — | |
|
| 13 | 14751-MKR-D11 | SPRING, IN. VALVE (OUTER) | 8 шт. | — | |
|
| 14 | 14752-MKR-D11 | SPRING, IN. VALVE (INNER) | 8 шт. | — | |
|
| 15 | 14761-MKR-D11 | SPRING, EX. VALVE (OUTER) | 8 шт. | — | |
|
| 16 | 14762-MKR-D11 | SPRING, EX. VALVE (INNER) | 8 шт. | — | |
|
| 17 | 14771-MKR-D10 | RETAINER, IN. VALVE SPRING | 8 шт. | — | |
|
| 18 | 14772-MKR-D10 | RETAINER, EX. VALVE SPRING | 8 шт. | — | |
|
| 19 | 14775-MKR-D10 | SEAT, EX. VALVE SPRING | 8 шт. | — | |
|
| 20 | 14777-MKR-D10 | SEAT, IN. VALVE SPRING | 8 шт. | — | |
|
| 21 | 14781-KRN-A61 | COTTER, VALVE | 16 шт. | — | |
|
| 22 | 14781-ML0-720 | COTTER, VALVE | 16 шт. | — | |
|
| 23 | 14901-KT7-013 | SHIM, TAPPET (1.200) (Honda Code 4064283) | 16 шт. | — | |
|
| 23 | 14902-KT7-013 | SHIM, TAPPET (1.225) (Honda Code 4105565) | 16 шт. | — | |
|
| 23 | 14903-KT7-013 | SHIM, TAPPET (1.250) (Honda Code 4105573) | 16 шт. | — | |
|
| 23 | 14904-KT7-013 | SHIM, TAPPET (1.275) (Honda Code 4105581) | 16 шт. | — | |
|
| 23 | 14905-KT7-013 | SHIM, TAPPET (1.300) (Honda Code 4105599) | 16 шт. | — | |
|
| 23 | 14906-KT7-013 | SHIM, TAPPET (1.325) (Honda Code 4105607) | 16 шт. | — | |
|
| 23 | 14907-KT7-013 | SHIM, TAPPET (1.350) (Honda Code 4105615) | 16 шт. | — | |
|
| 23 | 14908-KT7-013 | SHIM, TAPPET (1.375) (Honda Code 4105623) | 16 шт. | — | |
|
| 23 | 14909-KT7-013 | SHIM, TAPPET (1.400) (Honda Code 4105631) | 16 шт. | — | |
|
| 23 | 14910-KT7-013 | SHIM, TAPPET (1.425) (Honda Code 4105649) | 16 шт. | — | |
|
| 23 | 14911-KT7-013 | SHIM, TAPPET (1.450) (Honda Code 4105656) | 16 шт. | — | |
|
| 23 | 14912-KT7-013 | SHIM, TAPPET (1.475) (Honda Code 4105664) | 16 шт. | — | |
|
| 23 | 14913-KT7-013 | SHIM, TAPPET (1.500) (Honda Code 4105672) | 16 шт. | — | |
|
| 23 | 14914-KT7-013 | SHIM, TAPPET (1.525) (Honda Code 4105680) | 16 шт. | — | |
|
| 23 | 14915-KT7-013 | SHIM, TAPPET (1.550) (Honda Code 4105698) | 16 шт. | — | |
|
| 23 | 14916-KT7-013 | SHIM, TAPPET (1.575) (Honda Code 4105706) | 16 шт. | — | |
|
| 23 | 14917-KT7-013 | SHIM, TAPPET (1.600) (Honda Code 4105714) | 16 шт. | — | |
|
| 23 | 14918-KT7-013 | SHIM, TAPPET (1.625) (Honda Code 4105722) | 16 шт. | — | |
|
| 23 | 14919-KT7-013 | SHIM, TAPPET (1.650) (Honda Code 4105730) | 16 шт. | — | |
|
| 23 | 14920-KT7-013 | SHIM, TAPPET (1.675) (Honda Code 4105748) | 16 шт. | — | |
|
| 23 | 14921-KT7-013 | SHIM, TAPPET (1.700) (Honda Code 4105755) | 16 шт. | — | |
|
| 23 | 14922-KT7-013 | SHIM, TAPPET (1.725) (Honda Code 4105763) | 16 шт. | — | |
|
| 23 | 14923-KT7-013 | SHIM, TAPPET (1.750) (Honda Code 4105771) | 16 шт. | — | |
|
| 23 | 14924-KT7-013 | SHIM, TAPPET (1.775) (Honda Code 4105789) | 16 шт. | — | |
|
| 23 | 14925-KT7-013 | SHIM, TAPPET (1.800) (Honda Code 4105797) | 16 шт. | — | |
|
| 23 | 14926-KT7-013 | SHIM, TAPPET (1.825) (Honda Code 4105805) | 16 шт. | — | |
|
| 23 | 14927-KT7-013 | SHIM, TAPPET (1.850) (Honda Code 4105813) | 16 шт. | — | |
|
| 23 | 14928-KT7-013 | SHIM, TAPPET (1.875) (Honda Code 4105821) | 16 шт. | — | |
|
| 23 | 14929-KT7-013 | SHIM, TAPPET (1.900) (Honda Code 4105839) | 16 шт. | — | |
|
| 23 | 14930-KT7-013 | SHIM, TAPPET (1.925) (Honda Code 4105847) | 16 шт. | — | |
|
| 23 | 14931-KT7-013 | SHIM, TAPPET (1.950) (Honda Code 4105854) | 16 шт. | — | |
|
| 23 | 14932-KT7-013 | SHIM, TAPPET (1.975) (Honda Code 4105862) | 16 шт. | — | |
|
| 23 | 14933-KT7-013 | SHIM, TAPPET (2.000) (Honda Code 4105870) | 16 шт. | — | |
|
| 23 | 14934-KT7-013 | SHIM, TAPPET (2.025) (Honda Code 4105888) | 16 шт. | — | |
|
| 23 | 14935-KT7-013 | SHIM, TAPPET (2.050) (Honda Code 4105896) | 16 шт. | — | |
|
| 23 | 14936-KT7-013 | SHIM, TAPPET (2.075) (Honda Code 4105904) | 16 шт. | — | |
|
| 23 | 14937-KT7-013 | SHIM, TAPPET (2.100) (Honda Code 4105912) | 16 шт. | — | |
|
| 23 | 14938-KT7-013 | SHIM, TAPPET (2.125) (Honda Code 4105920) | 16 шт. | — | |
|
| 23 | 14939-KT7-013 | SHIM, TAPPET (2.150) (Honda Code 4105938) | 16 шт. | — | |
|
| 23 | 14940-KT7-013 | SHIM, TAPPET (2.175) (Honda Code 4105946) | 16 шт. | — | |
|
| 23 | 14941-KT7-013 | SHIM, TAPPET (2.200) (Honda Code 4105953) | 16 шт. | — | |
|
| 23 | 14942-KT7-013 | SHIM, TAPPET (2.225) (Honda Code 4105961) | 16 шт. | — | |
|
| 23 | 14943-KT7-013 | SHIM, TAPPET (2.250) (Honda Code 4105979) | 16 шт. | — | |
|
| 23 | 14944-KT7-013 | SHIM, TAPPET (2.275) (Honda Code 4105987) | 16 шт. | — | |
|
| 23 | 14945-KT7-013 | SHIM, TAPPET (2.300) (Honda Code 4105995) | 16 шт. | — | |
|
| 23 | 14946-KT7-013 | SHIM, TAPPET (2.325) (Honda Code 4106001) | 16 шт. | — | |
|
| 23 | 14947-KT7-013 | SHIM, TAPPET (2.350) (Honda Code 4106019) | 16 шт. | — | |
|
| 23 | 14948-KT7-013 | SHIM, TAPPET (2.375) (Honda Code 4106027) | 16 шт. | — | |
|
| 23 | 14949-KT7-013 | SHIM, TAPPET (2.400) (Honda Code 4106035) | 16 шт. | — | |
|
| 23 | 14950-KT7-013 | SHIM, TAPPET (2.425) (Honda Code 4106043) | 16 шт. | — | |
|
| 23 | 14951-KT7-013 | SHIM, TAPPET (2.450) (Honda Code 4106050) | 16 шт. | — | |
|
| 23 | 14952-KT7-013 | SHIM, TAPPET (2.475) (Honda Code 4106068) | 16 шт. | — | |
|
| 23 | 14953-KT7-013 | SHIM, TAPPET (2.500) (Honda Code 4106076) | 16 шт. | — | |
|
| 23 | 14954-KT7-013 | SHIM, TAPPET (2.525) (Honda Code 4106084) | 16 шт. | — | |
|
| 23 | 14955-KT7-013 | SHIM, TAPPET (2.550) (Honda Code 4106092) | 16 шт. | — | |
|
| 23 | 14956-KT7-013 | SHIM, TAPPET (2.575) (Honda Code 4106100) | 16 шт. | — | |
|
| 23 | 14957-KT7-013 | SHIM, TAPPET (2.600) (Honda Code 4106118) | 16 шт. | — | |
|
| 23 | 14958-KT7-013 | SHIM, TAPPET (2.625) (Honda Code 4106126) | 16 шт. | — | |
|
| 23 | 14959-KT7-013 | SHIM, TAPPET (2.650) (Honda Code 4106134) | 16 шт. | — | |
|
| 23 | 14960-KT7-013 | SHIM, TAPPET (2.675) (Honda Code 4106142) | 16 шт. | — | |
|
| 23 | 14961-KT7-013 | SHIM, TAPPET (2.700) (Honda Code 4106159) | 16 шт. | — | |
|
| 23 | 14962-KT7-013 | SHIM, TAPPET (2.725) (Honda Code 4106167) | 16 шт. | — | |
|
| 23 | 14963-KT7-013 | SHIM, TAPPET (2.750) (Honda Code 4106175) | 16 шт. | — | |
|
| 23 | 14964-KT7-013 | SHIM, TAPPET (2.775) (Honda Code 4106183) | 16 шт. | — | |
|
| 23 | 14965-KT7-013 | SHIM, TAPPET (2.800) (Honda Code 4106191) | 16 шт. | — | |
|
| 24 | 90016-MKR-D10 | BOLT, FLANGE TORX (6X45) | 6 шт. | — | |
|
| 25 | 94302-04065 | PIN, DOWEL (4X65) | 6 шт. | — | |
|
