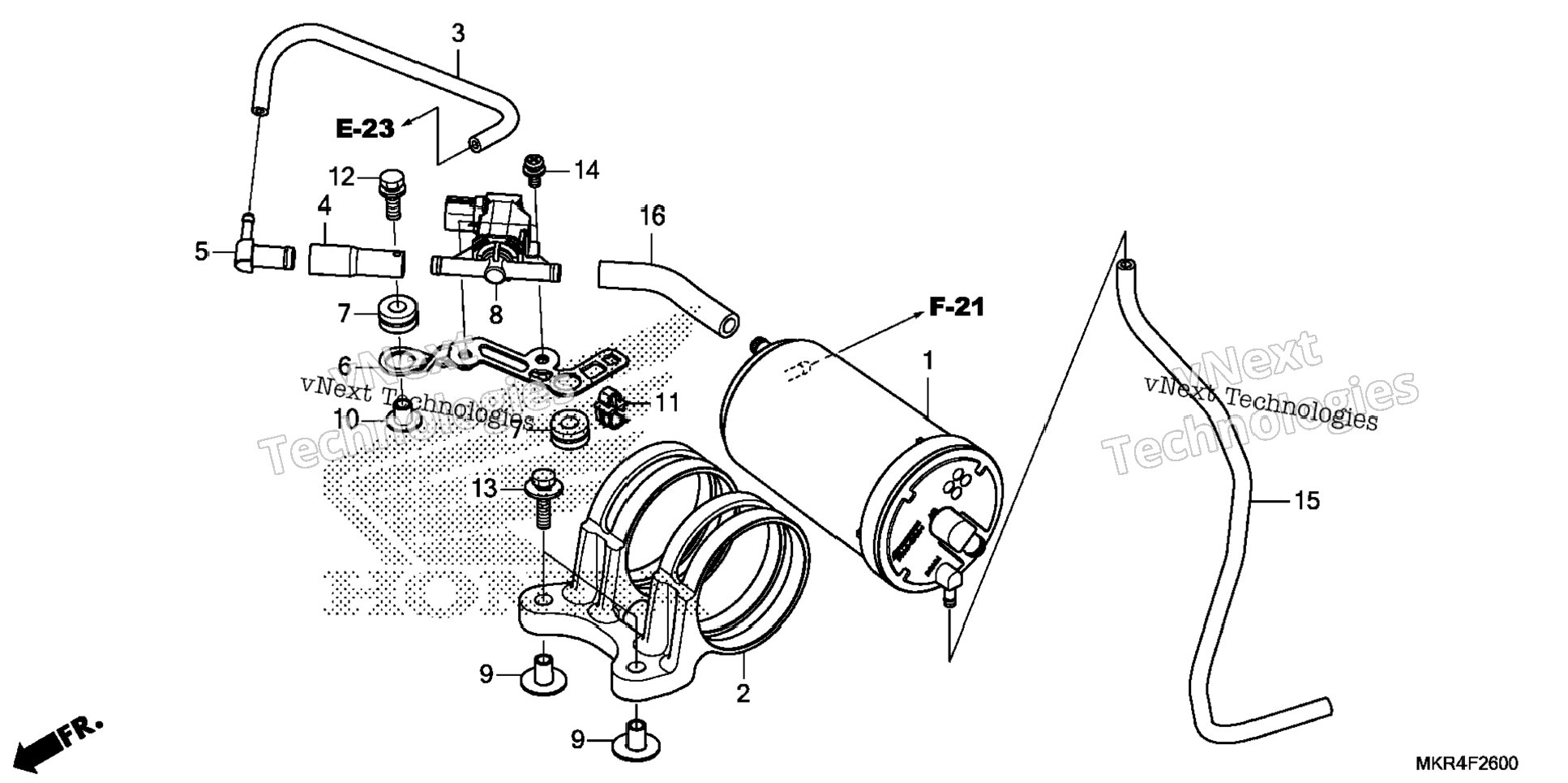

| 1 | 17410-MKR-D11 | CANISTER | 1 шт. | — | |
|
| 2 | 17411-MKR-D10 | RUBBER, CANISTER MOUNTING | 1 шт. | — | |
|
| 3 | 17413-MKR-D10 | TUBE, JOINT-FIVE WAY | 1 шт. | — | |
|
| 4 | 17414-MKR-D10 | TUBE (PURGE CONTROL VALVE-JOINT) | 1 шт. | — | |
|
| 5 | 17415-KZZ-900 | JOINT, TUBE | 1 шт. | — | |
|
| 6 | 17445-MKR-D10 | STAY, PURGE CONTROL SOLENOID VALVE | 1 шт. | — | |
|
| 7 | 18320-196-000 | RUBBER A, PROTECTOR | 2 шт. | — | |
|
| 8 | 36162-KZL-931 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 9 | 90501-425-000 | COLLAR (6.2X12) | 2 шт. | — | |
|
| 10 | 90522-KF0-000 | COLLAR, SIDE COVER SETTING | 1 шт. | — | |
|
| 11 | 90659-KG4-003 | CLAMP, WIRE (8MM) | 1 шт. | — | |
|
| 12 | 93401-06020-00 | BOLT-WASHER (6X20) | 1 шт. | — | |
|
| 13 | 93404-06028-08 | BOLT-WASHER (6X28) | 2 шт. | — | |
|
| 14 | 93892-05010-08 | SCREW-WASHER (5X10) | 2 шт. | — | |
|
| 15 | 95005-45001-20M | BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M) | 1 шт. | — | |
|
| 16 | 95005-750012-0M | BULK TUBE,TB75-1M | 1 шт. | — | |
|
