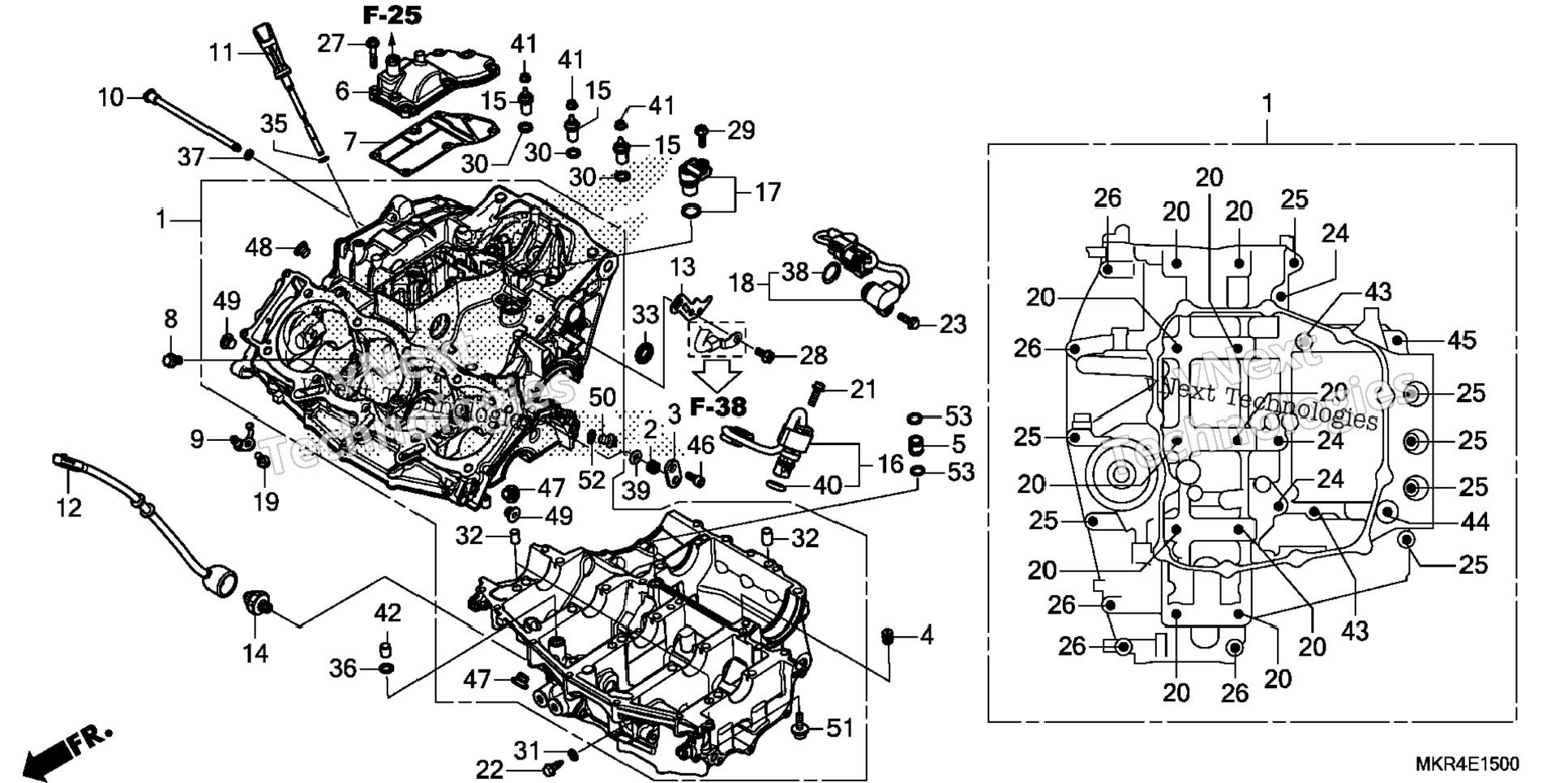

| 1 | 11000-MKR-D60 | CRANKCASE SET | 1 шт. | — | |
|
| 2 | 11202-MKR-D10 | COLLAR, SEALING | 1 шт. | — | |
|
| 3 | 11205-MKR-D10 | PLATE, SEALING COLLAR STOPPER | 1 шт. | — | |
|
| 4 | 11206-MKR-D10 | ORIFICE | 1 шт. | — | |
|
| 5 | 11207-MKR-D10 | COLLAR, ORIFICE | 1 шт. | — | |
|
| 6 | 11410-MKR-D10 | COVER, STARTER GEAR | 1 шт. | — | |
|
| 7 | 11415-MKR-D11 | GASKET, STARTER GEAR COVER | 1 шт. | — | |
|
| 8 | 15290-6C1-A01 | BOLT, OIL JET | 0 шт. | — | |
|
| 9 | 15330-MKR-D11 | JET, PISTON | 4 шт. | — | |
|
| 10 | 15350-MFL-000 | PIPE, TRANSMISSION OIL JET | 1 шт. | — | |
|
| 11 | 15750-MKR-D10 | DIPSTICK, OIL | 1 шт. | — | |
|
| 12 | 32101-MKR-D10 | SUB-HARNESS, ENGINE | 1 шт. | — | |
|
| 13 | 32154-MKR-D10 | STAY, STROKE SENSOR | 1 шт. | — | |
|
| 14 | 35500-MJ4-024 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 15 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 3 шт. | — | |
|
| 16 | 37510-MKR-D10 | SENSOR, CRANK | 1 шт. | — | |
|
| 17 | 37700-MJE-D01 | SENSOR ASSY., SPEED (TDK-EPC) | 1 шт. | — | |
|
| 18 | 38800-MKR-D11 | SENSOR ASSY., ANGLE | 1 шт. | — | |
|
| 19 | 90001-MJP-G50 | BOLT, FLANGE SOCKET (6X14) | 4 шт. | — | |
|
| 20 | 90001-MKR-D11 | BOLT, FLANGE (9X120) | 10 шт. | — | |
|
| 21 | 90002-MJP-G50 | BOLT, FLANGE SOCKET (6X18) | 1 шт. | — | |
|
| 22 | 90004-MKR-D10 | BOLT, SPECIAL (6X18) | 1 шт. | — | |
|
| 23 | 90011-MGE-D00 | BOLT, KNOCK (6MM) | 1 шт. | — | |
|
| 24 | 90017-MEL-000 | BOLT, FLANGE (7X60) | 3 шт. | — | |
|
| 25 | 90017-MFL-000 | BOLT, FLANGE (7X50) | 7 шт. | — | |
|
| 26 | 90019-MFA-D00 | BOLT, FLANGE (7X40) | 5 шт. | — | |
|
| 27 | 90027-GHB-700 | BOLT, FLANGE (6X30) | 7 шт. | — | |
|
| 28 | 90030-GHB-630 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 29 | 90031-GHB-650 | BOLT, FLANGE (6X18) | 1 шт. | — | |
|
| 30 | 90443-MJ6-000 | WASHER, NEUTRAL | 3 шт. | — | |
|
| 31 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 32 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 4 шт. | — | |
|
| 33 | 91203-KA4-771 | OIL SEAL (14X22X5) (NOK) | 1 шт. | — | |
|
| 35 | 91303-MJ0-003 | O-RING (6.5X2.2) (ARAI) | 1 шт. | — | |
|
| 36 | 91305-422-000 | O-RING (9.8X2.4) (Honda Code 0688986) | 1 шт. | — | |
|
| 37 | 91307-422-000 | O-RING (4.8X1.9) | 1 шт. | — | |
|
| 37 | 91313-MA6-005 | O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) | 1 шт. | — | |
|
| 38 | 91310-MGE-D01 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 39 | 91314-PC9-004 | O-RING (8.5X1.9) (NOK) | 1 шт. | — | |
|
| 40 | 91333-PNC-006 | O-RING | 1 шт. | — | |
|
| 41 | 94050-04000 | NUT, FLANGE (4MM) | 3 шт. | — | |
|
| 42 | 94301-10120 | PIN, DOWEL (10X12) | 1 шт. | — | |
|
| 43 | 95701-08055-00 | BOLT, FLANGE (8X55) | 2 шт. | — | |
|
| 44 | 95701-08080-00 | BOLT, FLANGE (8X80) | 1 шт. | — | |
|
| 45 | 95701-10060-00 | BOLT, FLANGE (10X60) | 1 шт. | — | |
|
| 46 | 96600-06014-00 | BOLT, SOCKET (6X14) | 1 шт. | — | |
|
| 47 | 90002-RGA-000 | BOLT, SEALING (12X8) | 2 шт. | — | |
|
| 48 | 90005-MAZ-000 | BOLT, SOCKET (10MM) | 1 шт. | — | |
|
| 49 | 90005-MJP-G80 | BOLT, SOCKET (10MM) | 2 шт. | — | |
|
| 50 | 90019-MAT-000 | BOLT, SEALING (8MM) | 1 шт. | — | |
|
| 51 | 90102-VK4-000 | BOLT, FLANGE SOCKET (6X20) | 0 шт. | — | |
|
| 52 | 90475-703-000 | WASHER C (8MM) | 1 шт. | — | |
|
| 53 | 91305-R7L-003 | O-RING (10.6X1.9) | 2 шт. | — | |
|
