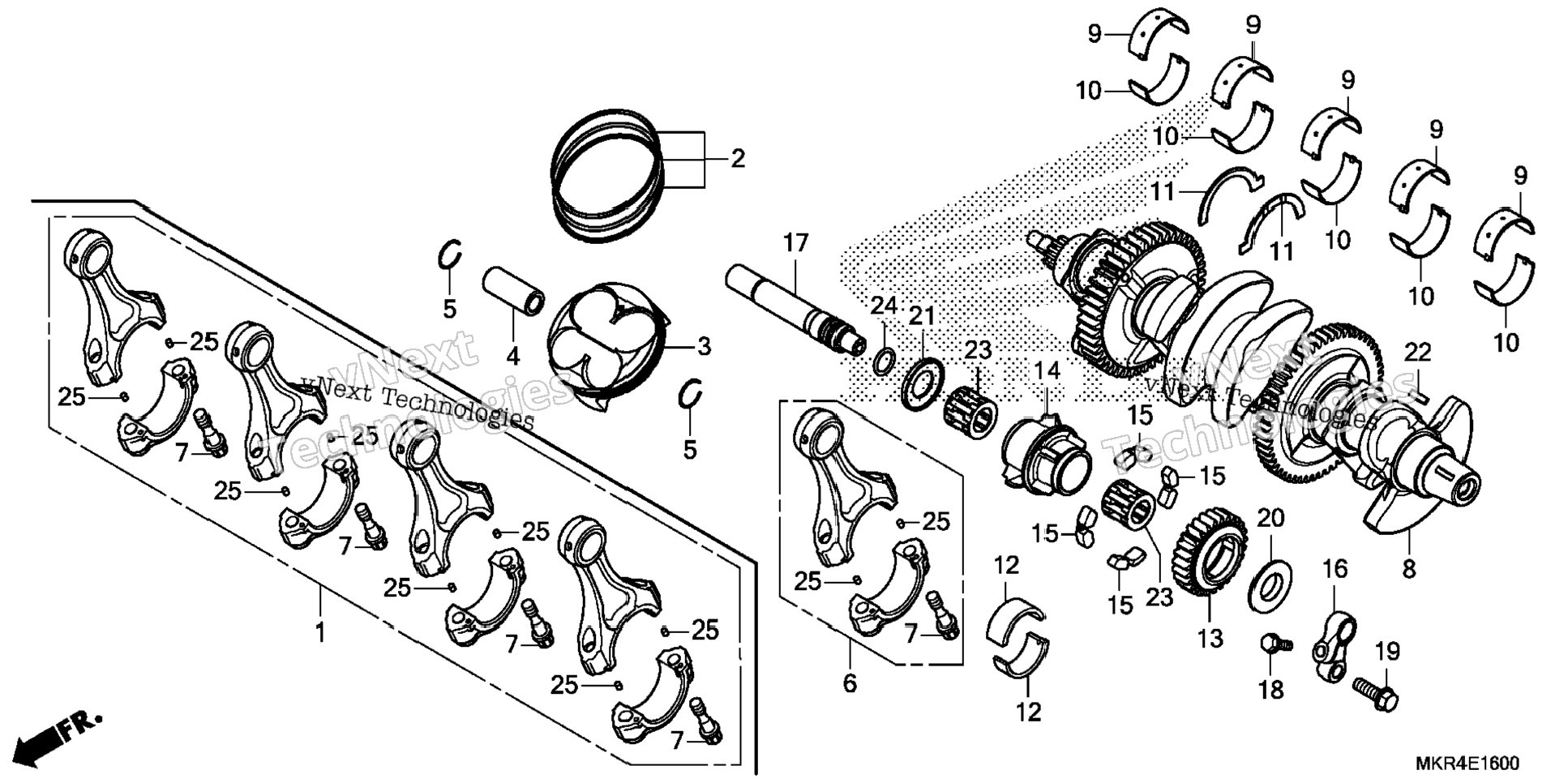

| 1 | 06130-MKR-D30 | ROD SET, CONNECTING | 1 шт. | — | |
|
| 2 | 13010-MKR-305 | RING SET, PISTON | 4 шт. | — | |
|
| 3 | 13101-MKR-D30 | PISTON | 4 шт. | — | |
|
| 4 | 13111-MKR-D10 | PIN, PISTON | 4 шт. | — | |
|
| 5 | 13112-MKR-D10 | CLIP, PISTON PIN (18MM) | 8 шт. | — | |
|
| 7 | 13213-MKR-D11 | BOLT, CONNECTING ROD | 8 шт. | — | |
|
| 8 | 13300-MKR-D60 | CRANKSHAFT | 1 шт. | — | |
|
| 9 | 13314-MKR-D11 | BEARING B, CRANKSHAFT (UPPER) (BROWN) | 5 шт. | — | |
|
| 9 | 13315-MKR-D11 | BEARING C, CRANKSHAFT (UPPER) (GREEN) | 5 шт. | — | |
|
| 9 | 13316-MKR-D11 | BEARING D, CRANKSHAFT (UPPER) (YELLOW) | 5 шт. | — | |
|
| 9 | 13317-MKR-D11 | BEARING E, CRANKSHAFT (UPPER) (PINK) | 5 шт. | — | |
|
| 9 | 13318-MKR-D11 | BEARING F, CRANKSHAFT (UPPER) (RED) | 5 шт. | — | |
|
| 10 | 13324-MKR-D11 | BEARING B, CRANKSHAFT (LOWER) (BROWN) | 5 шт. | — | |
|
| 10 | 13325-MKR-D11 | BEARING C, CRANKSHAFT (LOWER) (GREEN) | 5 шт. | — | |
|
| 10 | 13326-MKR-D11 | BEARING D, CRANKSHAFT (LOWER) (YELLOW) | 5 шт. | — | |
|
| 10 | 13327-MKR-D11 | BEARING E, CRANKSHAFT (LOWER) (PINK) | 5 шт. | — | |
|
| 10 | 13328-MKR-D11 | BEARING F, CRANKSHAFT (LOWER) (RED) | 5 шт. | — | |
|
| 11 | 13331-MKR-D11 | WASHER, THRUST | 2 шт. | — | |
|
| 12 | 13414-MKR-D11 | BEARING A, CONNECTING ROD (BLUE) | 8 шт. | — | |
|
| 12 | 13415-MKR-D11 | BEARING B, CONNECTING ROD (BLACK) | 8 шт. | — | |
|
| 12 | 13416-MKR-D11 | BEARING C, CONNECTING ROD (BROWN) | 8 шт. | — | |
|
| 12 | 13417-MKR-D11 | BEARING D, CONNECTING ROD (GREEN) | 8 шт. | — | |
|
| 12 | 13418-MKR-D11 | BEARING E, CONNECTING ROD (YELLOW) | 8 шт. | — | |
|
| 13 | 13421-MKR-D10 | GEAR, BALANCER (27T) | 1 шт. | — | |
|
| 14 | 13430-MKR-D10 | WEIGHT, BALANCER | 1 шт. | — | |
|
| 15 | 13435-MKR-D10 | RUBBER, DAMPER | 4 шт. | — | |
|
| 16 | 13436-MM5-000 | HOLDER, BALANCER SHAFT | 1 шт. | — | |
|
| 17 | 13440-MKF-D40 | SHAFT, BALANCER | 1 шт. | — | |
|
| 18 | 90031-GHB-650 | BOLT, FLANGE (6X18) | 1 шт. | — | |
|
| 19 | 90037-GHB-680 | BOLT, FLANGE (8X25) | 1 шт. | — | |
|
| 20 | 90457-MAT-000 | WASHER A, BALANCER SIDE | 1 шт. | — | |
|
| 21 | 90458-MAT-000 | WASHER B, BALANCER SIDE | 1 шт. | — | |
|
| 22 | 90701-HB6-010 | KEY, WOODRUFF (25X14X4) | 1 шт. | — | |
|
| 23 | 91015-MEL-003 | BEARING B, NEEDLE (18X27X23.8) (BLUE) | 2 шт. | — | |
|
| 23 | 91016-MEL-003 | BEARING C, NEEDLE (18X27X23.8) (WHITE) | 2 шт. | — | |
|
| 23 | 91017-MEL-003 | BEARING D, NEEDLE (18X27X23.8) (GREEN) | 2 шт. | — | |
|
| 24 | 91302-377-000 | O-RING (15X2.5) (Honda Code 0386995) | 1 шт. | — | |
|
| 25 | 94303-03050 | PIN, DOWEL (3X5) | 8 шт. | — | |
|
