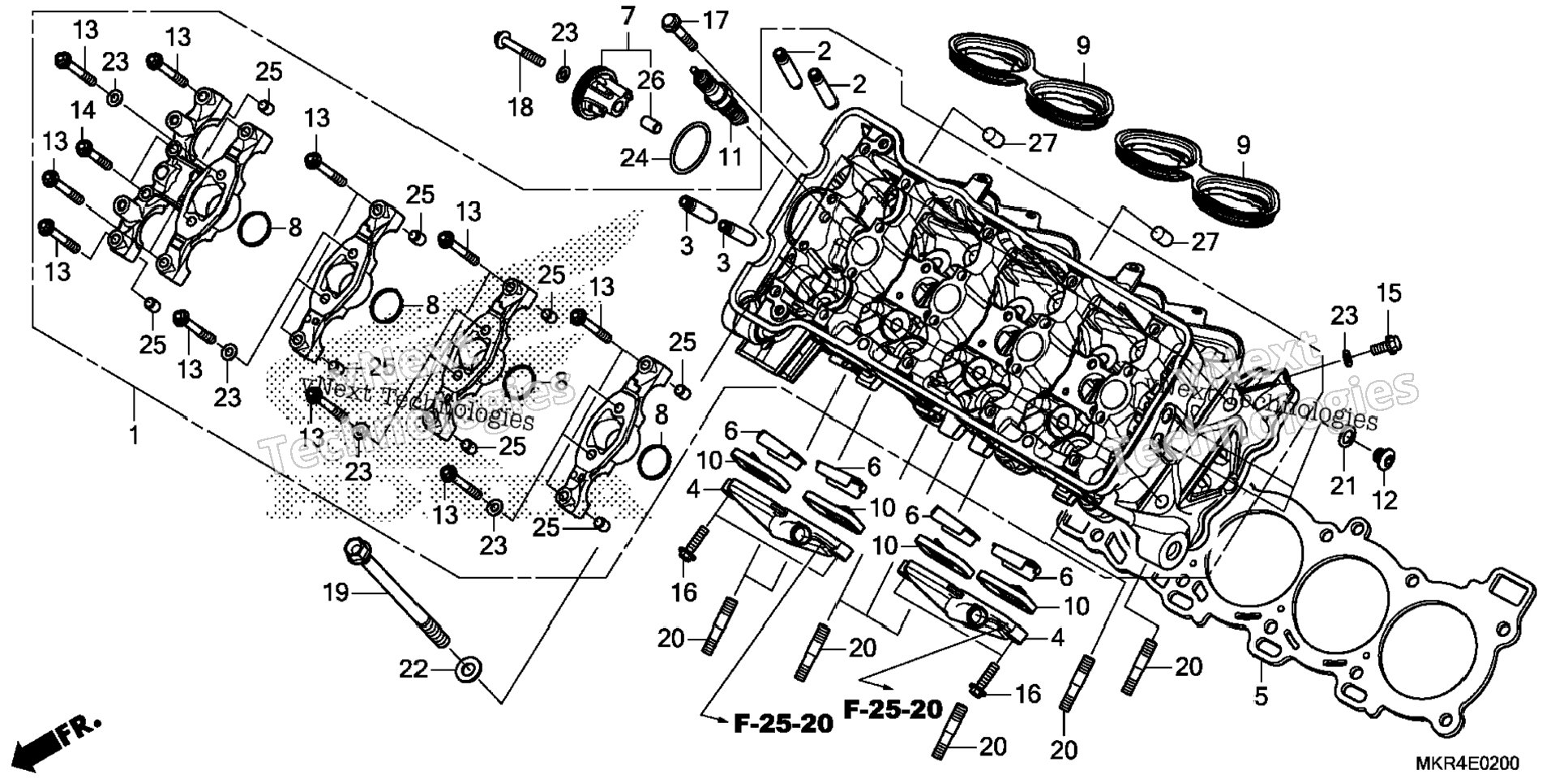

| 1 | 12010-MKR-D60 | CYLINDER HEAD ASSY. | 1 шт. | — | |
|
| 2 | 12204-MKR-305 | GUIDE, VALVE (OVER SIZE) | 8 шт. | — | |
|
| 3 | 12205-MKR-305 | GUIDE, EX. VALVE (OVER SIZE) | 8 шт. | — | |
|
| 4 | 12230-MKR-D10 | CASE, REED VALVE | 2 шт. | — | |
|
| 5 | 12251-MKR-D11 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 6 | 12341-MAT-750 | PLATE, PORT (AI) | 4 шт. | — | |
|
| 7 | 12350-MKR-D10 | CAP, CAM CHAIN CHAMBER | 1 шт. | — | |
|
| 8 | 12395-MKR-D10 | O-RING, PLUG HOLE | 4 шт. | — | |
|
| 9 | 16210-MKR-D10 | INSULATOR, THROTTLE BODY | 2 шт. | — | |
|
| 10 | 18601-MCJ-003 | VALVE, REED | 4 шт. | — | |
|
| 11 | 31911-MKF-D71 | SPARK PLUG (SILMAR10C9S) (NGK) | 4 шт. | — | |
|
| 12 | 90009-MGZ-J00 | BOLT, SOCKET (10MM) | 2 шт. | — | |
|
| 13 | 90011-MKR-D10 | BOLT, FLANGE TORX (6X45) | 18 шт. | — | |
|
| 14 | 90012-MKR-D10 | BOLT, FLANGE TORX (6X37) | 2 шт. | — | |
|
| 15 | 90027-GHB-630 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 16 | 90027-GHB-670 | BOLT, FLANGE (6X22) | 4 шт. | — | |
|
| 17 | 90027-GHB-710 | BOLT, FLANGE (6X32) | 2 шт. | — | |
|
| 18 | 90027-GHB-740 | BOLT, FLANGE (6X40) | 1 шт. | — | |
|
| 19 | 90034-MKR-D10 | BOLT, FLANGE (10X150.5) | 10 шт. | — | |
|
| 20 | 90035-MM5-000 | BOLT, STUD (8X24) | 8 шт. | — | |
|
| 21 | 90443-MB0-000 | WASHER, SEALING (10.2MM) | 2 шт. | — | |
|
| 22 | 90453-MKE-A00 | WASHER, PLAIN (10MM) | 10 шт. | — | |
|
| 23 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 10 шт. | — | |
|
| 24 | 91302-MKR-D11 | O-RING (36X2) | 1 шт. | — | |
|
| 25 | 94301-08100 | PIN A, DOWEL (8X10) | 8 шт. | — | |
|
| 26 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 1 шт. | — | |
|
| 27 | 94301-10160 | PIN, DOWEL (10X16) (Honda Code 0058206) | 2 шт. | — | |
|
