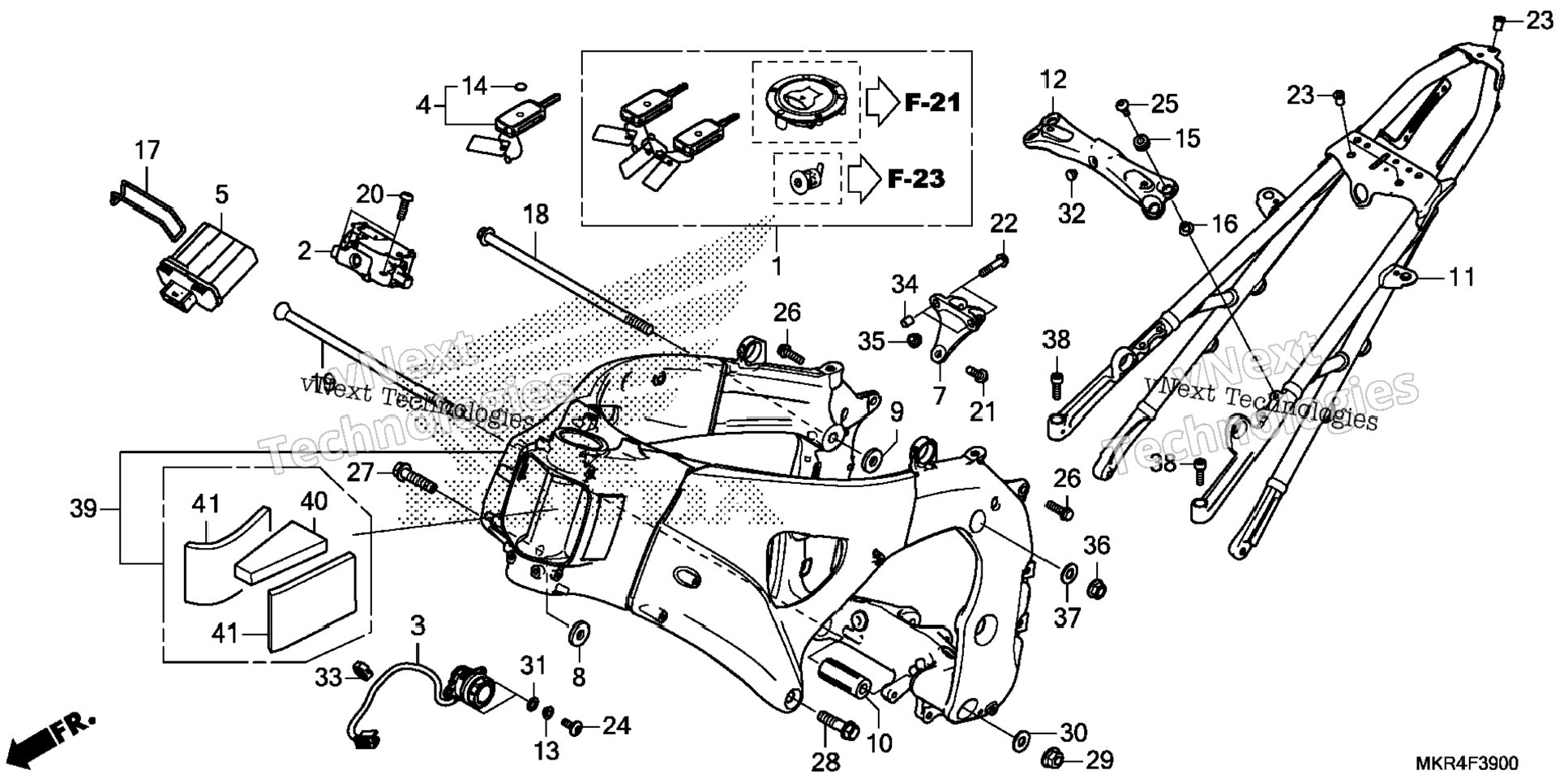

| 1 | 35010-MKR-A91 | SMART LOCK SET | 1 шт. | — | |
|
| 2 | 06351-MKR-D62 | LOCK ASSY. | 1 шт. | — | |
|
| 3 | 35120-MKR-A31 | SWITCH ASSY., IGNITION | 1 шт. | — | |
|
| 4 | 35121-MKR-A91 | FOB ASSY. (Optional). | 1 шт. | — | |
|
| 5 | 35140-MKR-A32 | CONTROL UNIT, SMART | 0 шт. | — | |
|
| 6 | 50121-MKR-D10 | BRACKET, RR. CUSHION | 1 шт. | — | |
|
| 7 | 50192-MKR-D60 | COLLAR A, ENG HGR | 1 шт. | — | |
|
| 8 | 50193-MKR-D10 | COLLAR C, ENGINE HANGER | 1 шт. | — | |
|
| 9 | 50194-MKR-D10 | COLLAR D, ENGINE HANGER | 1 шт. | — | |
|
| 10 | 50210-MKR-D10ZA | RAIL, SEAT *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 11 | 50250-MKR-D10 | CROSS, SEAT RAIL | 1 шт. | — | |
|
| 12 | 61101-KZZ-910 | COLLAR, REFLECTOR | 2 шт. | — | |
|
| 13 | 35148-K1W-D00 | BATTERY (CR2032) | 1 шт. | — | |
|
| 14 | 35148-K78-N10 | BATTERY (CR2032) | 1 шт. | — | |
|
| 15 | 72148-S04-000 | BATTERY (CR2032) (MSDS) | 1 шт. | — | |
|
| 16 | 80101-165-000 | RUBBER, RR. FENDER CUSHION (FR.) | 4 шт. | — | |
|
| 17 | 84706-163-670 | COLLAR, TAILLIGHT MOUNTING | 4 шт. | — | |
|
| 18 | 89012-KZL-930 | BAND, TOOL | 1 шт. | — | |
|
| 19 | 90101-MKR-D10 | BOLT, FLANGE (12X285.5) | 1 шт. | — | |
|
| 20 | 90102-MKR-D10 | BOLT, SPECIAL (12X317.5) | 1 шт. | — | |
|
| 21 | 90107-MBG-000 | BOLT, ONE-WAY (8MM) | 2 шт. | — | |
|
| 22 | 90108-MKR-D10 | BOLT, FLANGE (8X28) | 1 шт. | — | |
|
| 23 | 90109-MKR-D10 | BOLT, FLANGE (8X35) | 2 шт. | — | |
|
| 24 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 3 шт. | — | |
|
| 25 | 90116-MJM-D40 | BOLT, SPECIAL (6X16) | 2 шт. | — | |
|
| 26 | 90118-MEJ-J00 | SCREW, PAN (6X20) | 4 шт. | — | |
|
| 27 | 90162-MKR-D10 | BOLT, FLANGE (8X28) | 2 шт. | — | |
|
| 28 | 90163-MKR-D10 | BOLT, FLANGE (12X50) | 1 шт. | — | |
|
| 29 | 90164-MKR-D10 | BOLT, FLANGE (12X45) | 1 шт. | — | |
|
| 30 | 90371-MFL-000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 31 | 90504-MKR-D10 | WASHER, PLAIN (12MM) | 1 шт. | — | |
|
| 32 | 90507-KCR-000 | WASHER, RUBBER | 2 шт. | — | |
|
| 33 | 90572-KV3-300 | RUBBER, SEPARATOR MOUNTING | 1 шт. | — | |
|
| 34 | 90690-MEF-800 | CLAMP, HARNESS | 1 шт. | — | |
|
| 35 | 90703-HC4-000 | PIN, DOWEL (10X14) PIN A, DOWEL (10X14) | 2 шт. | — | |
|
| 36 | 94301-10140 | PIN A, DOWEL (10X14) PIN, DOWEL (10X14) | 2 шт. | — | |
|
| 37 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 1 шт. | — | |
|
| 38 | 94050-12000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 39 | 94101-12000 | WASHER, PLAIN (12MM) | 1 шт. | — | |
|
| 40 | 96600-08025-00 | BOLT, SOCKET (8X25) | 2 шт. | — | |
|
| 41 | 50010-MKR-A30ZA | FRAME SET *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 42 | 50131-MKR-A30 | MAT A, AIR DUCT | 2 шт. | — | |
|
| 43 | 50132-MKR-A30 | MAT B, AIR DUCT | 4 шт. | — | |
|
