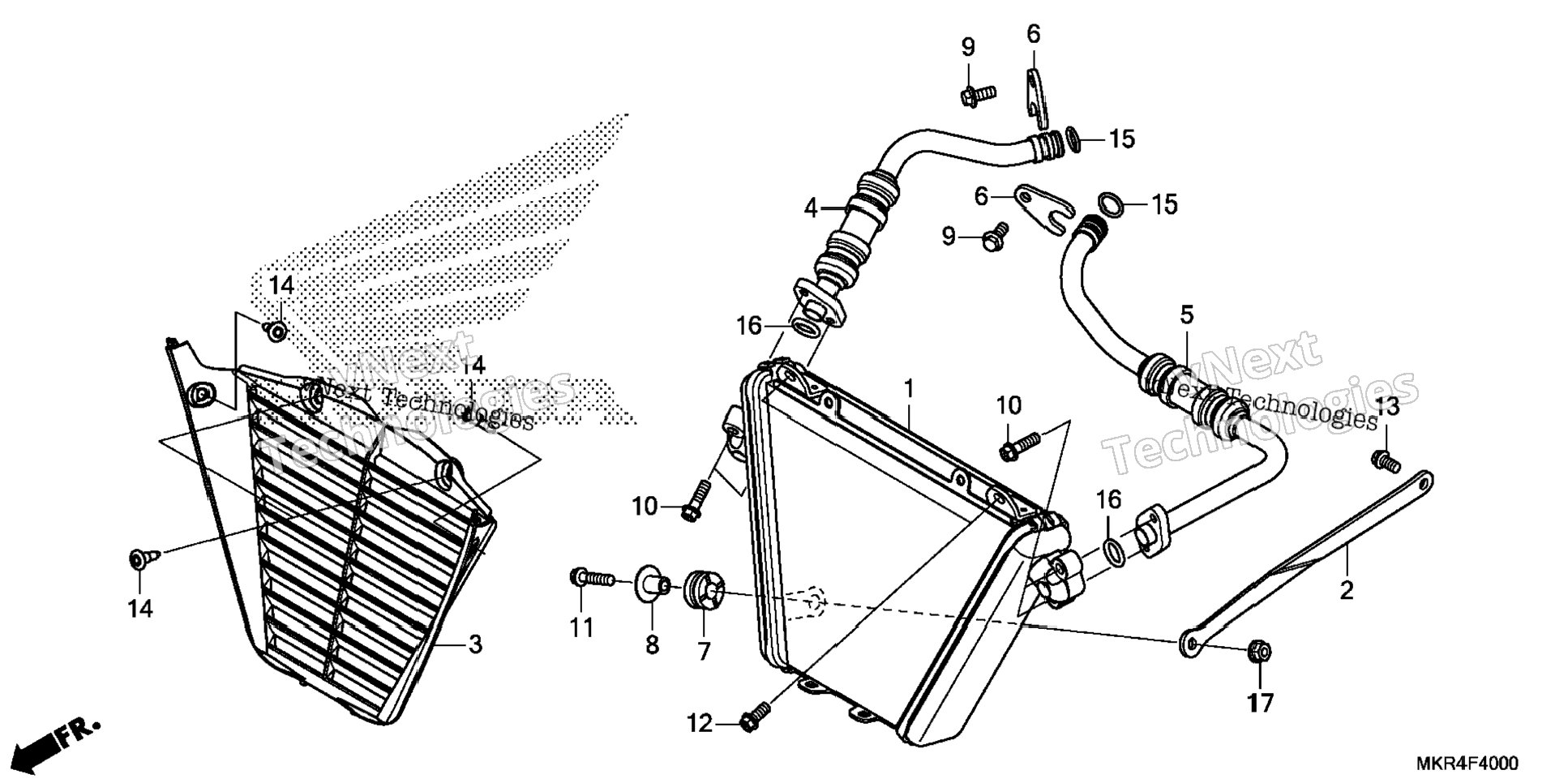

| 1 | 15600-MKR-D11 | COOLER, OIL | 1 шт. | — | |
|
| 2 | 15611-MKR-D10 | STAY, OIL COOLER | 1 шт. | — | |
|
| 3 | 15640-MKR-D10 | GRILLE, OIL COOLER | 1 шт. | — | |
|
| 4 | 15650-MKR-D10 | PIPE, OIL COOLER IN. | 1 шт. | — | |
|
| 5 | 15660-MKR-D10 | PIPE, OIL COOLER OUTLET | 1 шт. | — | |
|
| 6 | 15702-MKR-D10 | PLATE, OIL PIPE | 2 шт. | — | |
|
| 7 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 1 шт. | — | |
|
| 8 | 19052-MAC-680 | COLLAR, RADIATOR MOUNTING | 1 шт. | — | |
|
| 9 | 90004-GHB-620 | BOLT, FLANGE (6X14) (NSHF) | 2 шт. | — | |
|
| 10 | 90020-GHB-660 | BOLT, FLANGE (6X20) | 4 шт. | — | |
|
| 11 | 90020-GHB-680 | BOLT, FLANGE (6X25) | 1 шт. | — | |
|
| 12 | 90021-GHB-630 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
| 13 | 90030-GHB-640 | BOLT, FLANGE (6X16) | 1 шт. | — | |
|
| 14 | 90116-SP0-003 | CLIP, BUMPER SEAL | 4 шт. | — | |
|
| 15 | 91305-MGC-003 | O-RING (11.9X2.2) | 2 шт. | — | |
|
| 16 | 91314-MCF-000 | O-RING (12X3) (Honda Code 6431670) | 2 шт. | — | |
|
| 17 | 94050-06000 | NUT, FLANGE (6MM) | 1 шт. | — | |
|
