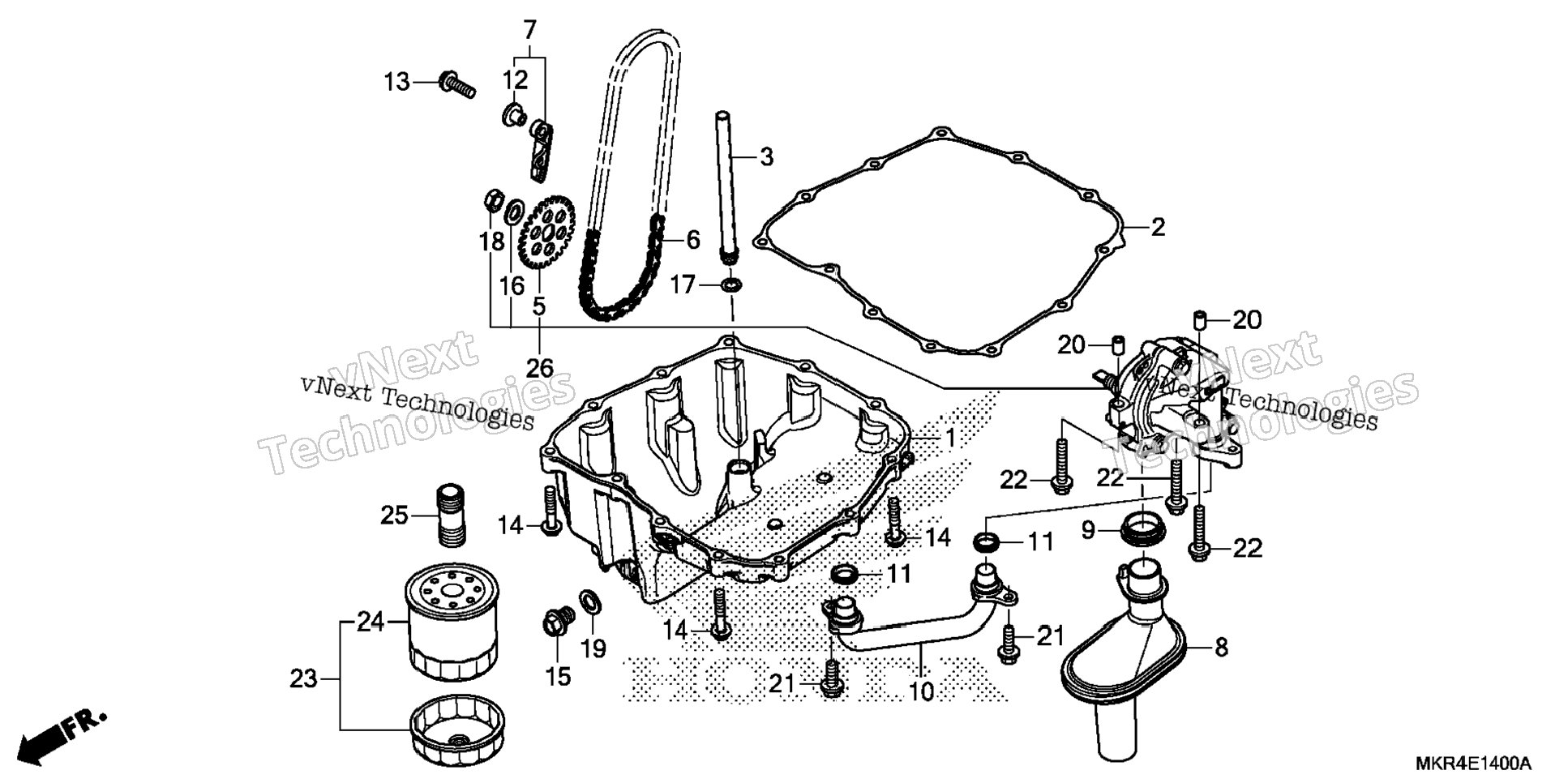

| 1 | 11210-MKR-D10 | PAN, OIL | 1 шт. | — | |
|
| 2 | 11215-MKR-D11 | GASKET, OIL PAN | 1 шт. | — | |
|
| 3 | 11530-MKR-D10 | PIPE, OIL BREATHER | 1 шт. | — | |
|
| 5 | 15134-MKR-D10 | SPROCKET, OIL PUMP DRIVEN (30T) | 1 шт. | — | |
|
| 6 | 15141-MFL-003 | CHAIN, OIL PUMP (72L) | 1 шт. | — | |
|
| 7 | 15146-MFL-000 | GUIDE, OIL PUMP CHAIN | 1 шт. | — | |
|
| 8 | 15150-MKR-D10 | STRAINER, OIL | 1 шт. | — | |
|
| 9 | 15154-MAT-000 | GASKET, OIL STRAINER | 1 шт. | — | |
|
| 10 | 15310-MKR-D10 | PIPE, OIL | 1 шт. | — | |
|
| 11 | 15433-MKR-D11 | SEAL, RING | 2 шт. | — | |
|
| 12 | 61107-MCR-D00 | COLLAR, FR. FENDER | 1 шт. | — | |
|
| 13 | 90011-MFL-000 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 14 | 90027-GHB-700 | BOLT, FLANGE (6X30) | 12 шт. | — | |
|
| 15 | 90131-883-000 | BOLT, DRAIN PLUG (12X15) | 1 шт. | — | |
|
| 15 | 90131-896-650 | BOLT, DRAIN PLUG (12X15) | 1 шт. | — | |
|
| 16 | 90410-KR0-000 | WASHER (10MM) | 1 шт. | — | |
|
| 17 | 91309-ML7-003 | O-RING (9.6X2.6) (ARAI) | 1 шт. | — | |
|
| 18 | 94002-10200-0S | NUT, HEX. (10MM) | 1 шт. | — | |
|
| 19 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 20 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 2 шт. | — | |
|
| 21 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 2 шт. | — | |
|
| 22 | 95701-06035-00 | BOLT, FLANGE (6X35) | 3 шт. | — | |
|
| 23 | 15010-MKR-305 | FILTER SET, OIL (Optional). | 1 шт. | — | |
|
| 24 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 1 шт. | — | |
|
| 25 | 90019-MKR-D10 | BOSS, OIL FILTER | 1 шт. | — | |
|
| 26 | 15100-MKR-305 | PUMP SET, OIL | 1 шт. | — | |
|
