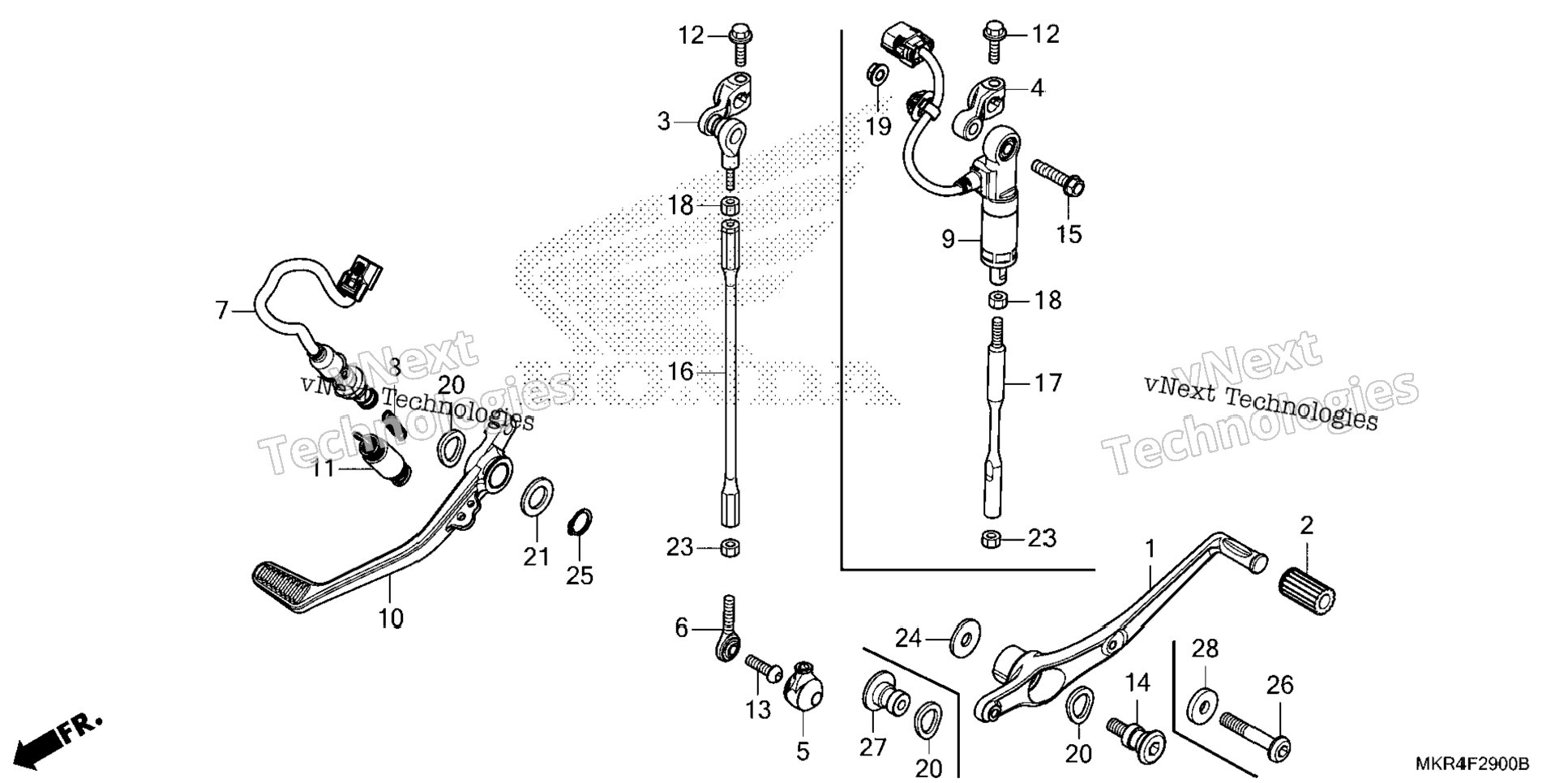

| 1 | 24701-MKR-D10 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24705-MKR-D10 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 3 | 24711-MKR-D30 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 4 | 24722-MKR-D10 | COVER, DUST | 1 шт. | — | |
|
| 5 | 24723-MKR-D10 | TIE ROD (A) | 1 шт. | — | |
|
| 6 | 35350-MKR-D11 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 7 | 35357-MBR-000 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 8 | 36390-MKR-D31 | SENSOR ASSY., STROKE | 1 шт. | — | |
|
| 9 | 46500-MKR-D10 | PEDAL, RR. BRAKE | 1 шт. | — | |
|
| 10 | 46515-MKR-D10 | SPRING ASSY., BRAKE PEDAL | 1 шт. | — | |
|
| 11 | 90021-MKF-D40 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 12 | 90104-MGH-640 | BOLT, SOCKET (6X22) | 1 шт. | — | |
|
| 13 | 90115-MKF-D60 | BOLT, FLANGE (7X30) | 1 шт. | — | |
|
| 14 | 90165-MKR-D30 | BAR, CHANGE | 1 шт. | — | |
|
| 15 | 90201-700-000 | NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) | 1 шт. | — | |
|
| 16 | 90202-KV3-000 | NUT, FLANGE (7MM) | 1 шт. | — | |
|
| 17 | 90505-MBW-000 | WASHER, CHANGE PEDAL WAVE | 2 шт. | — | |
|
| 18 | 90557-230-000 | WASHER (15.2X25) | 1 шт. | — | |
|
| 19 | 94001-06080-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 20 | 94511-15000 | CIRCLIP (OUTER) (15MM) | 1 шт. | — | |
|
| 21 | 90109-MBT-611 | BOLT, SOCKET (8X45) | 1 шт. | — | |
|
| 22 | 24731-MKR-D10 | COLLAR, CHANGE PIVOT | 1 шт. | — | |
|
| 23 | 90501-MKR-D10 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
