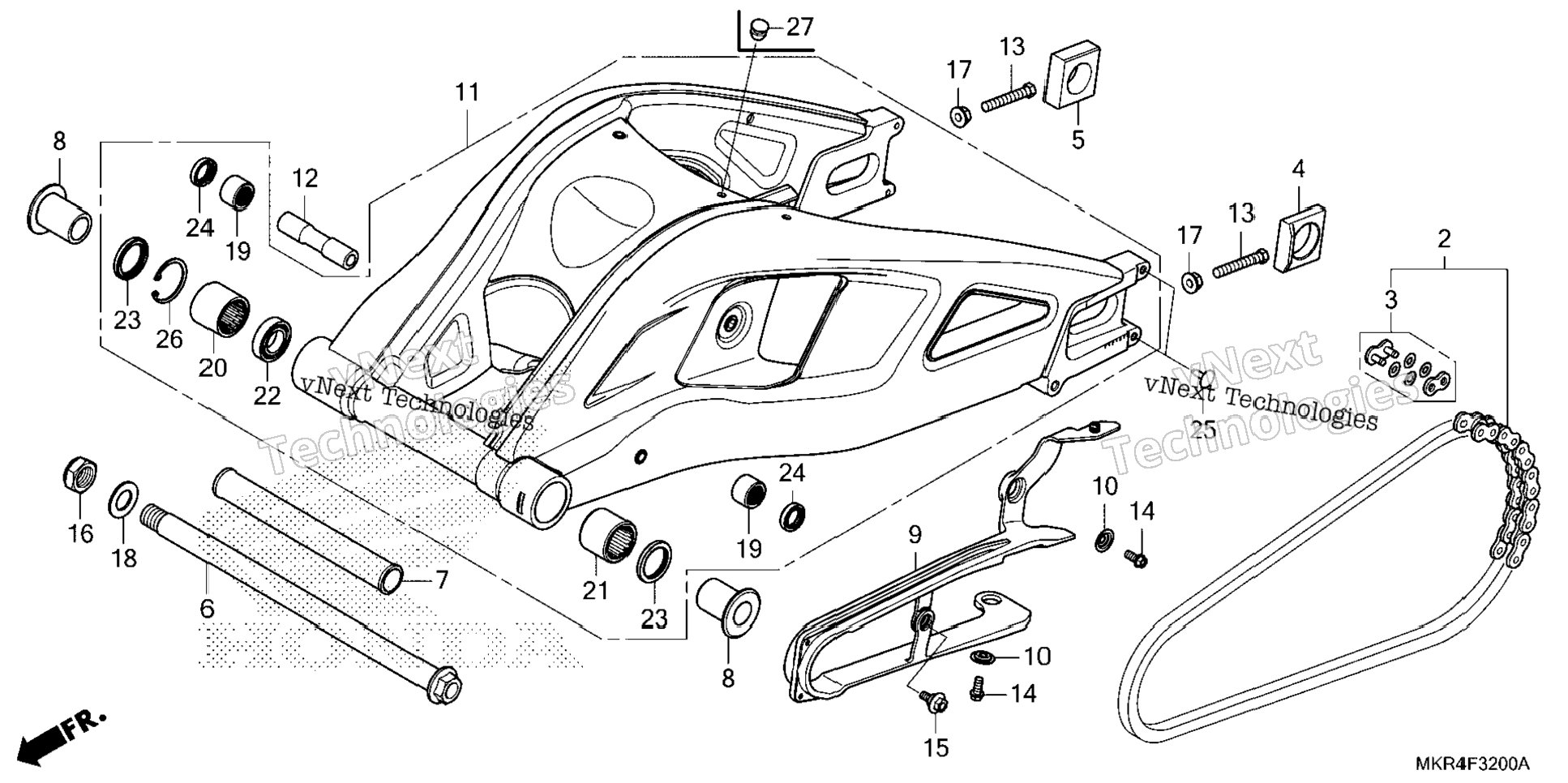

| 1 | 40530-MKR-A31 | CHAIN, DRIVE (DID525HV3KAI-120ZH) (DAIDO) | 1 шт. | — | |
|
| 2 | 40530-MKR-A32 | CHAIN, DRIVE (RK525ROZ8-120LJFZ) (RK JAPAN) (NA USE ALT:40530-MKR-A31) | 0 шт. | — | |
|
| 3 | 40535-MKR-D11 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
| 4 | 40535-MKR-D12 | MASTER LINK (RK JAPAN) | 1 шт. | — | |
|
| 5 | 42305-MKF-D40 | COLLAR, L. RR. AXLE | 1 шт. | — | |
|
| 6 | 42306-MKF-D40 | COLLAR, R. RR. AXLE | 1 шт. | — | |
|
| 7 | 52101-MKR-D10 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 8 | 52141-MKR-D10 | COLLAR, CENTER PIVOT DISTANCE | 1 шт. | — | |
|
| 9 | 52142-MKR-D10 | COLLAR, PIVOT DISTANCE | 2 шт. | — | |
|
| 10 | 52170-MKR-D10 | SLIDER, CHAIN | 1 шт. | — | |
|
| 11 | 52171-MFJ-D00 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 12 | 52200-MKR-D11 | SWINGARM SUB, RR. | 1 шт. | — | |
|
| 13 | 52462-MKR-D10 | COLLAR A, CUSHION ARM | 1 шт. | — | |
|
| 14 | 90107-MFL-D20 | BOLT, HEX. (8X50) | 2 шт. | — | |
|
| 15 | 90117-MKS-E00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
| 16 | 90130-MCJ-750 | BOLT, CHAIN SLIDER | 1 шт. | — | |
|
| 17 | 90306-MCS-G01 | NUT, U (18MM) | 1 шт. | — | |
|
| 18 | 90309-357-000 | NUT, HEX. (10MM) | 2 шт. | — | |
|
| 19 | 90401-KZ4-890 | WASHER (18X32X2) | 1 шт. | — | |
|
| 20 | 91071-K45-NL1 | BEARING (17X24X17) | 2 шт. | — | |
|
| 21 | 91071-MBW-E11 | BEARING, NEEDLE | 1 шт. | — | |
|
| 22 | 91071-MR7-003 | BEARING, NEEDLE | 1 шт. | — | |
|
| 23 | 91072-MR7-003 | BEARING, RADIAL BALL (20X37X9) | 1 шт. | — | |
|
| 24 | 91202-MR7-003 | DUST SEAL (28X37X4) | 2 шт. | — | |
|
| 25 | 91262-KV3-831 | DUST SEAL (17X24X5) (ARAI) | 2 шт. | — | |
|
| 26 | 91540-MEC-000 | CLIP, BRUSH | 4 шт. | — | |
|
| 27 | 94520-37000 | CIRCLIP (INNER) (37MM) | 1 шт. | — | |
|
| 28 | 53125-174-670 | PLUG, HANDLE COVER (LOWER) | 1 шт. | — | |
|
