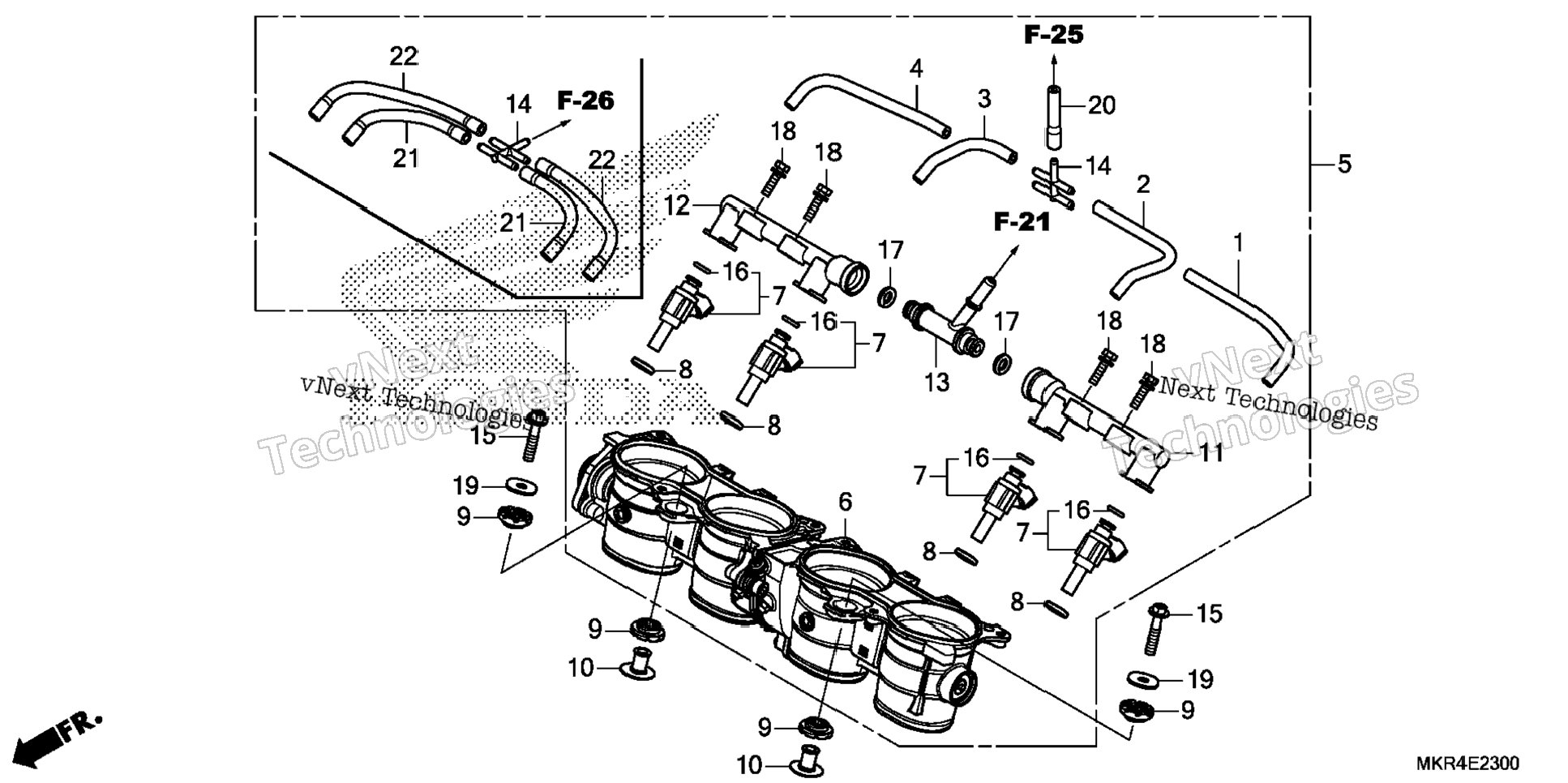

| 1 | 16191-MKR-D10 | TUBE (#1) | 1 шт. | — | |
|
| 2 | 16192-MKR-D10 | TUBE (#2) | 1 шт. | — | |
|
| 3 | 16193-MKR-D10 | TUBE (#3) | 1 шт. | — | |
|
| 4 | 16194-MKR-D10 | TUBE (#4) | 1 шт. | — | |
|
| 5 | 16400-MKR-A81 | BODY ASSY. (GNM2B A) | 1 шт. | — | |
|
| 6 | 16401-MKR-A81 | BODY ASSY., THROTTLE | 1 шт. | — | |
|
| 7 | 16450-MKR-D11 | INJECTOR ASSY., FUEL | 4 шт. | — | |
|
| 8 | 16472-MKP-T00 | SEAL RING, INJECTOR | 4 шт. | — | |
|
| 9 | 16481-MKR-D10 | RUBBER, THROTTLE BODY MOUNTING | 8 шт. | — | |
|
| 10 | 16483-MKR-D10 | COLLAR, MOUNTING | 4 шт. | — | |
|
| 11 | 16610-MKR-D11 | PIPE, FUEL (A) | 1 шт. | — | |
|
| 12 | 16620-MKR-D11 | PIPE, FUEL (B) | 1 шт. | — | |
|
| 13 | 16650-MKR-D10 | JOINT, FUEL | 1 шт. | — | |
|
| 14 | 17201-MCJ-003 | JOINT, FIVE-WAY | 2 шт. | — | |
|
| 15 | 90026-GHB-690 | BOLT, FLANGE (6X28) | 4 шт. | — | |
|
| 16 | 91301-MKP-T01 | O-RING | 4 шт. | — | |
|
| 17 | 91301-PLC-000 | O-RING (7.47X3.6) | 2 шт. | — | |
|
| 18 | 93401-05020-00 | BOLT-WASHER (5X20) | 4 шт. | — | |
|
| 19 | 94103-06800 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 20 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 21 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 2 шт. | — | |
|
| 22 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 2 шт. | — | |
|
