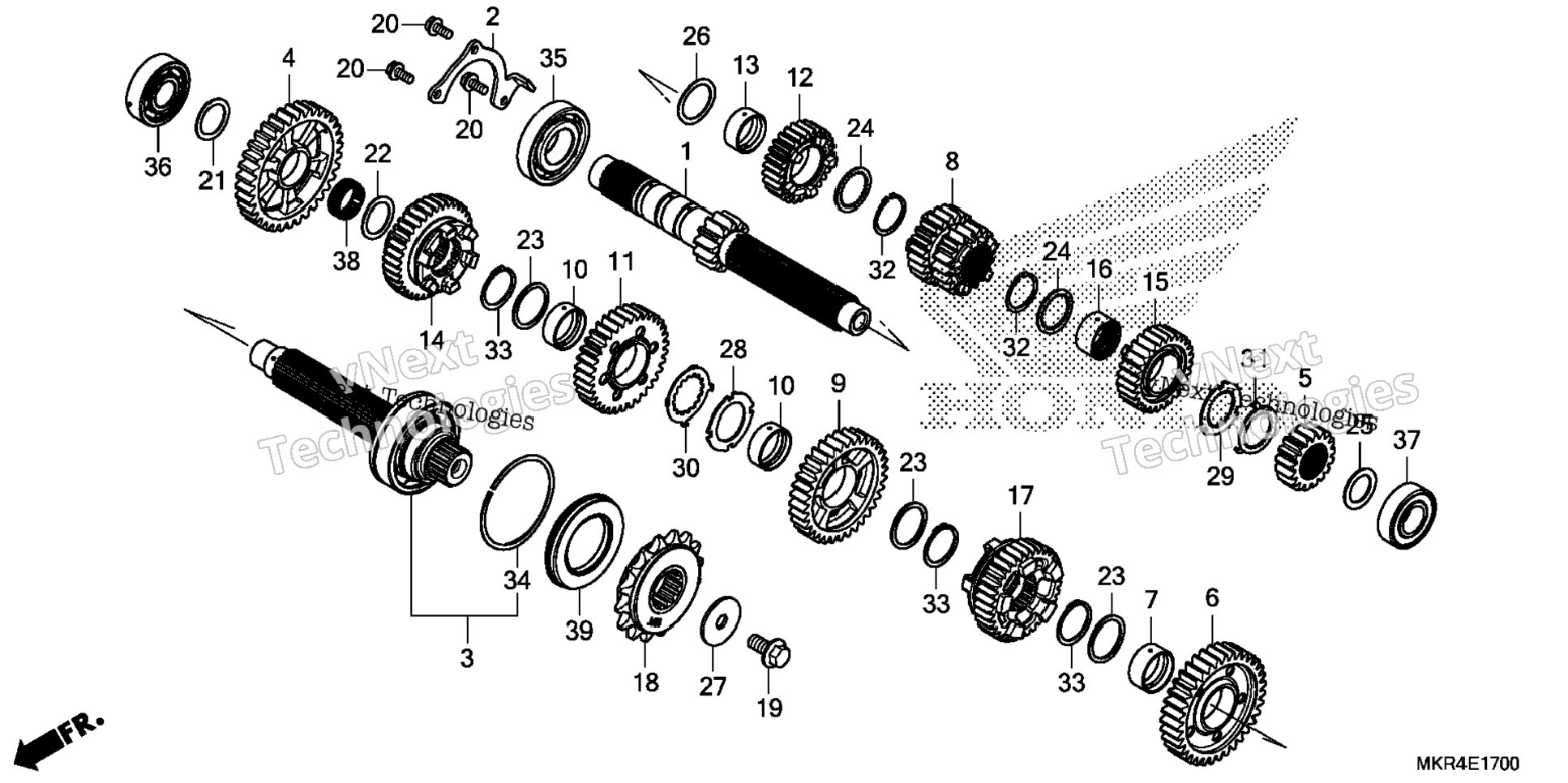

| 1 | 23211-MKR-D10 | MAINSHAFT (13T) | 1 шт. | — | |
|
| 2 | 23212-MKR-D10 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 3 | 23220-MKR-D11 | COUNTERSHAFT | 1 шт. | — | |
|
| 4 | 23421-MKR-D10 | GEAR, COUNTERSHAFT FIRST (34T) | 1 шт. | — | |
|
| 5 | 23431-MKR-D10 | GEAR, MAINSHAFT SECOND (17T) | 1 шт. | — | |
|
| 6 | 23441-MKR-D11 | GEAR, COUNTERSHAFT SECOND (35T) | 1 шт. | — | |
|
| 7 | 23442-MKR-D10 | COLLAR (30X14.5) | 1 шт. | — | |
|
| 8 | 23451-MKR-D10 | GEAR, MAINSHAFT THIRD & FOURTH (20T/23T) | 1 шт. | — | |
|
| 9 | 23461-MKR-D10 | GEAR, COUNTERSHAFT THIRD (34T) | 1 шт. | — | |
|
| 10 | 23462-MGE-000 | COLLAR, SPLINE (30X12) | 2 шт. | — | |
|
| 11 | 23481-MKR-D11 | GEAR (C-4) | 1 шт. | — | |
|
| 12 | 23491-MKR-D10 | GEAR, MAINSHAFT FIFTH (27T) | 1 шт. | — | |
|
| 13 | 23495-MM5-000 | COLLAR (28X13) | 1 шт. | — | |
|
| 14 | 23501-MKR-D11 | GEAR (C-5) | 1 шт. | — | |
|
| 15 | 23511-MKR-D10 | GEAR, MAINSHAFT SIXTH (28T) | 1 шт. | — | |
|
| 16 | 23512-MKR-D10 | COLLAR, SPLINE (28X16.2) | 1 шт. | — | |
|
| 17 | 23521-MKR-D10 | GEAR, COUNTERSHAFT SIXTH (34T) | 1 шт. | — | |
|
| 18 | 23801-MKR-D10 | SPROCKET, DRIVE (16T) | 1 шт. | — | |
|
| 19 | 90037-422-003 | BOLT, SPECIAL (10MM) | 1 шт. | — | |
|
| 20 | 90037-RYX-010 | BOLT, FLANGE (6X14) (10.9) | 3 шт. | — | |
|
| 21 | 90401-HP0-A00 | WASHER, THRUST (20MM) | 1 шт. | — | |
|
| 22 | 90402-HA5-000 | WASHER, THRUST (24MM) | 1 шт. | — | |
|
| 23 | 90452-MAT-000 | WASHER, SPLINE (30X36X1.5) | 3 шт. | — | |
|
| 24 | 90452-MKR-D10 | WASHER, SPLINE (28X27X1) | 2 шт. | — | |
|
| 25 | 90453-KSR-A00 | WASHER (22X32X1.5) | 1 шт. | — | |
|
| 26 | 90458-729-920 | WASHER, THRUST (28MM) | 1 шт. | — | |
|
| 27 | 90459-438-000 | WASHER (10.2MM) | 1 шт. | — | |
|
| 28 | 90463-MAT-000 | WASHER, SPLINE (30MM) | 1 шт. | — | |
|
| 29 | 90463-MKR-D10 | WASHER, SPLINE (28X27X1) | 1 шт. | — | |
|
| 30 | 90464-MAT-000 | WASHER, LOCK (30MM) | 1 шт. | — | |
|
| 31 | 90464-MKR-D10 | WASHER, LOCK (28X27X1.5) | 1 шт. | — | |
|
| 32 | 90603-MN4-000 | CIRCLIP (28MM) | 2 шт. | — | |
|
| 33 | 90604-MM5-000 | CIRCLIP (30MM) | 3 шт. | — | |
|
| 34 | 90605-MM5-000 | RING, SNAP (72MM) | 1 шт. | — | |
|
| 35 | 91002-MKR-D11 | BEARING, RADIAL BALL (28X62X16) (FUJIKOSHI) | 1 шт. | — | |
|
| 36 | 91003-MFL-003 | BEARING, SPECIAL (20X52X15) | 1 шт. | — | |
|
| 37 | 91004-KSC-671 | BEARING, RADIAL BALL (22X47X14) | 1 шт. | — | |
|
| 38 | 91026-MEL-003 | BEARING, NEEDLE (24X28X10) | 1 шт. | — | |
|
| 39 | 91207-MAT-003 | OIL SEAL (45X72X8) | 1 шт. | — | |
|
