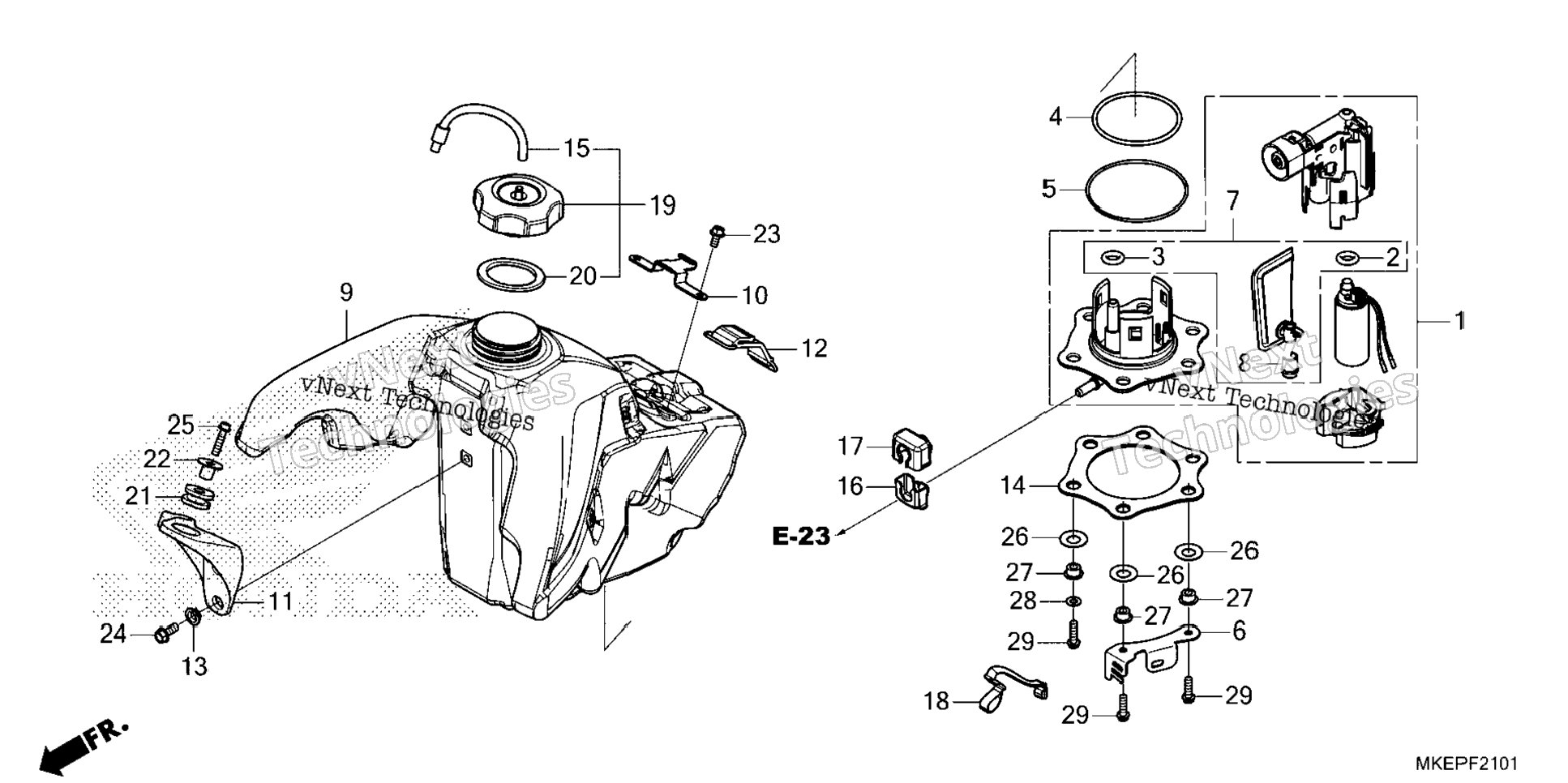

| 1 | 16700-MEN-A52 | PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) | 1 шт. | — | |
|
| 2 | 16702-KPC-D50 | O-RING (8.6X1.9) | 1 шт. | — | |
|
| 3 | 16702-KTR-940 | O-RING (10X2.4) | 1 шт. | — | |
|
| 4 | 16711-MEN-A30 | O-RING (3.7X73.9) | 1 шт. | — | |
|
| 5 | 16712-MEN-A30 | O-RING (2.4X88.4) | 1 шт. | — | |
|
| 6 | 16714-MKE-AG0 | GUARD, FUEL JOINT | 1 шт. | — | |
|
| 7 | 16715-MEN-A51 | FILTER SET | 1 шт. | — | |
|
| 8 | 16735-MEN-A51 | RUBBER, STOPPER | 1 шт. | — | |
|
| 9 | 17510-MKE-AG0 | TANK, FUEL | 1 шт. | — | |
|
| 10 | 17513-MKE-AG0 | STAY, SEAT HOOK | 1 шт. | — | |
|
| 11 | 17516-MKE-AG0 | STAY, FR. FUEL TANK | 1 шт. | — | |
|
| 12 | 17517-MKE-AF0 | BAND, RR. TANK | 1 шт. | — | |
|
| 13 | 17518-MKE-AF0 | COLLAR, FR. TANK STAY | 2 шт. | — | |
|
| 14 | 17519-MEN-A30 | PLATE, FUEL PUMP | 1 шт. | — | |
|
| 15 | 17521-MKE-A70 | TUBE, FUEL CAP BREATHER | 1 шт. | — | |
|
| 16 | 17575-MKE-AF0 | COVER, FUEL CONNECTOR | 1 шт. | — | |
|
| 17 | 17576-KRN-A90 | RUBBER, FUEL CONNECTOR | 1 шт. | — | |
|
| 18 | 17577-MKE-AF0 | STRAP, FUEL TANK | 1 шт. | — | |
|
| 19 | 17620-MKE-A81 | CAP ASSY., FUEL TANK | 1 шт. | — | |
|
| 20 | 17624-KT1-781 | GASKET, FUEL CAP | 1 шт. | — | |
|
| 21 | 18334-KA3-830 | RUBBER, MUFFLER | 1 шт. | — | |
|
| 22 | 19052-MAC-680 | COLLAR, RADIATOR MOUNTING | 1 шт. | — | |
|
| 23 | 90002-892-000 | BOLT, FLANGE (5X10) | 2 шт. | — | |
|
| 24 | 90020-GHB-640 | BOLT, FLANGE (6X16) | 2 шт. | — | |
|
| 25 | 90020-GHB-680 | BOLT, FLANGE (6X25) | 1 шт. | — | |
|
| 26 | 90502-MEN-A30 | WASHER, CONICAL SPRING FUEL PUMP | 6 шт. | — | |
|
| 27 | 90504-MKE-A00 | COLLAR, FUEL PUMP | 6 шт. | — | |
|
| 28 | 94101-06000 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 29 | 94101-06080 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 30 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 4 шт. | — | |
|
| 31 | 96001-06020-00 | BOLT, FLANGE (6X20) | 6 шт. | — | |
|
