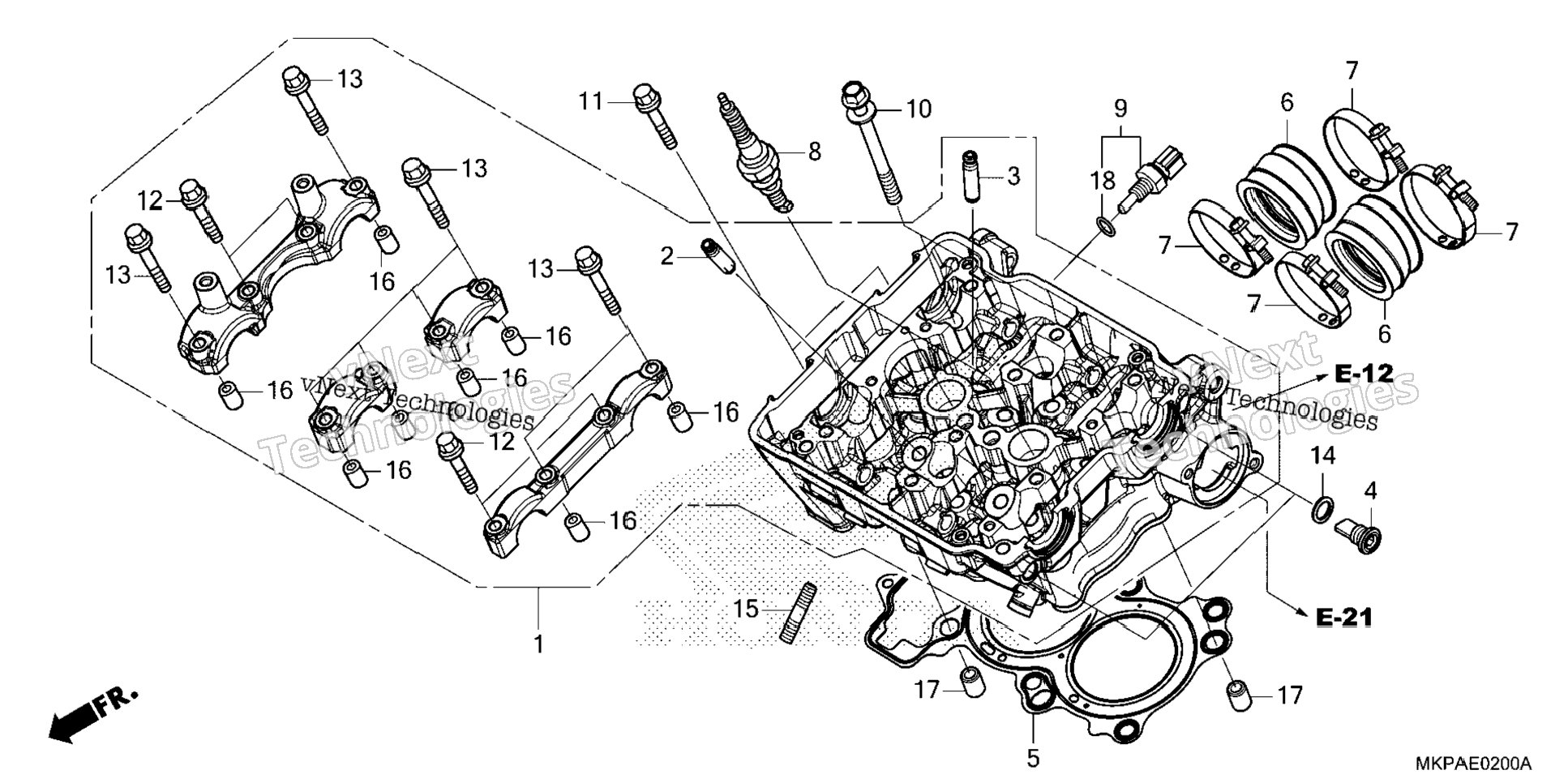

| 1 | 12010-MKP-DA1 | CYLINDER HEAD ASSY. | 1 шт. | — | |
|
| 2 | 12204-KYJ-305 | GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE) | 4 шт. | — | |
|
| 3 | 12205-KYJ-305 | GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) | 4 шт. | — | |
|
| 4 | 12207-MGZ-J00 | BOLT, SEALING (12MM) | 2 шт. | — | |
|
| 5 | 12251-MGZ-J01 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 6 | 16211-MKP-DN0 | INSULATOR | 2 шт. | — | |
|
| 7 | 16217-MGZ-J00 | BAND, INSULATOR | 4 шт. | — | |
|
| 8 | 31916-KRM-841 | SPARK PLUG (CPR8EA-9) (NGK) | 2 шт. | — | |
|
| 9 | 37870-KZR-601 | SENSOR ASSY., WATER TEMPERATURE | 1 шт. | — | |
|
| 10 | 90007-MGZ-J00 | BOLT-WASHER (9X100) | 6 шт. | — | |
|
| 11 | 90023-GHB-720 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 12 | 90017-KYJ-900 | BOLT, FLANGE (6X32) | 4 шт. | — | |
|
| 13 | 90019-KYJ-900 | BOLT, FLANGE (6X39.5) | 8 шт. | — | |
|
| 14 | 90418-KYJ-900 | WASHER (12.2X17X1.5) | 2 шт. | — | |
|
| 15 | 92900-08022-3E | BOLT, STUD (8X22) | 4 шт. | — | |
|
| 16 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 8 шт. | — | |
|
| 17 | 94301-12160 | PIN A, DOWEL (12X16) | 2 шт. | — | |
|
| 18 | 91307-PLC-004 | O-RING (9.5X1.9) (PANASONIC) | 1 шт. | — | |
|
