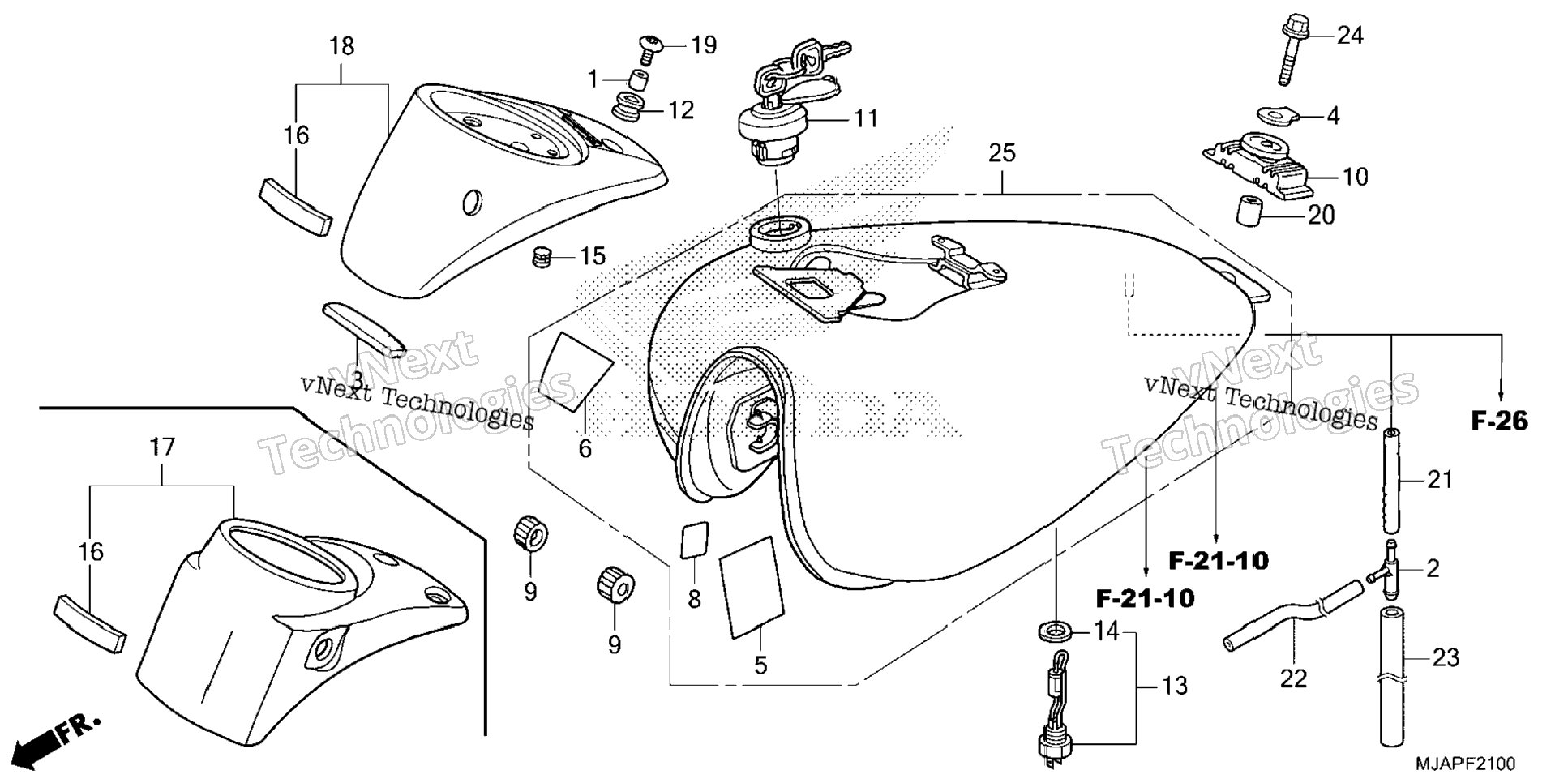

| 1 | 11346-371-300 | COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING | 2 шт. | — | |
|
| 2 | 17511-KGB-610 | RUBBER, FR. FUEL TANK | 1 шт. | — | |
|
| 3 | 17511-MEG-000 | PLATE, FUEL TANK SETTING | 1 шт. | — | |
|
| 4 | 17515-MEG-300 | TAPE, TANK PROTECTOR | 1 шт. | — | |
|
| 5 | 17516-MFE-670 | FILM, PROTECTOR | 1 шт. | — | |
|
| 6 | 17528-MR4-900 | TAPE, TANK GUARD | 1 шт. | — | |
|
| 7 | 17611-MEG-000 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
|
| 8 | 17613-KY1-000 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
|
| 9 | 17620-KR3-753 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 10 | 18293-GN2-000 | RUBBER, PROTECTOR GASKET | 2 шт. | — | |
|
| 11 | 37810-MFE-641 | SENSOR, FUEL RESERVE | 1 шт. | — | |
|
| 12 | 37811-MB1-008 | GASKET, FUEL RESERVE SENSOR | 1 шт. | — | |
|
| 13 | 61110-388-000 | PLUG, HOLE | 2 шт. | — | |
|
| 14 | 83511-MFE-670 | MAT, METER COVER | 1 шт. | — | |
|
| 15 | 83515-MEG-A40 | COVER ASSY., METER | 1 шт. | — | |
|
| 16 | 90118-MCL-000 | BOLT, SPECIAL (6X14) | 2 шт. | — | |
|
| 17 | 90513-MAT-000 | COLLAR (8X20) | 1 шт. | — | |
|
| 18 | 95701-08035-00 | BOLT, FLANGE (8X35) | 1 шт. | — | |
|
| 19 | 17520-MJA-CN0ZA | TANK ASSY., FUEL *B197M* (WL) (GLINT WAVE BLUE METALLIC) | 1 шт. | — | |
|
