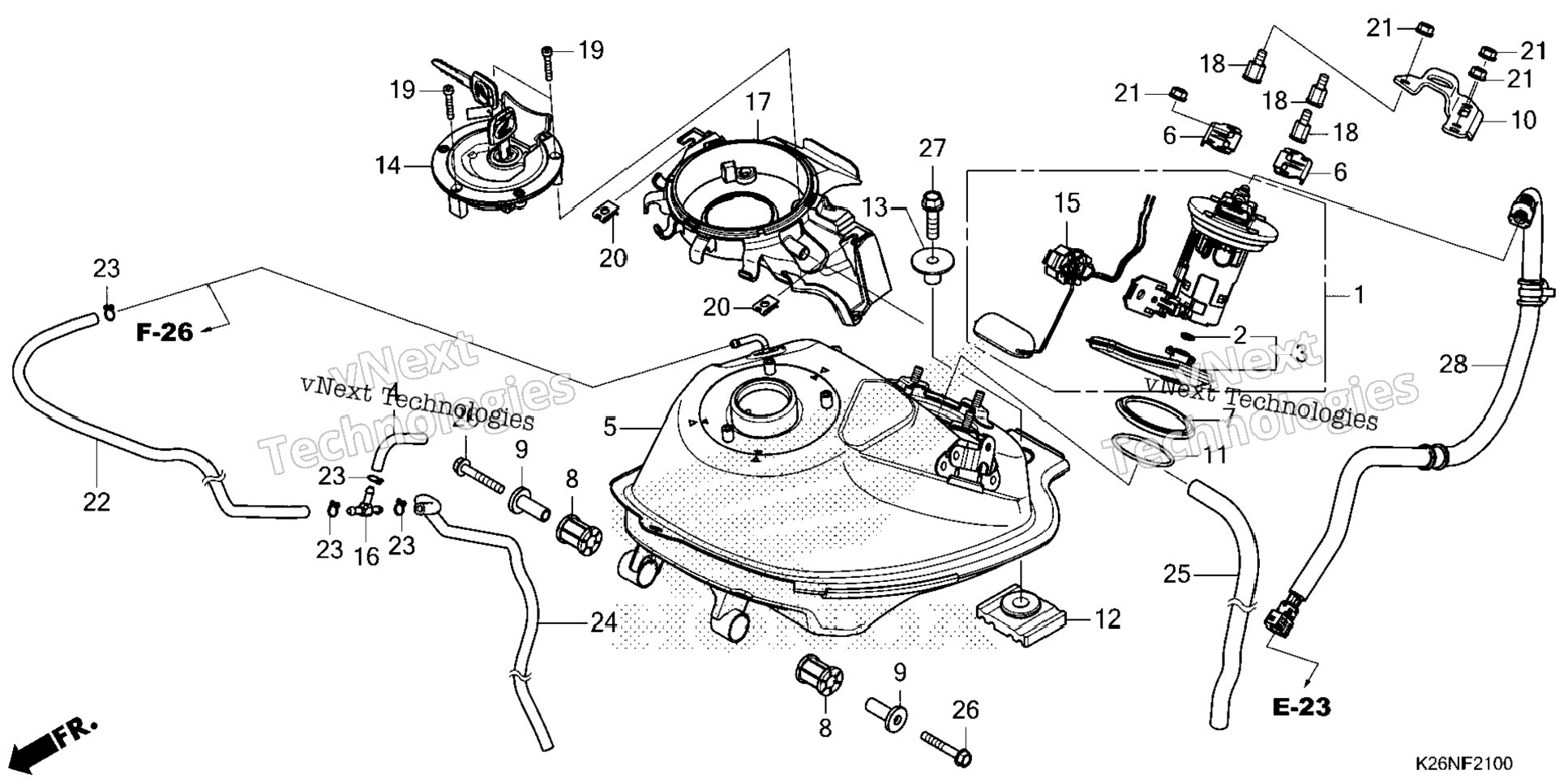

| 1 | 16700-K26-G01 | PUMP UNIT, FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16706-K0J-N01 | O-RING (P5) | 1 шт. | — | |
|
| 3 | 16707-K1M-T01 | FILTER SET | 1 шт. | — | |
|
| 4 | 17500-K26-G00 | TANK ASSY., FUEL | 1 шт. | — | |
|
| 5 | 17517-GGL-J00 | RETAINER, FUEL PUMP | 2 шт. | — | |
|
| 6 | 17518-GHB-601 | DUST SEAL (OHTUKA POLY-TECH) | 1 шт. | — | |
|
| 7 | 17534-K94-T00 | RUBBER, FR. TANK MOUNTING | 2 шт. | — | |
|
| 8 | 17538-KZZ-900 | COLLAR | 2 шт. | — | |
|
| 9 | 17540-K26-G00 | STAY, FUEL PUMP | 1 шт. | — | |
|
| 10 | 17572-GHB-601 | O-RING, FUEL PUMP (ARAI) | 1 шт. | — | |
|
| 11 | 17613-K26-G00 | RUBBER, RR. FUEL TANK | 1 шт. | — | |
|
| 12 | 17614-KR3-000 | COLLAR, FUEL TANK MOUNTING | 1 шт. | — | |
|
| 13 | 17620-K26-G02 | CAP COMP | 1 шт. | — | |
|
| 14 | 37800-K26-G01 | FUEL UNIT | 1 шт. | — | |
|
| 15 | 64460-K26-G00 | COVER, TANK CAP | 1 шт. | — | |
|
| 16 | 90101-K26-900 | BOLT, SPECIAL (6MM) | 3 шт. | — | |
|
| 17 | 90120-MJE-D00 | BOLT, SOCKET (4X25) (SUS) | 3 шт. | — | |
|
| 18 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 19 | 94050-06000 | NUT, FLANGE (6MM) | 4 шт. | — | |
|
| 20 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M) | 1 шт. | — | |
|
| 21 | 95701-06040-00 | BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) | 2 шт. | — | |
|
| 22 | 95701-08028-07 | BOLT, FLANGE (8X28) | 1 шт. | — | |
|
| 23 | 17570-K26-G01 | HOSE, FUEL FEED | 1 шт. | — | |
|
