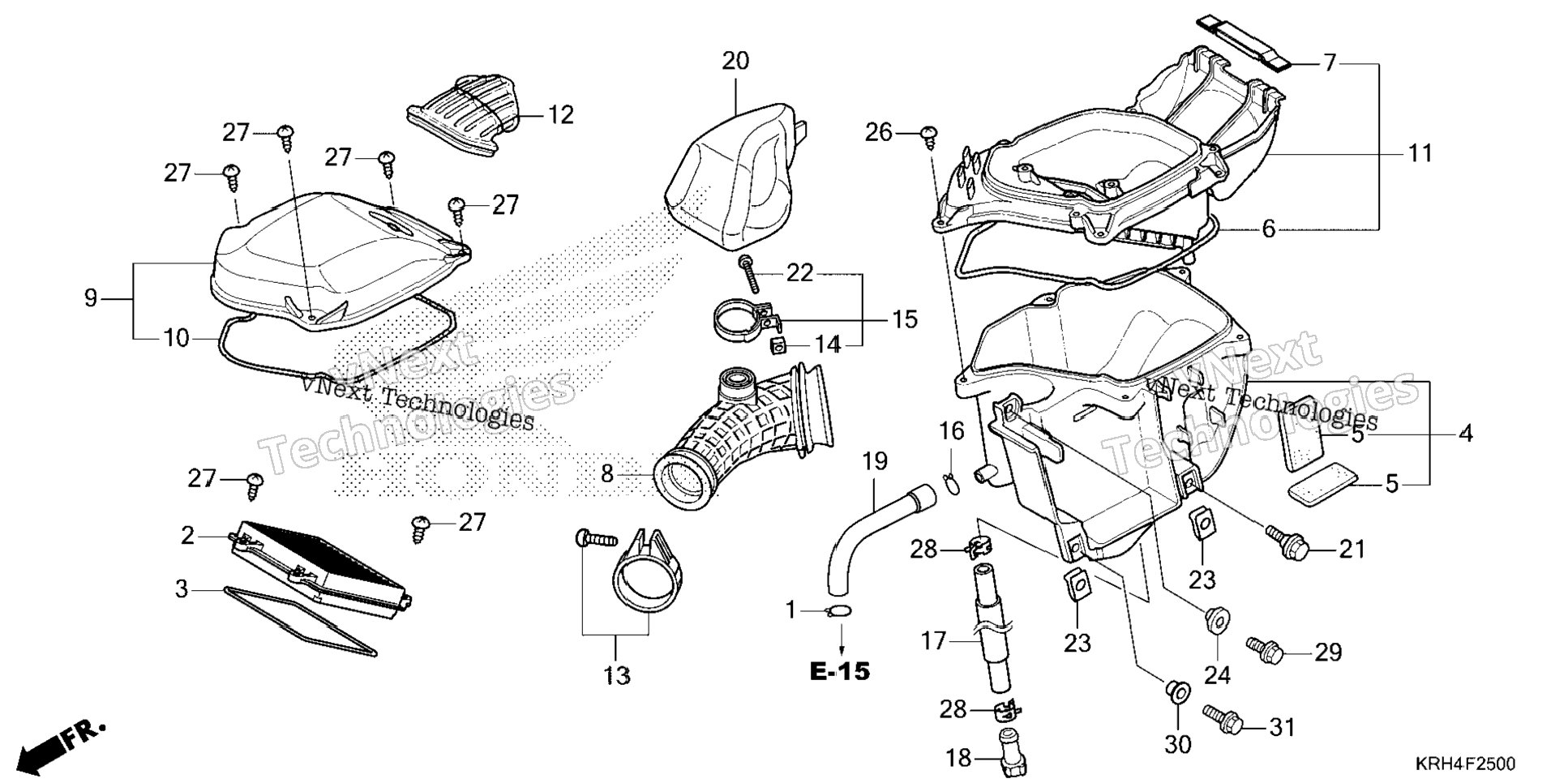

| 1 | 15772-KVC-900 | CLIP, TUBE | 1 шт. | — | |
|
| 2 | 17211-KRH-780 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 3 | 17214-KRH-780 | SEAL, SEPARATOR | 1 шт. | — | |
|
| 4 | 17215-KRH-J00 | CASE SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 5 | 17217-KRH-900 | SPACER B, BATTERY | 2 шт. | — | |
|
| 6 | 17219-KRE-900 | SEAL, AIR CLEANER | 1 шт. | — | |
|
| 7 | 17221-KRH-J00 | RUBBER, AIR CLEANER | 1 шт. | — | |
|
| 8 | 17222-KRH-650 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 9 | 17225-KRH-A00 | COVER SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 10 | 17229-KRE-900 | SEAL, AIR CLEANER (DIRTY) | 1 шт. | — | |
|
| 11 | 17235-KRH-J00 | SEPARATOR SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 12 | 17240-KRE-900 | DUCT, INLET | 1 шт. | — | |
|
| 13 | 17256-K01-900 | BAND (44) | 1 шт. | — | |
|
| 14 | 17255-KRM-860 | NUT, SQUARE (5MM) | 1 шт. | — | |
|
| 15 | 17256-KRH-650 | BAND, AIR CLEANER CONNECTING TUBE (28.5MM) | 1 шт. | — | |
|
| 16 | 17316-KRH-900 | CLIP, BREATHER TUBE | 1 шт. | — | |
|
| 17 | 17363-KRH-650 | TUBE, BREATHER DRAIN | 1 шт. | — | |
|
| 18 | 17370-419-700 | PLUG, BREATHER TUBE | 1 шт. | — | |
|
| 19 | 17373-KRE-850 | TUBE, BREATHER | 1 шт. | — | |
|
| 20 | 17410-KRE-B00 | RESONATOR | 1 шт. | — | |
|
| 21 | 90115-KRH-900 | BOLT, FLANGE (6MM) | 1 шт. | — | |
|
| 22 | 93500-05022-0A | SCREW, PAN (5X22) | 1 шт. | — | |
|
| 23 | 90311-KRH-900 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 24 | 90522-KRH-900 | WASHER, CHAIN CASE | 1 шт. | — | |
|
| 25 | 93903-25380 | SCREW, TAPPING (5X16) | 5 шт. | — | |
|
| 26 | 93903-25510 | SCREW, TAPPING (5X25) | 8 шт. | — | |
|
| 27 | 95002-41050-00 | CLAMP, TUBE (D10.5) | 2 шт. | — | |
|
| 28 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 1 шт. | — | |
|
| 29 | 61101-KRH-900 | COLLAR, FR. | 1 шт. | — | |
|
| 30 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 1 шт. | — | |
|
