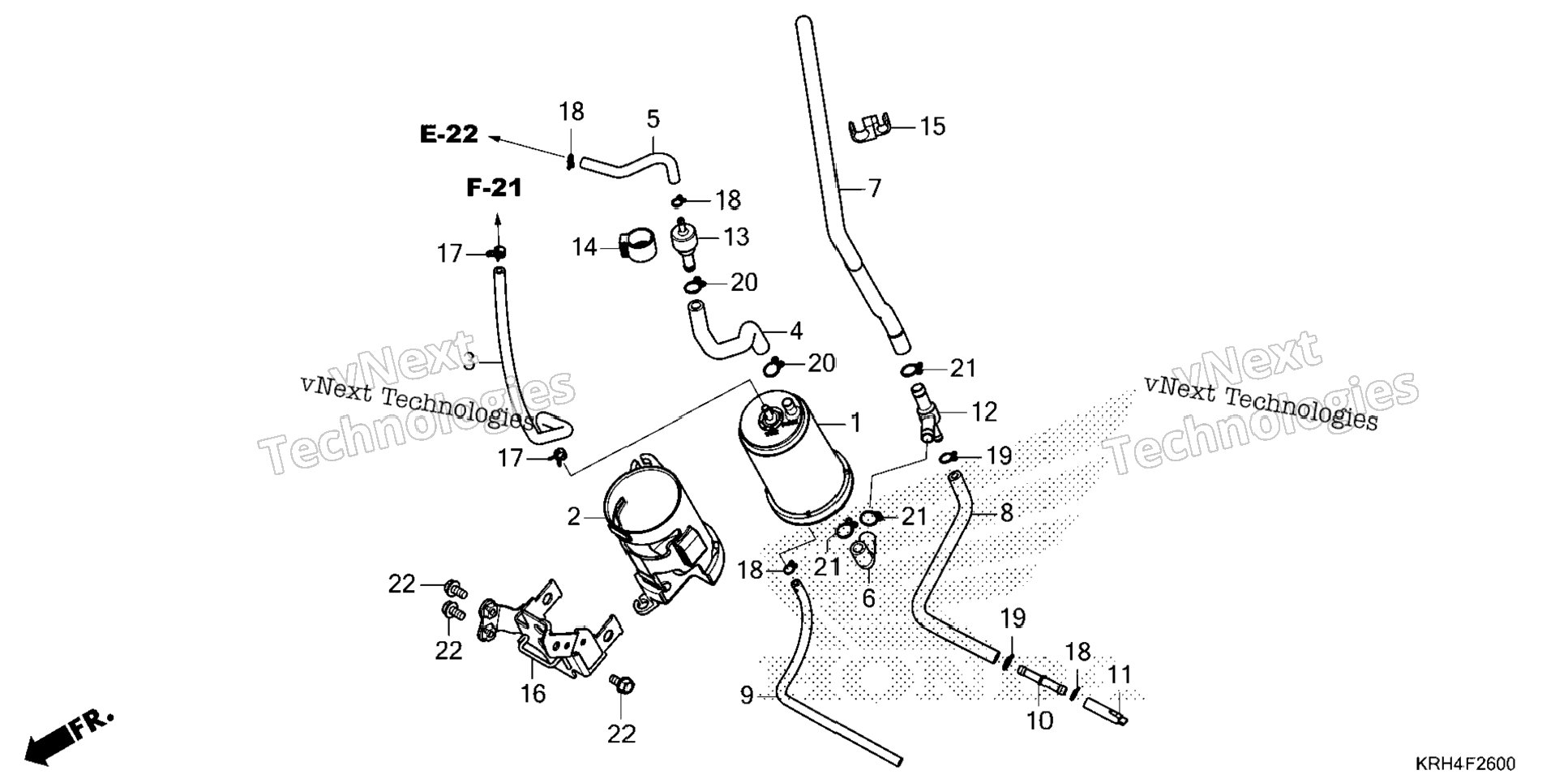

| 1 | 17310-KRH-J01 | CANISTER | 1 шт. | — | |
|
| 2 | 17311-KRH-J00 | RUBBER, CANISTER MOUNTING | 1 шт. | — | |
|
| 3 | 17411-KRH-J00 | TUBE, CHARGE | 1 шт. | — | |
|
| 4 | 17412-KRH-J00 | TUBE A, PURGE | 1 шт. | — | |
|
| 5 | 17413-KRH-J00 | TUBE B, PURGE | 1 шт. | — | |
|
| 6 | 17414-KRH-J00 | TUBE A, AIR | 1 шт. | — | |
|
| 7 | 17415-KRH-J00 | TUBE B, AIR | 1 шт. | — | |
|
| 8 | 17416-KRH-J00 | TUBE C, AIR | 1 шт. | — | |
|
| 9 | 17417-KRH-J00 | TUBE, CANISTER DRAIN | 1 шт. | — | |
|
| 10 | 17432-KWK-900 | JOINT, DRAIN | 1 шт. | — | |
|
| 11 | 17433-KWK-900 | TUBE, DRAIN (THREE-WAY) | 1 шт. | — | |
|
| 12 | 17434-KRH-J00 | JOINT (THREE-WAY) | 1 шт. | — | |
|
| 13 | 17440-KWK-901 | VALVE, ONE-WAY | 1 шт. | — | |
|
| 14 | 17441-KWK-900 | RUBBER, ONE-WAY VALVE | 1 шт. | — | |
|
| 15 | 36533-KRH-J01 | CLAMP, OXYGEN SENSOR | 1 шт. | — | |
|
| 16 | 50185-KRH-J00 | STAY, CANISTER | 1 шт. | — | |
|
| 17 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 2 шт. | — | |
|
| 18 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 4 шт. | — | |
|
| 19 | 95002-02100 | CLIP, TUBE (B10) | 2 шт. | — | |
|
| 20 | 95002-02120 | CLIP, TUBE (B12) | 2 шт. | — | |
|
| 21 | 95002-02130 | CLIP, TUBE (B12.5) | 3 шт. | — | |
|
| 22 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 3 шт. | — | |
|
