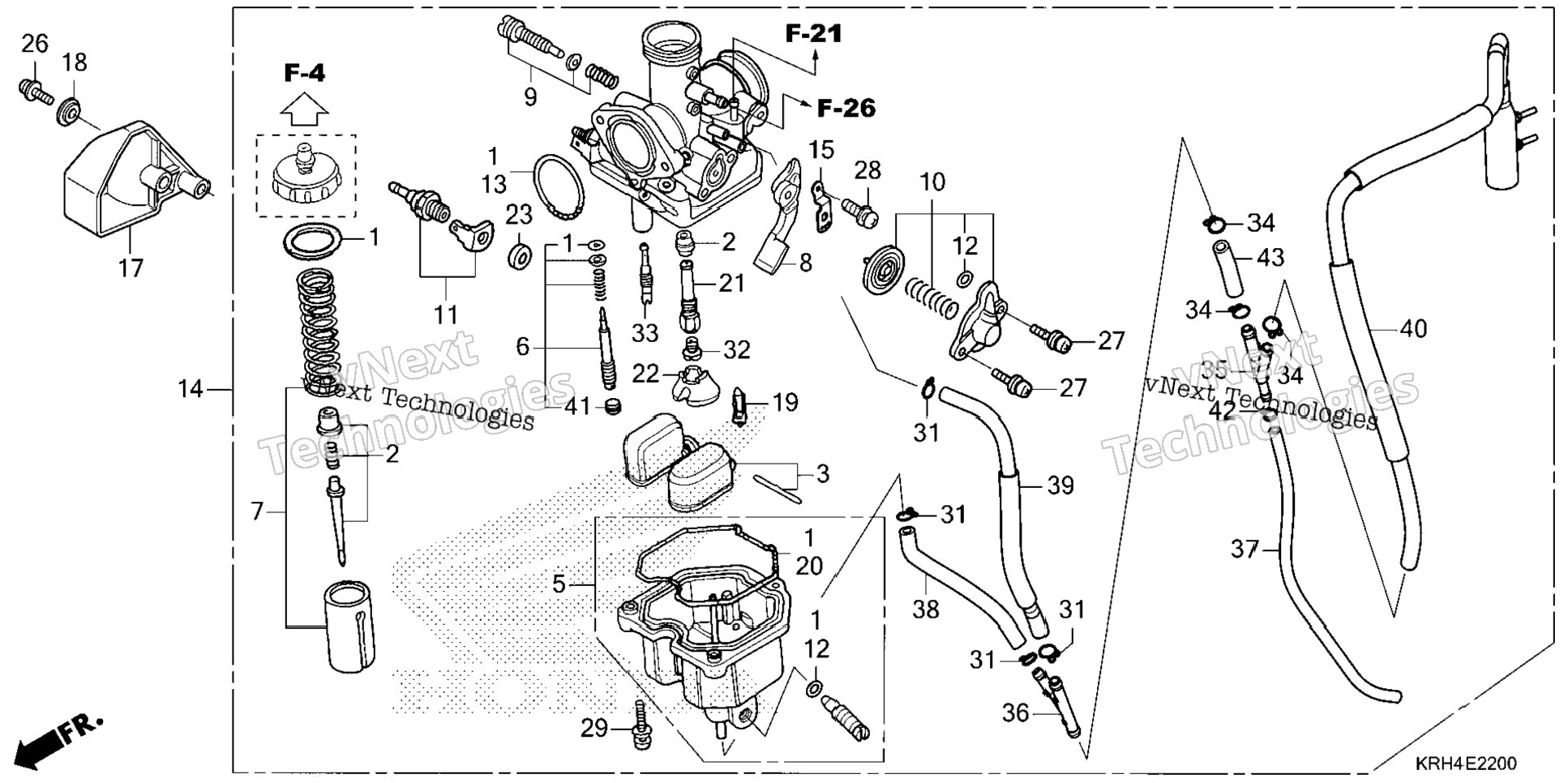

| 1 | 16010-KCH-780 | GASKET SET | 1 шт. | — | |
|
| 2 | 16012-KRH-J01 | NEEDLE SET, JET | 1 шт. | — | |
|
| 3 | 16013-KEH-900 | FLOAT SET | 1 шт. | — | |
|
| 5 | 16015-KRG-003 | CHAMBER SET, FLOAT | 1 шт. | — | |
|
| 6 | 16016-KRH-J01 | SCREW SET A | 1 шт. | — | |
|
| 7 | 16022-KRH-J01 | VALVE SET, THROTTLE | 1 шт. | — | |
|
| 8 | 16025-KRF-B41 | LEVER SET, CHOKE | 1 шт. | — | |
|
| 9 | 16028-KEB-G01 | SCREW SET B | 1 шт. | — | |
|
| 9 | 16028-KEH-900 | SCREW SET B | 1 шт. | — | |
|
| 10 | 16048-KRH-A01 | VALVE SET, AIR CUT | 1 шт. | — | |
|
| 11 | 16070-KRH-681 | HEATER ASSY. | 1 шт. | — | |
|
| 12 | 16075-GHB-640 | O-RING (1.3X4.3) | 2 шт. | — | |
|
| 13 | 16075-GHB-B70 | O-RING (2.4X29) | 1 шт. | — | |
|
| 14 | 16100-KRH-J01 | CARBURETOR (PDN2S A) | 1 шт. | — | |
|
| 15 | 16119-KRF-B41 | PLATE, SETTING | 1 шт. | — | |
|
| 17 | 16151-KRH-950 | COVER | 1 шт. | — | |
|
| 18 | 16152-KRH-900 | COLLAR | 1 шт. | — | |
|
| 19 | 16155-KFR-701 | VALVE, FLOAT | 1 шт. | — | |
|
| 20 | 16163-KCS-920 | GASKET, FLOAT CHAMBER | 1 шт. | — | |
|
| 21 | 16165-KRH-651 | HOLDER, NEEDLE JET | 1 шт. | — | |
|
| 22 | 16168-382-014 | HOLDER, JET | 1 шт. | — | |
|
| 23 | 16172-KCP-J01 | COLLAR, SETTING | 1 шт. | — | |
|
| 26 | 90001-KGA-E00 | SCREW-WASHER (4X12) | 1 шт. | — | |
|
| 27 | 93892-04010-10 | SCREW-WASHER (4X10) | 2 шт. | — | |
|
| 27 | 93892-04010-00 | SCREW-WASHER (4X10) | 2 шт. | — | |
|
| 28 | 93892-04010-08 | SCREW-WASHER (4X10) | 1 шт. | — | |
|
| 28 | 93892-04010-18 | SCREW-WASHER (4X10) | 1 шт. | — | |
|
| 29 | 93892-04016-08 | SCREW-WASHER (4X16) | 3 шт. | — | |
|
| 31 | 95002-02089 | CLIP, TUBE (B1 8) | 4 шт. | — | |
|
| 32 | 99101-GHB-1020 | JET, MAIN (#102) (Optional). | 1 шт. | — | |
|
| 32 | 99101-GHB-1050 | JET, MAIN (#105) | 1 шт. | — | |
|
| 33 | 99103-KRH-0350 | JET (#35X#35) | 1 шт. | — | |
|
| 34 | 16163-GHB-600 | CLIP, TUBE | 3 шт. | — | |
|
| 35 | 16180-KYY-901 | JOINT (THREE-WAY) | 1 шт. | — | |
|
| 36 | 16180-ML6-671 | JOINT | 1 шт. | — | |
|
| 37 | 16196-KRH-J01 | TUBE | 1 шт. | — | |
|
| 38 | 16197-KRH-J01 | TUBE | 1 шт. | — | |
|
| 39 | 16198-KRH-J01 | TUBE, AIR VENT | 1 шт. | — | |
|
| 40 | 16199-KRH-J01 | TUBE, AIR VENT (NA USE ALT:16100-KRH-J01) | 0 шт. | — | |
|
| 41 | 16312-KYK-911 | CAP, ADJUSTING SCREW | 1 шт. | — | |
|
| 42 | 95002-02659 | CLIP, TUBE (B6.5) | 1 шт. | — | |
|
| 43 | 95005-50001-50M | BULK HOSE, VACUUM (5X1000) (5X200) (BULK HOSE: 95005-50001-50M) | 1 шт. | — | |
|
