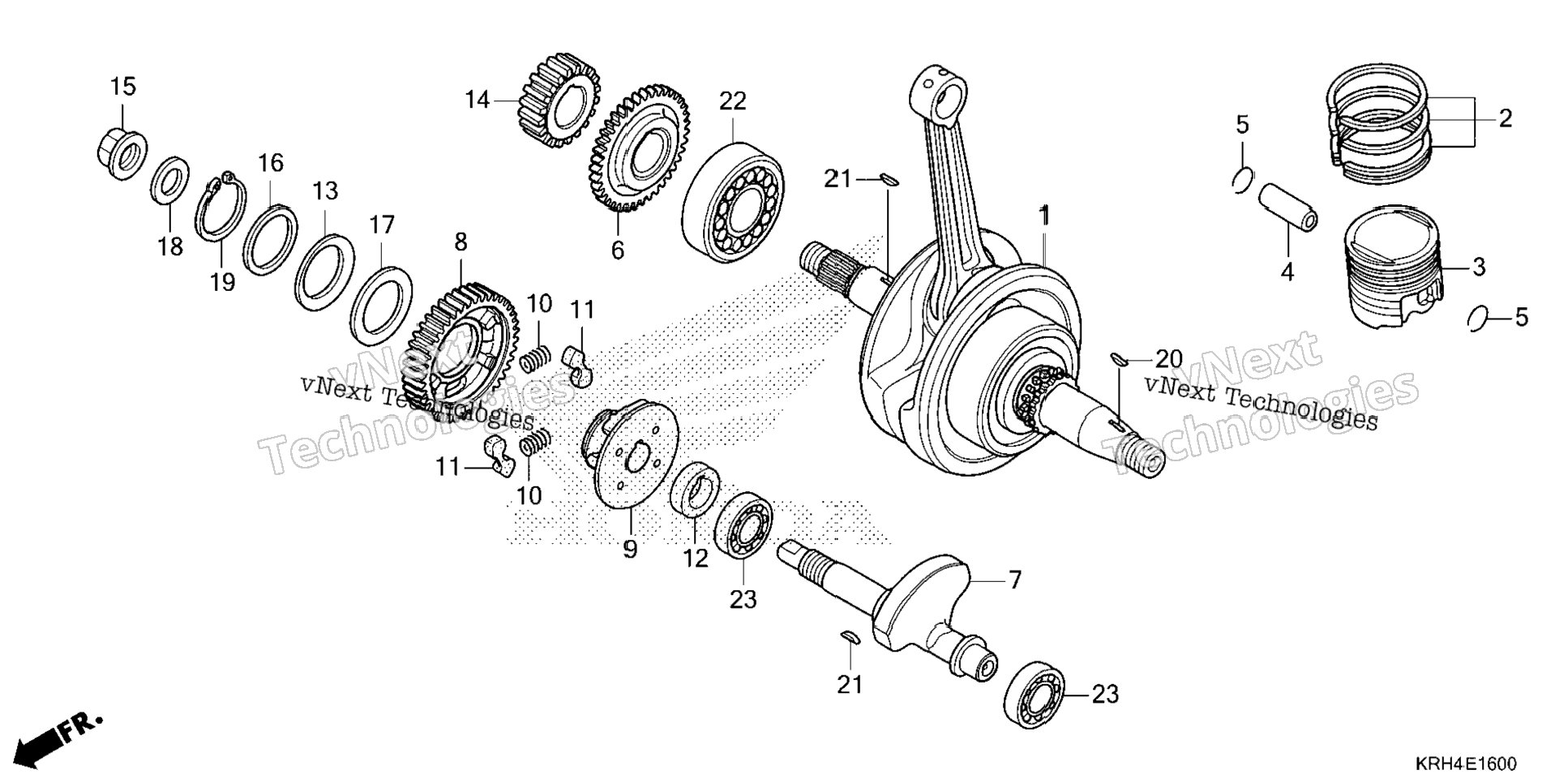

| 1 | 13000-KTT-C00 | CRANKSHAFT | 1 шт. | — | |
|
| 2 | 13011-KRM-305 | RING SET, PISTON (STD) (RIKEN) | 1 шт. | — | |
|
| 3 | 13101-KRM-930 | PISTON (STD) | 1 шт. | — | |
|
| 4 | 13111-KTT-900 | PIN, PISTON | 1 шт. | — | |
|
| 5 | 13112-KRM-840 | CLIP, PISTON PIN (14MM) | 2 шт. | — | |
|
| 6 | 13411-KTT-900 | GEAR (41T) | 1 шт. | — | |
|
| 7 | 13421-KRM-840 | SHAFT, BALANCER | 1 шт. | — | |
|
| 8 | 13422-KTT-900 | GEAR (41T) | 1 шт. | — | |
|
| 9 | 13426-KTT-900 | BUSH | 1 шт. | — | |
|
| 10 | 13427-KTT-900 | SPRING, DAMPER | 2 шт. | — | |
|
| 11 | 13428-KRM-840 | RUBBER, DAMPER | 2 шт. | — | |
|
| 12 | 13429-KTT-900 | COLLAR | 1 шт. | — | |
|
| 13 | 13538-KTT-900 | SPRING, THRUST | 1 шт. | — | |
|
| 14 | 23121-KTT-900 | GEAR, PRIMARY DRIVE (20T) | 1 шт. | — | |
|
| 15 | 90201-KRM-840 | NUT, FLANGE (14MM) | 1 шт. | — | |
|
| 16 | 90402-KTT-900 | WASHER (28.1X36X1.8) | 1 шт. | — | |
|
| 17 | 90403-KTT-900 | WASHER (28.1X45X1.4) | 1 шт. | — | |
|
| 18 | 90501-KPT-A00 | WASHER (14.1X29X2.8) | 1 шт. | — | |
|
| 19 | 90604-KTT-900 | CIRCLIP (OUTER) (28) | 1 шт. | — | |
|
| 20 | 90741-KFB-000 | KEY, WOODRUFF (4MM) | 1 шт. | — | |
|
| 21 | 90741-KGH-900 | KEY, WOODRUFF (4MM) | 2 шт. | — | |
|
| 22 | 91001-KSP-913 | BEARING (30X58X17) | 1 шт. | — | |
|
| 22 | 91001-KRM-842 | BEARING, ROLLER (30X58X17) (NTN) | 1 шт. | — | |
|
| 23 | 91004-KTT-900 | BEARING (6202) | 2 шт. | — | |
|
