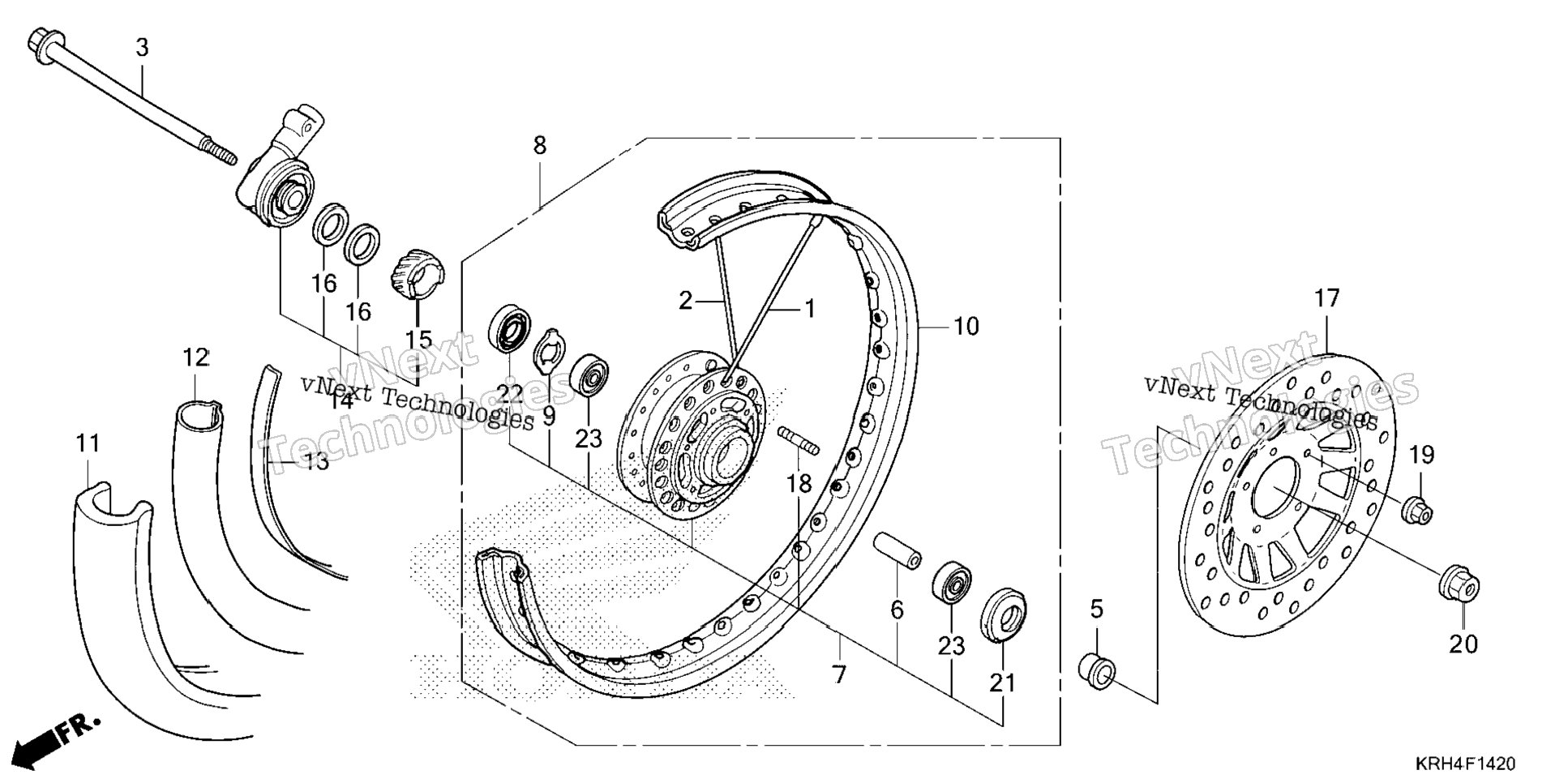

| 1 | 06440-KRH-900 | SPOKE SET A (10X206) | 18 шт. | — | |
|
| 2 | 06441-KRH-900 | SPOKE SET A | 18 шт. | — | |
|
| 3 | 44301-KRH-900 | AXLE, FR. WHEEL | 1 шт. | — | |
|
| 4 | 44312-KRH-900 | COLLAR, FR. WHEEL | 1 шт. | — | |
|
| 5 | 44620-KRH-900 | COLLAR, FR. | 1 шт. | — | |
|
| 6 | 44635-KRH-900 | HUB SUB-ASSY., FR. | 1 шт. | — | |
|
| 7 | 44650-KRH-900 | WHEEL SUB-ASSY., FR. | 1 шт. | — | |
|
| 8 | 44680-KRH-900 | RETAINER, GEAR BOX | 1 шт. | — | |
|
| 9 | 44701-KRH-900 | RIM, FR. WHEEL | 1 шт. | — | |
|
| 10 | 44711-KRH-902 | TIRE, FR. (90/90-19 M/C 52P) (CHENG SHIN) | 1 шт. | — | |
|
| 11 | 44712-KRH-901 | TUBE, TIRE | 1 шт. | — | |
|
| 12 | 44713-KRH-901 | FLAP, TIRE | 1 шт. | — | |
|
| 13 | 44800-KRH-901 | BOX ASSY. | 1 шт. | — | |
|
| 14 | 44806-KRH-901 | GEAR (20T) | 1 шт. | — | |
|
| 15 | 44808-KRH-901 | WASHER, GEAR | 2 шт. | — | |
|
| 16 | 45351-KRH-900 | DISK, L. FR. BRAKE | 1 шт. | — | |
|
| 17 | 90128-KGA-B90 | BOLT 2, STUD (6X16) | 5 шт. | — | |
|
| 18 | 90302-KYA-601 | NUT, FLANGE (6MM) (PT) | 5 шт. | — | |
|
| 19 | 90306-KYA-601 | NUT, FLANGE (12MM) (PT) | 1 шт. | — | |
|
| 20 | 90755-KRH-900 | OIL SEAL (21X37X7) | 1 шт. | — | |
|
| 21 | 90755-229-003 | OIL SEAL (21X37X7) (ARAI) | 1 шт. | — | |
|
| 22 | 90755-229-005 | OIL SEAL (21X37X7) (NOK) | 1 шт. | — | |
|
| 23 | 91258-MCG-901 | DUST SEAL (40X50X5) (SABO) | 1 шт. | — | |
|
| 24 | 91258-MCG-902 | DUST SEAL (40X50X5) (NOK) | 1 шт. | — | |
|
| 25 | 91258-410-003 | DUST SEAL (40X50X5) DUST SEAL (40X50X5) (NOK) | 1 шт. | — | |
|
| 26 | 91258-410-006 | DUST SEAL (40X50X5) (NOK) DUST SEAL (40X50X5) (ARAI) | 1 шт. | — | |
|
| 27 | 91258-410-013 | DUST SEAL (40X50X5) (ARAI) | 1 шт. | — | |
|
| 28 | 91052-KYK-911 | BEARING, RADIAL BALL (6301UU) | 2 шт. | — | |
|
| 29 | 91052-K09-C01 | BEARING (6301UU) | 2 шт. | — | |
|
