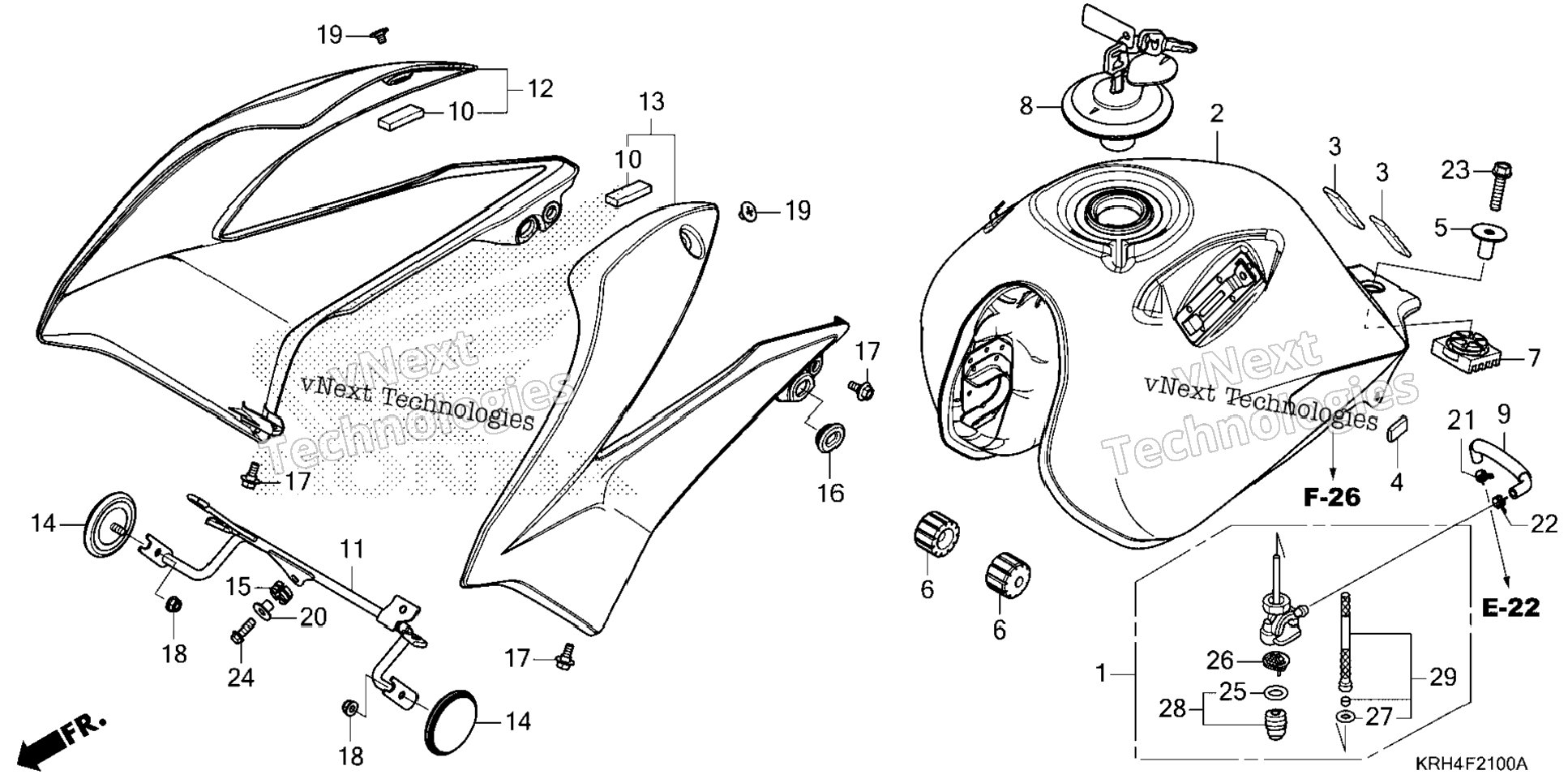

| 1 | 16950-KRH-J00 | PETCOCK ASSY. | 1 шт. | — | |
|
| 2 | 17505-KRH-J00ZA | TANK SET, FUEL *NH1* (BLACK) | 1 шт. | — | |
|
| 3 | 17517-KPF-900 | RUBBER A, FUEL TANK | 2 шт. | — | |
|
| 4 | 17518-KRE-900 | RUBBER | 2 шт. | — | |
|
| 5 | 17526-KRH-900 | COLLAR | 1 шт. | — | |
|
| 6 | 17611-KRH-900 | CUSHION, FR. FUEL TANK | 2 шт. | — | |
|
| 7 | 17613-KRH-900 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
|
| 8 | 17620-KRH-J01 | CAP, FUEL FILLER | 0 шт. | — | |
|
| 9 | 17681-KRH-J00 | TUBE, FUEL | 1 шт. | — | |
|
| 10 | 19032-KRH-660 | CUSHION A | 2 шт. | — | |
|
| 11 | 19040-KRH-G20 | JOINT, SHROUD | 1 шт. | — | |
|
| 12 | 19100-KRH-J00ZA | SHROUD SET, R. TANK (TYPE2) (WL) | 1 шт. | — | |
|
| 13 | 19100-KRH-J00ZB | SHROUD SET, R. TANK (TYPE1) (WL) | 1 шт. | — | |
|
| 14 | 19200-KRH-J00ZA | SHROUD SET, L. TANK (TYPE2) (WL) | 1 шт. | — | |
|
| 15 | 19200-KRH-J00ZB | SHROUD SET, L. TANK (TYPE1) (WL) | 1 шт. | — | |
|
| 16 | 33742-HB9-641 | REFLECTOR, FR. REFLEX (AMBER) | 2 шт. | — | |
|
| 17 | 37101-KRH-900 | RUBBER, SPEEDOMETER | 1 шт. | — | |
|
| 18 | 83551-KRH-D20 | GROMMET, SIDE COVER | 2 шт. | — | |
|
| 19 | 90116-KRH-900 | BOLT, FLANGE (6MM) | 4 шт. | — | |
|
| 20 | 90301-088-660 | NUT, SPECIAL (6MM) | 2 шт. | — | |
|
| 21 | 90381-KRH-900 | SCREW, SPECIAL (6X8) | 2 шт. | — | |
|
| 22 | 90509-KRH-900 | COLR, SIDE MOUNTING | 1 шт. | — | |
|
| 23 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 1 шт. | — | |
|
| 24 | 90653-KSJ-A20 | CLAMP, TUBE (8.5) | 1 шт. | — | |
|
| 25 | 95701-08032-00 | BOLT, FLANGE (8X32) | 1 шт. | — | |
|
| 26 | 96001-06018-00 | BOLT, FLANGE (6X18) | 1 шт. | — | |
|
| 27 | 16951-KRH-J00 | O-RING | 1 шт. | — | |
|
| 28 | 16952-KRH-J00 | FILTER, CUP | 1 шт. | — | |
|
| 29 | 16953-KRH-J00 | O-RING | 1 шт. | — | |
|
| 30 | 16954-KRH-J00 | CUP SET | 1 шт. | — | |
|
| 31 | 16955-KRH-J00 | SCREEN SET | 1 шт. | — | |
|
