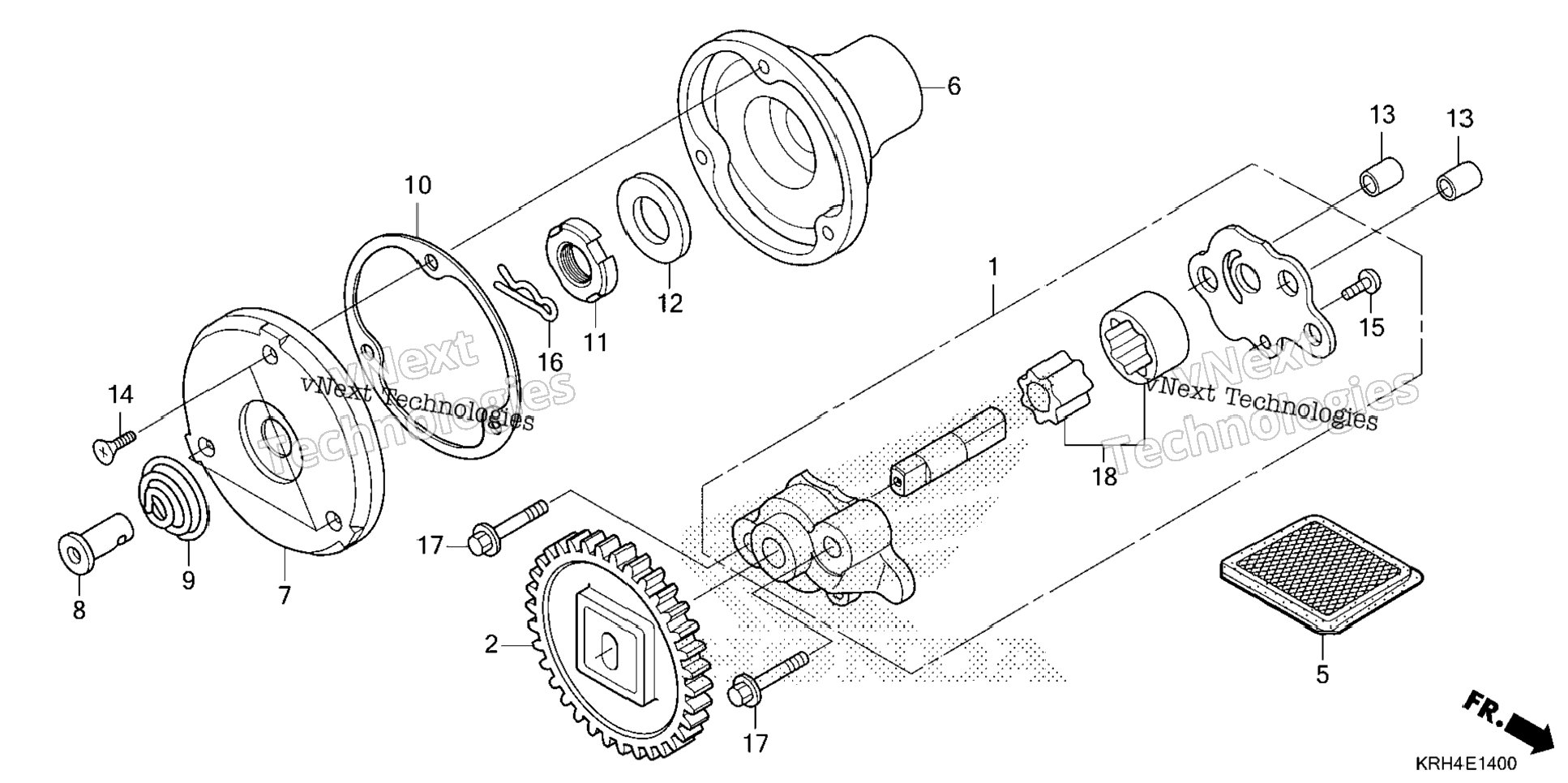

| 1 | 15100-KTT-900 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 2 | 15130-KTT-900 | GEAR, OIL PUMP (34T) | 1 шт. | — | |
|
| 5 | 15421-KSP-910 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 6 | 15430-KSP-910 | ROTOR, OIL FILTER | 1 шт. | — | |
|
| 7 | 15436-KRM-840 | CAP, OIL FILTER ROTOR | 1 шт. | — | |
|
| 8 | 15441-KCS-650 | THROUGH, OIL | 1 шт. | — | |
|
| 9 | 15446-107-000 | SPRING, OIL THROUGH | 1 шт. | — | |
|
| 10 | 15459-K70-630 | GSKT, OIL FILTER CAP | 1 шт. | — | |
|
| 11 | 90231-KRM-840 | NUT, LOCK (14MM) | 1 шт. | — | |
|
| 12 | 90432-KPT-A00 | WASHER (14.2X26X3) | 1 шт. | — | |
|
| 13 | 90702-KRM-840 | PIN, DOWEL (8X14) | 2 шт. | — | |
|
| 14 | 93700-05012-0A | SCREW, OVAL (5X12) | 3 шт. | — | |
|
| 15 | 93901-34120 | SCREW, TAPPING (4X8) | 1 шт. | — | |
|
| 16 | 94251-08000 | PIN, LOCK (8MM) | 1 шт. | — | |
|
| 17 | 95701-06035-00 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 18 | 15021-HS0-A00 | ROTOR SET, OIL PUMP (NA USE ALT:15100-HS0-A00) | 0 шт. | — | |
|
