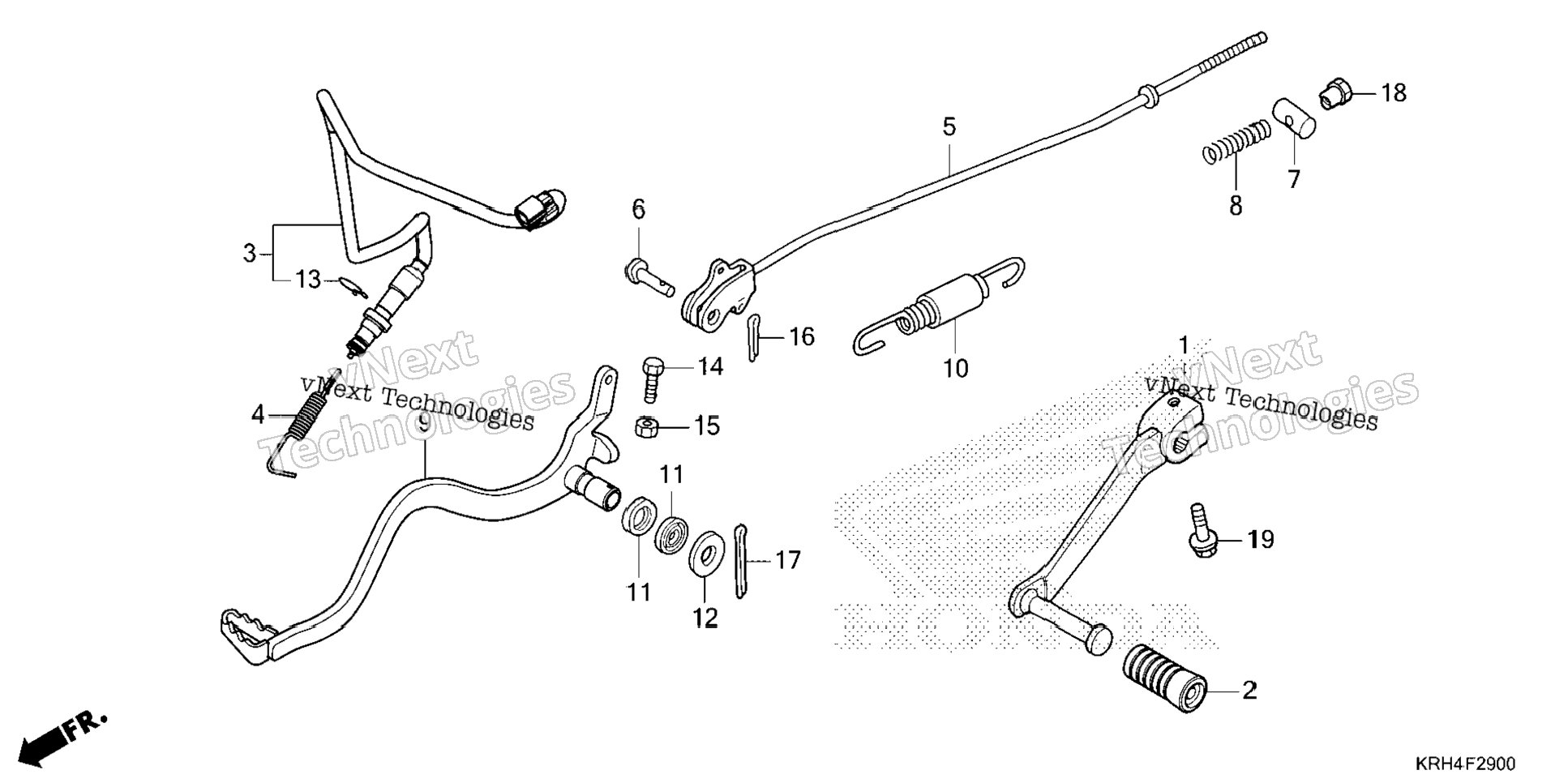

| 1 | 24710-KRH-900 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24781-KRH-900 | RUBBER, CHANGE PEDAL | 1 шт. | — | |
|
| 3 | 35350-KRH-J01 | SW ASSY., RR. STOP | 1 шт. | — | |
|
| 4 | 35357-KRH-900 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 5 | 43451-KRH-780 | ROD, RR. BRAKE | 1 шт. | — | |
|
| 6 | 43455-KRH-900 | PIN C, JOINT | 1 шт. | — | |
|
| 7 | 43456-KRH-900 | JOINT B, BRAKE ARM | 1 шт. | — | |
|
| 8 | 43472-KB9-750 | SPRING A, BRAKE ROD | 1 шт. | — | |
|
| 9 | 46500-KRH-J00 | PEDAL, BRAKE | 1 шт. | — | |
|
| 10 | 46513-KRH-900 | SPRING SET, BRAKE PEDAL | 1 шт. | — | |
|
| 11 | 46525-KRH-900 | DUST SEAL (17X20X2.5) | 2 шт. | — | |
|
| 12 | 90501-KRH-900 | WASHER, BUSH | 1 шт. | — | |
|
| 13 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 14 | 92101-06020-0A | BOLT, HEX. (6X20) BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 15 | 94001-06200-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 16 | 94201-20120 | PIN, COTTER (2.0X12) | 1 шт. | — | |
|
| 17 | 94201-30250 | PIN, COTTER (3.0X25) PIN, COTTER (3X30) | 1 шт. | — | |
|
| 18 | 94201-30280 | PIN, COTTER (3.0X28) | 1 шт. | — | |
|
| 19 | 94201-30300 | PIN, COTTER (3X30) PIN, COTTER (3.0X40) | 1 шт. | — | |
|
| 20 | 94201-30400 | PIN, COTTER (3.0X40) PIN, COTTER (3.0X45) | 1 шт. | — | |
|
| 21 | 94201-30450 | PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30) | 1 шт. | — | |
|
| 22 | 95015-42000 | NUT B, BRAKE ROD ADJUSTING | 1 шт. | — | |
|
| 23 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 1 шт. | — | |
|
