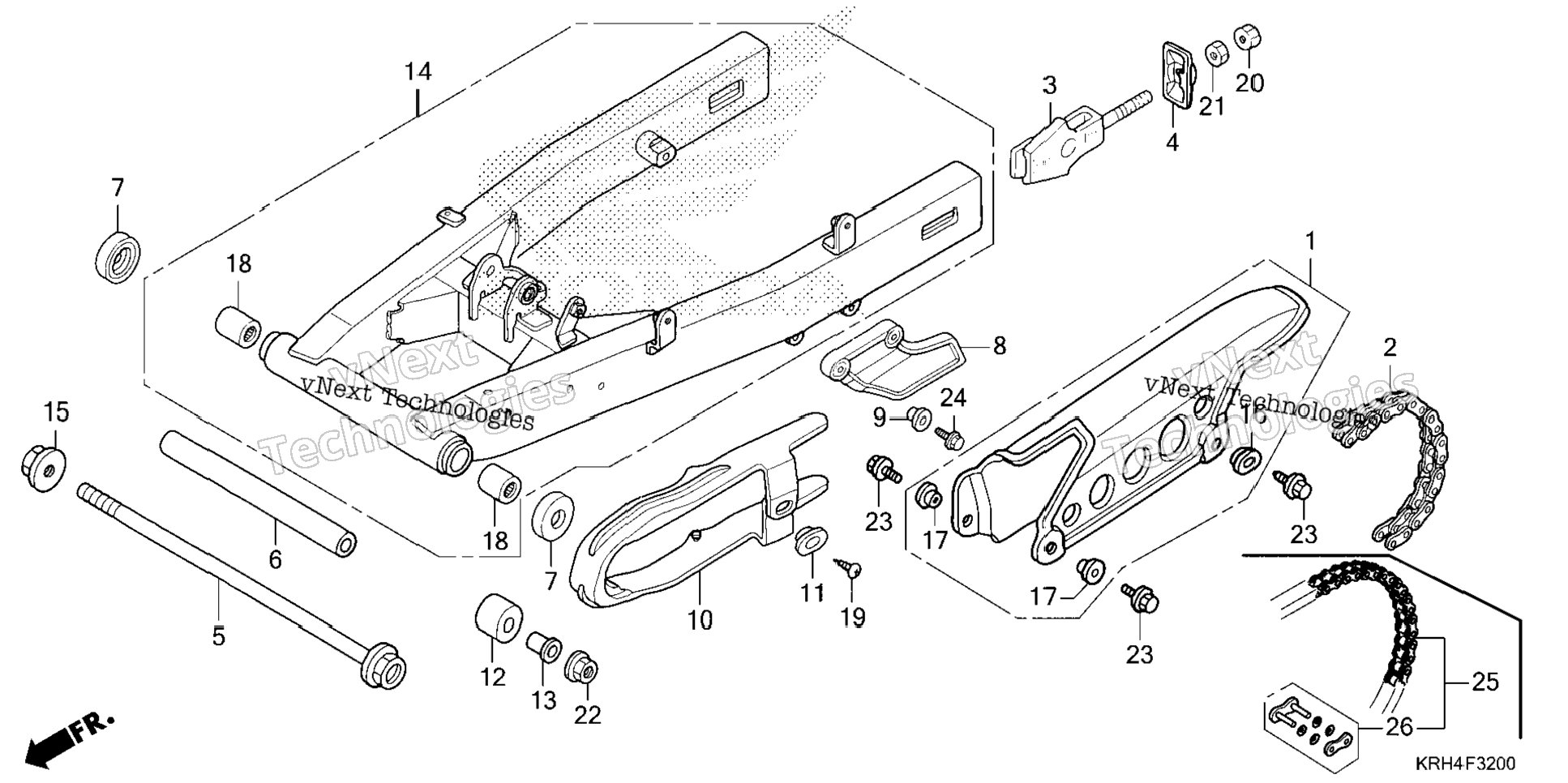

| 1 | 40510-KRH-900 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40530-KRH-781 | CHAIN (428HO-130LE) | 1 шт. | — | |
|
| 3 | 40543-KRH-900 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 4 | 40546-KRH-900 | CAP, SWINGARM END | 2 шт. | — | |
|
| 5 | 52101-KRH-900 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 6 | 52141-KRH-900 | COLLAR | 1 шт. | — | |
|
| 7 | 52144-268-000 | CAP, DUST SEAL | 2 шт. | — | |
|
| 8 | 52144-286-000 | CAP, DUST SEAL | 2 шт. | — | |
|
| 9 | 52144-329-000 | CAP, DUST SEAL | 2 шт. | — | |
|
| 10 | 52144-356-003 | CAP, SWINGARM DUST SEAL (ARAI) | 2 шт. | — | |
|
| 11 | 52144-356-005 | CAP, SWINGARM DUST SEAL (NOK) | 2 шт. | — | |
|
| 12 | 52155-KRH-900 | GUARD, CHAIN | 1 шт. | — | |
|
| 13 | 52159-KRH-900 | COLLAR, CHAIN GUARD | 2 шт. | — | |
|
| 14 | 52170-KRH-660 | SLIDER, CHAIN | 1 шт. | — | |
|
| 15 | 52171-KRH-900 | WASHER, CHAIN SLIDER | 1 шт. | — | |
|
| 16 | 52175-KRE-900 | ROLLER, CHAIN | 1 шт. | — | |
|
| 17 | 52176-KRH-900 | COLLAR, CHAIN ROLLER | 1 шт. | — | |
|
| 18 | 52200-K79-E00ZA | SWINGARM SUB-ASSY., RR. *NH411M* (FORCE SILVER METALLIC) | 1 шт. | — | |
|
| 19 | 90305-KYA-601 | NUT, FLANGE (14MM) (PT) | 1 шт. | — | |
|
| 20 | 90505-KRH-900 | WASHER (6X9) | 1 шт. | — | |
|
| 21 | 90512-KRH-900 | WASHER (6.5X20) | 2 шт. | — | |
|
| 22 | 91070-GC4-601 | BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT | 2 шт. | — | |
|
| 23 | 91071-KSP-901 | BEARING, NEEDLE (20X26X20) | 2 шт. | — | |
|
| 24 | 93901-25080 | SCREW, TAPPING (5X8) | 1 шт. | — | |
|
| 25 | 94002-080000S | NUT,HEX 8MM | 2 шт. | — | |
|
| 26 | 94030-08000 | NUT, HEX. (8MM) | 2 шт. | — | |
|
| 27 | 94050-06000 | NUT, FLANGE (6MM) | 1 шт. | — | |
|
| 28 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 3 шт. | — | |
|
| 29 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 2 шт. | — | |
|
| 30 | 40540-K79-E02 | CHAIN (428V-130ZB) | 1 шт. | — | |
|
| 31 | 40545-KRH-D21 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
