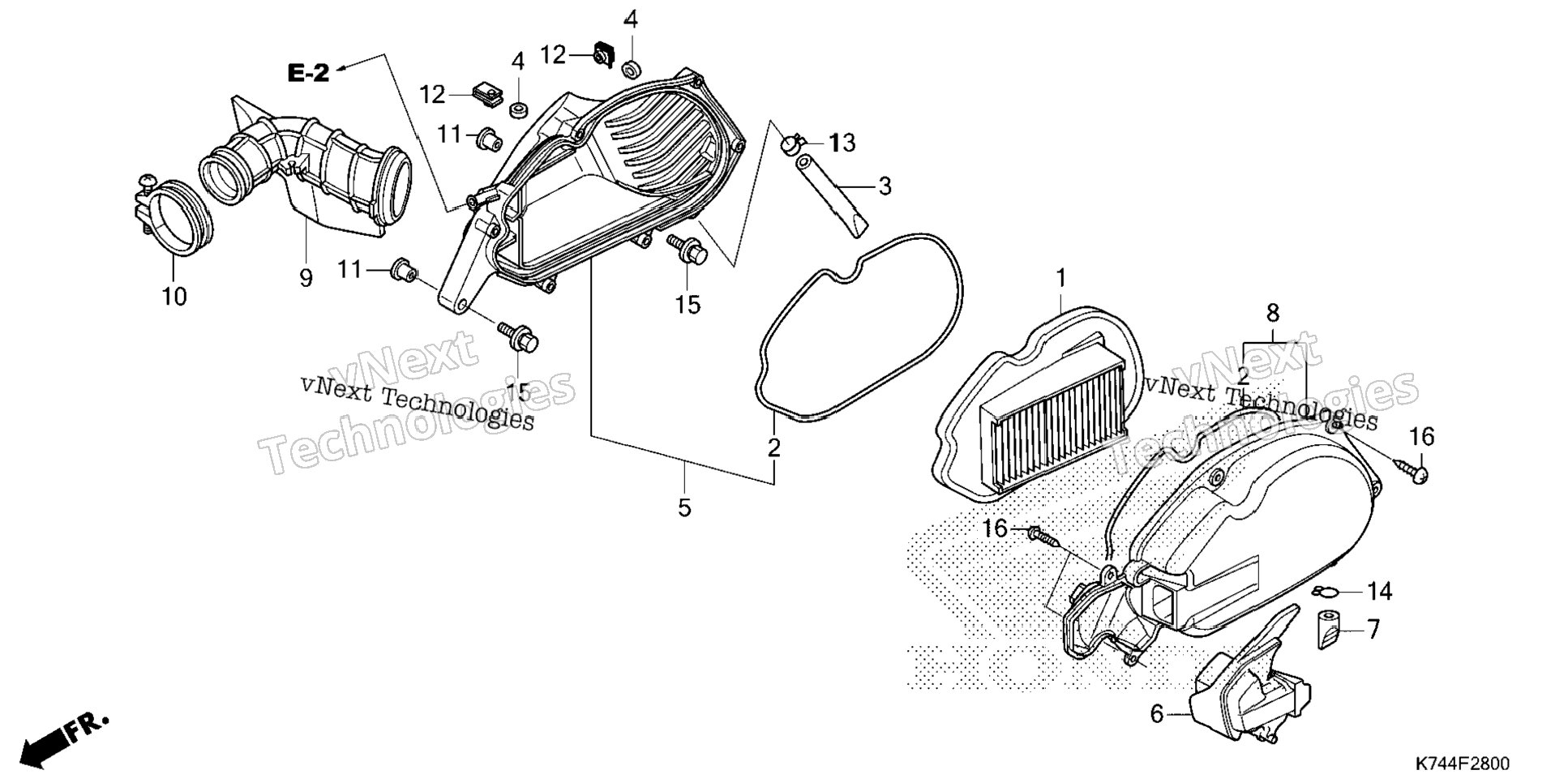

| 1 | 17210-KVT-D00 | ELEMENT, AIR/C | 1 шт. | — | |
|
| 2 | 17212-GEE-000 | SEAL, AIR/C COVER | 2 шт. | — | |
|
| 3 | 17216-KVT-G00 | TUBE, DRAIN | 1 шт. | — | |
|
| 4 | 17223-KVX-600 | COLLAR, AIR CLEANER | 2 шт. | — | |
|
| 5 | 17225-K74-N20 | CASE SUB-ASSY. | 1 шт. | — | |
|
| 6 | 17234-K74-N00 | COVER | 1 шт. | — | |
|
| 7 | 17234-KCC-941 | TUBE | 1 шт. | — | |
|
| 8 | 17235-KVT-G00 | COVER SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 9 | 17253-KVT-G00 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 10 | 17254-K74-N00 | BAND (40) | 1 шт. | — | |
|
| 11 | 50731-KV3-770 | COLLAR | 2 шт. | — | |
|
| 12 | 90311-MT3-000 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 13 | 90602-KPL-900 | CLAMP, TUBE (D12.0) | 1 шт. | — | |
|
| 14 | 90653-KWP-F00 | CLIP, TUBE (B12.5) | 1 шт. | — | |
|
| 15 | 93404-06040-07 | BOLT-WASHER (6X40) | 2 шт. | — | |
|
| 16 | 93903-25480 | SCREW, TAPPING (5X20) | 8 шт. | — | |
|
