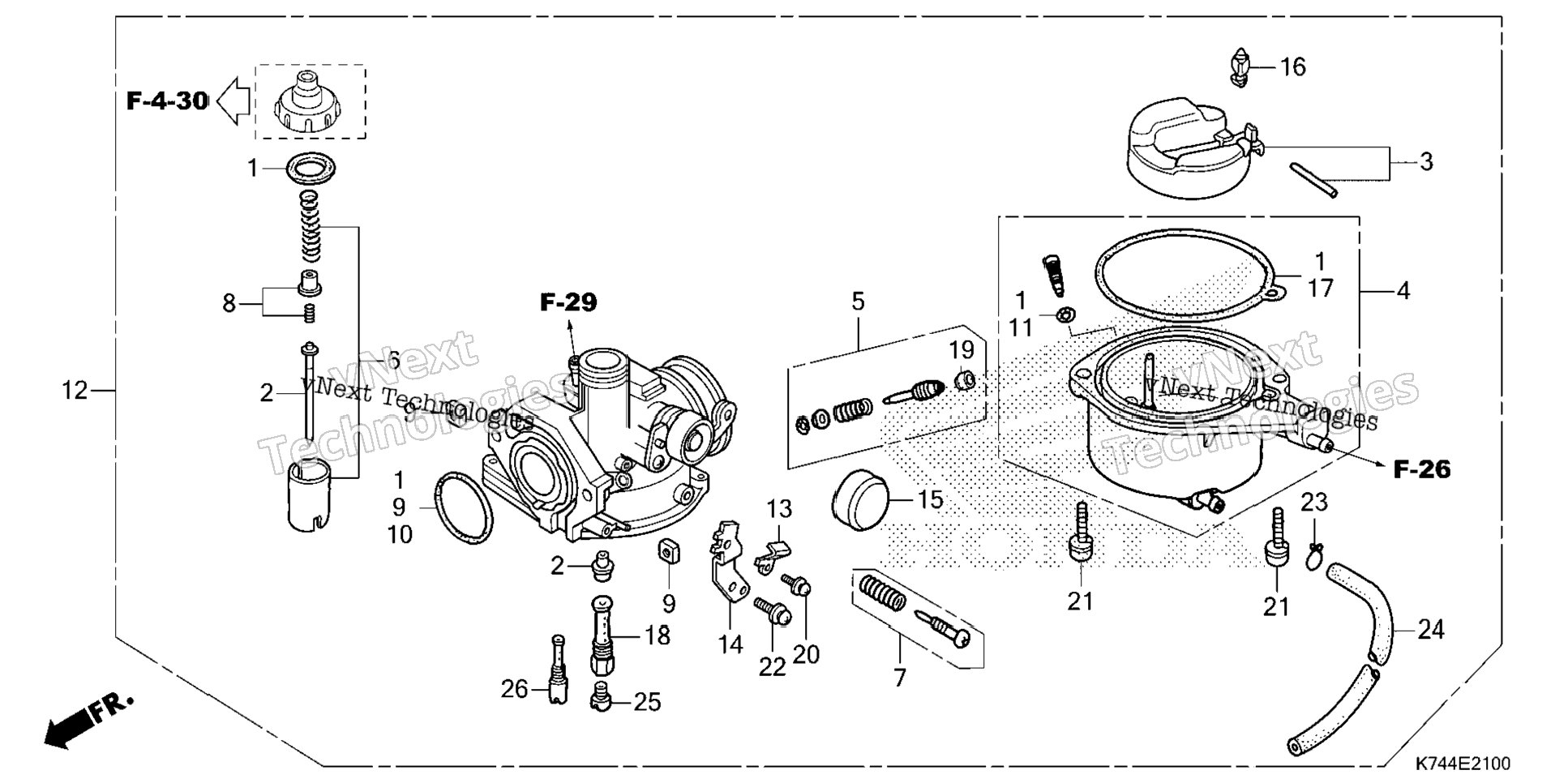

| 1 | 16010-K24-901 | GASKET SET | 1 шт. | — | |
|
| 2 | 16012-K74-F01 | NEEDLE SET, JET | 1 шт. | — | |
|
| 3 | 16013-KRB-901 | FLOAT SET | 1 шт. | — | |
|
| 4 | 16015-K24-901 | CHAMBER SET, FLOAT | 1 шт. | — | |
|
| 5 | 16016-K74-F01 | SCREW SET | 1 шт. | — | |
|
| 6 | 16022-K74-F01 | VALVE SET, THROTTLE | 1 шт. | — | |
|
| 7 | 16028-KPL-901 | SCREW SET | 1 шт. | — | |
|
| 8 | 16037-KRS-601 | PLATE SET, VALVE | 1 шт. | — | |
|
| 9 | 16041-KPL-901 | NUT SET, SQUARE | 1 шт. | — | |
|
| 10 | 16075-KPL-901 | O-RING | 1 шт. | — | |
|
| 11 | 16076-KPL-901 | O-RING | 1 шт. | — | |
|
| 12 | 16100-K74-A01 | CARBURETOR ASSY. | 1 шт. | — | |
|
| 13 | 16119-KPL-901 | PLATE, STAY | 1 шт. | — | |
|
| 14 | 16119-KWP-901 | STAY, WIRE | 1 шт. | — | |
|
| 15 | 16148-KPL-901 | CAP, CHOKE DUST | 1 шт. | — | |
|
| 16 | 16155-KPL-901 | VALVE, FLOAT | 1 шт. | — | |
|
| 17 | 16163-KWS-901 | GASKET, FLOAT CHAMBER | 1 шт. | — | |
|
| 18 | 16165-KVT-D01 | HOLDER, NEEDLE JET | 1 шт. | — | |
|
| 19 | 16312-KYK-911 | CAP, ADJUSTING SCREW | 1 шт. | — | |
|
| 20 | 93892-04010-08 | SCREW-WASHER (4X10) | 1 шт. | — | |
|
| 20 | 93892-04010-18 | SCREW-WASHER (4X10) | 1 шт. | — | |
|
| 21 | 93892-04018-08 | SCREW-WASHER (4X18) | 2 шт. | — | |
|
| 22 | 93892-05012-18 | SCREW-WASHER (5X12) | 1 шт. | — | |
|
| 22 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) | 1 шт. | — | |
|
| 23 | 95002-02659 | CLIP, TUBE (B6.5) | 1 шт. | — | |
|
| 24 | 95005-35001-50M | BULK HOSE, VACUUM (3.5X1000) (3.5X350) | 1 шт. | — | |
|
| 25 | 99101-HF7-0800 | JET, MAIN (#80) (Optional). | 1 шт. | — | |
|
| 25 | 99101-GCK-0850 | JET, MAIN (#85) | 1 шт. | — | |
|
| 26 | 99103-GFP-0350 | JET, SLOW (#35) | 1 шт. | — | |
|
