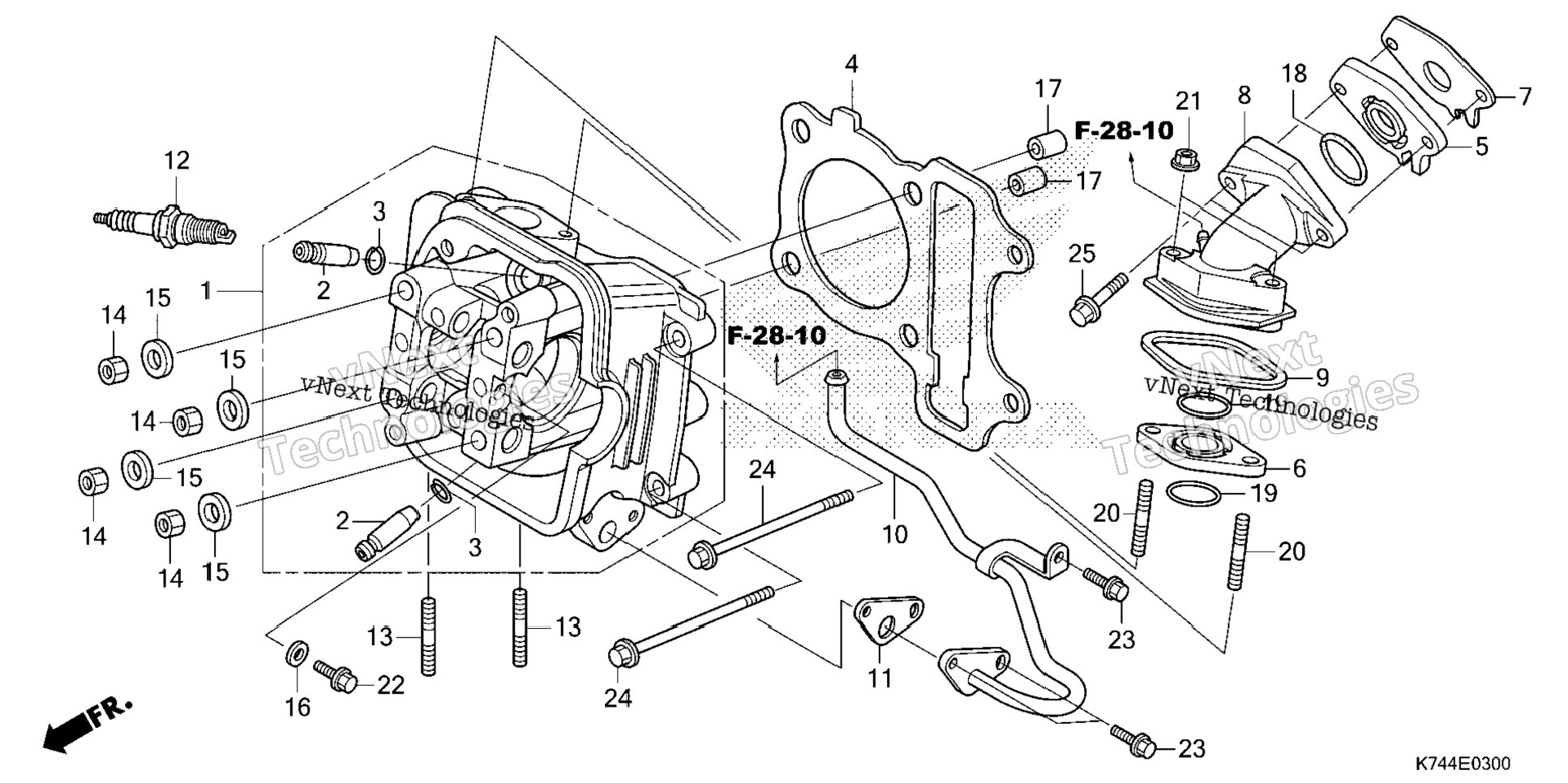

| 1 | 12200-KWP-H00 | CYLINDER HEAD | 1 шт. | — | |
|
| 2 | 12204-KWP-P00 | GUIDE, VALVE (OS) | 2 шт. | — | |
|
| 3 | 12206-KPL-900 | CLIP, VALVE GUIDE | 2 шт. | — | |
|
| 4 | 12251-KWP-D01 | GSKT (STD/0.25/0.50) | 1 шт. | — | |
|
| 5 | 16211-KWP-900 | INSULATOR A, CARB | 1 шт. | — | |
|
| 6 | 16212-KWP-900 | INSULATOR B, CARB | 1 шт. | — | |
|
| 7 | 16229-KRP-602 | GASKET A, CARBURETOR INSULATOR | 1 шт. | — | |
|
| 8 | 17110-K74-N00 | PIPE, INLET | 1 шт. | — | |
|
| 9 | 17113-KWP-900 | RUB, IN. PIPE SEAL | 1 шт. | — | |
|
| 10 | 18640-KWP-D00 | PIPE, AIR FEED | 1 шт. | — | |
|
| 11 | 18645-KVY-900 | GSKT, AIR FEED PIPE | 1 шт. | — | |
|
| 12 | 31917-KWP-D01 | SPARK PLUG (MR7C-9N) | 1 шт. | — | |
|
| 12 | 31917-KWP-H02 | SPARK PLUG (UR6DE0) (BOSCH) | 1 шт. | — | |
|
| 13 | 90004-KGF-910 | BOLT, STUD (7X17) | 2 шт. | — | |
|
| 14 | 90201-GCC-000 | NUT, HEX. (7MM) | 4 шт. | — | |
|
| 15 | 90401-GCC-000 | WASHER (7.2X16X2.5) | 4 шт. | — | |
|
| 16 | 90402-KWP-900 | WASHER (6MM) | 1 шт. | — | |
|
| 17 | 90701-KPL-900 | PIN (8X14) | 2 шт. | — | |
|
| 18 | 91304-KWP-900 | O-RING (25X2.4) | 1 шт. | — | |
|
| 19 | 91308-GFM-900 | O-RING (25.5X1.9) | 2 шт. | — | |
|
| 20 | 92900-06035-0B | BOLT, STUD (6X35) | 2 шт. | — | |
|
| 21 | 94050-06000 | NUT, FLANGE (6MM) | 2 шт. | — | |
|
| 22 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
| 23 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 3 шт. | — | |
|
| 24 | 95701-06100-00 | BOLT, FLANGE (6X100) | 2 шт. | — | |
|
| 25 | 96001-06028-00 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
