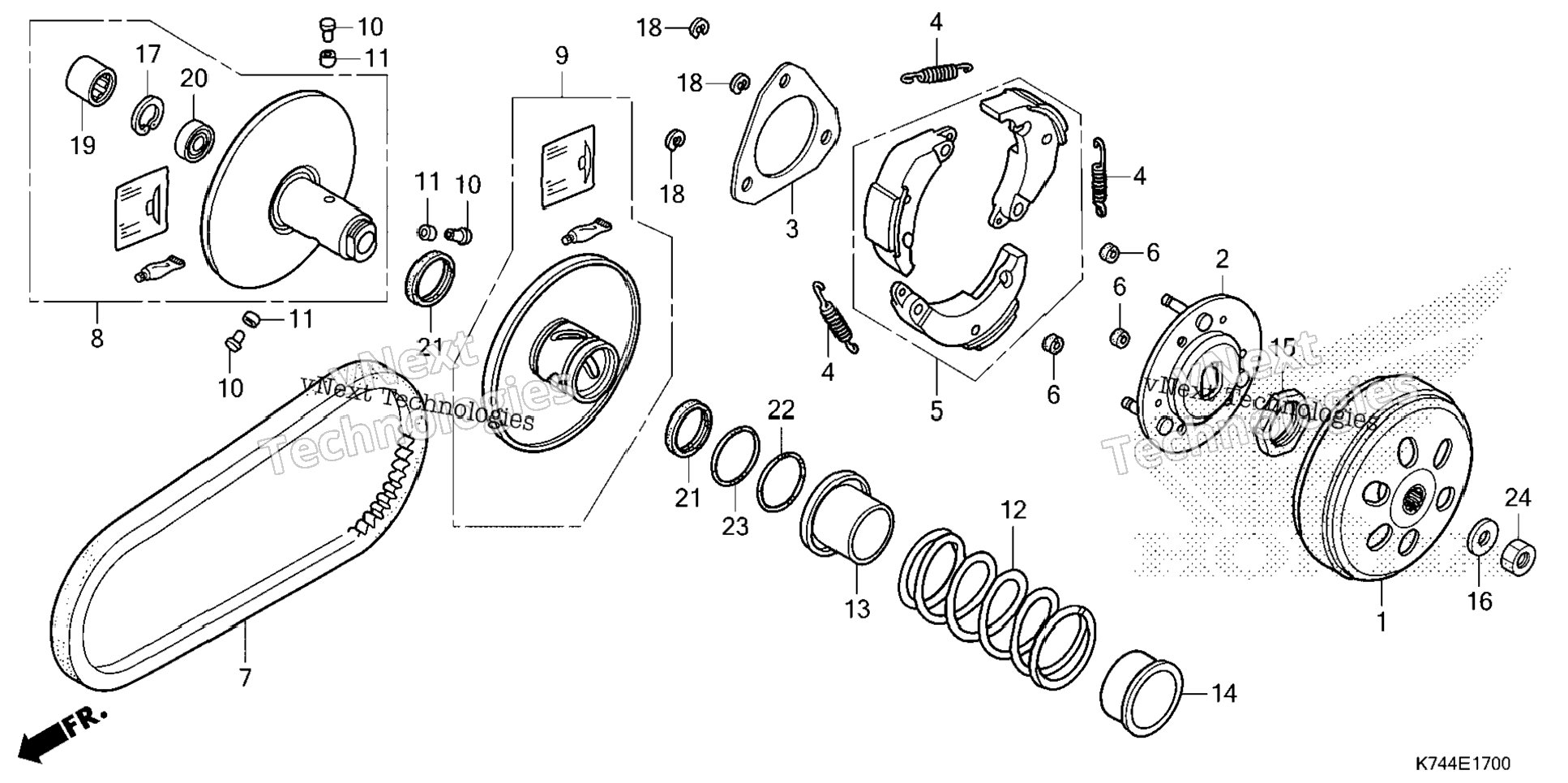

| 1 | 22100-KWP-D01 | CLUTCH OUTER | 1 шт. | — | |
|
| 2 | 22350-KWP-D01 | PLATE, DRIVE | 1 шт. | — | |
|
| 3 | 22350-KWP-900 | PLATE, DRIVE | 1 шт. | — | |
|
| 4 | 22361-KWP-D00 | PLATE, CLUTCH SIDE | 1 шт. | — | |
|
| 5 | 22401-KGG-910 | SPRING, CLUTCH | 3 шт. | — | |
|
| 6 | 22535-KWP-D00 | WEIGHT SET, CLUTCH | 1 шт. | — | |
|
| 7 | 22804-148-000 | RUBBER, CLUTCH DAMPER | 3 шт. | — | |
|
| 8 | 23100-KWP-D01 | BELT, DRIVE | 1 шт. | — | |
|
| 9 | 23205-KWP-H00 | FACE SET, DRIVEN | 1 шт. | — | |
|
| 10 | 23224-KWP-D01 | FACE SET | 1 шт. | — | |
|
| 11 | 23225-KSY-900 | PIN, ROLLER GUIDE | 3 шт. | — | |
|
| 12 | 23226-GFM-900 | ROLLER, GUIDE | 3 шт. | — | |
|
| 13 | 23226-KVB-900 | ROLLER, GUIDE | 3 шт. | — | |
|
| 14 | 23233-KWP-D00 | SPRING, DRIVEN FACE | 1 шт. | — | |
|
| 15 | 23237-KWP-D00 | COLLAR, SEAL | 1 шт. | — | |
|
| 16 | 23238-KWP-900 | COLLAR, SPRING | 1 шт. | — | |
|
| 17 | 90202-KPL-900 | NUT, SPECIAL (28MM) | 1 шт. | — | |
|
| 18 | 90441-GY6-940 | WASHER (12.2X29X2.5) | 1 шт. | — | |
|
| 19 | 90601-KWP-900 | CIRCLIP (28MM) | 1 шт. | — | |
|
| 20 | 90605-166-720 | CIRCLIP (7MM) | 3 шт. | — | |
|
| 21 | 91109-GGC-G01 | BEARING, NEEDLE (20X29X18) | 1 шт. | — | |
|
| 22 | 91109-KVY-902 | BEARING, NEEDLE (20X29X18) (SCHAEFFLER) | 1 шт. | — | |
|
| 23 | 91004-GGC-G01 | BEARING, RADIAL BALL (6902U) | 1 шт. | — | |
|
| 24 | 91009-KVY-961 | BEARING, RADIAL BALL (6902U) (NSK) | 1 шт. | — | |
|
| 25 | 91211-K24-901 | SEAL (34X39X3) | 2 шт. | — | |
|
| 26 | 91351-642-000 | O-RING, PINION CAP (36.7X1.9) | 1 шт. | — | |
|
| 27 | 91351-GR1-000 | O-RING (38.5X2) | 1 шт. | — | |
|
| 28 | 94030-12200 | NUT, HEX. (12MM) | 1 шт. | — | |
|
