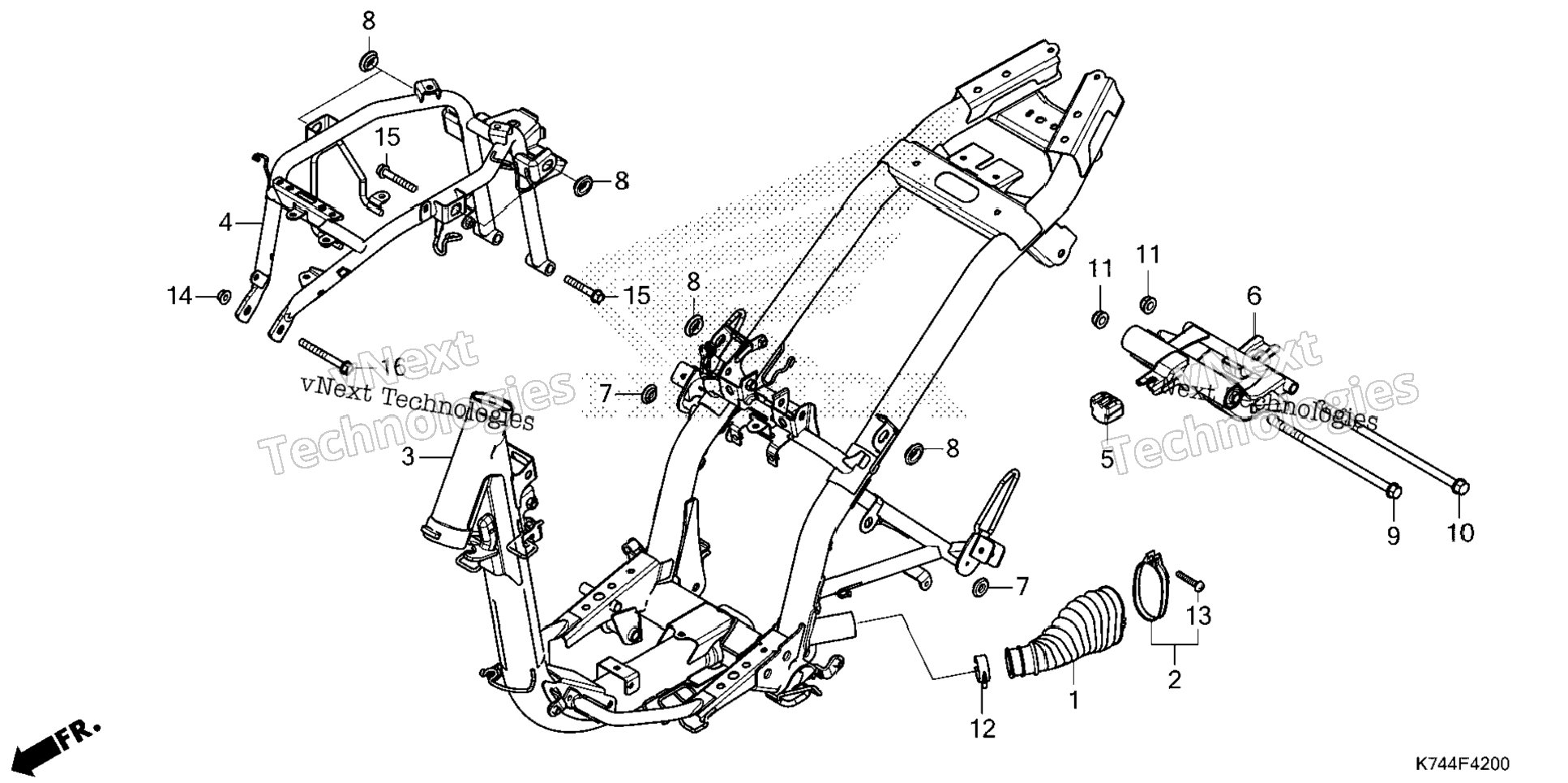

| 1 | 11345-KWP-G00 | DUCT, L. COVER | 1 шт. | — | |
|
| 2 | 11346-KCW-870 | BAND, L. COVER DUCT | 1 шт. | — | |
|
| 3 | 50100-K74-A00 | FRAME | 1 шт. | — | |
|
| 4 | 50160-K74-A00 | STAY, FUEL TANK | 1 шт. | — | |
|
| 5 | 50352-GW0-730 | RUBBER, LINK STOPPER | 1 шт. | — | |
|
| 6 | 50355-K74-N00 | LINK SUB-ASSY. | 1 шт. | — | |
|
| 7 | 83551-376-000 | GROMMET, SIDE COVER | 2 шт. | — | |
|
| 8 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 6 шт. | — | |
|
| 9 | 90105-KJ9-000 | BOLT, FLANGE (10X210) | 1 шт. | — | |
|
| 10 | 90106-GCC-000 | BOLT, FLG (10X238) | 1 шт. | — | |
|
| 11 | 90304-KTE-911 | NUT (10MM) | 2 шт. | — | |
|
| 12 | 91405-KPL-900 | CLAMP, TUBE (D29) | 1 шт. | — | |
|
| 13 | 93500-04025-0G | SCREW, PAN (4X25) | 1 шт. | — | |
|
| 14 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 1 шт. | — | |
|
| 15 | 95701-08050-00 | BOLT, FLANGE (8X50) | 2 шт. | — | |
|
| 16 | 95701-08075-00 | BOLT, FLANGE (8X75) | 1 шт. | — | |
|
