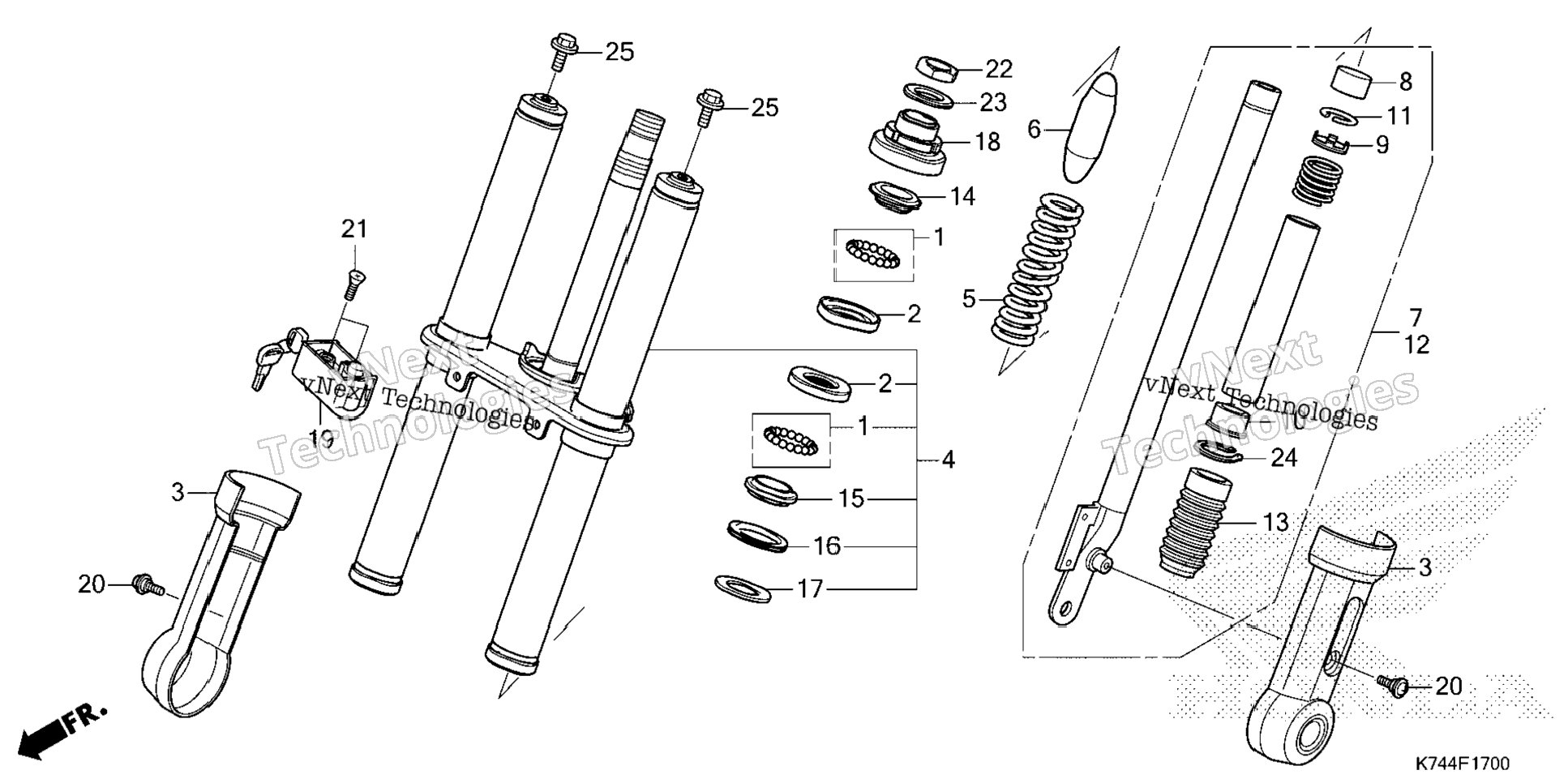

| 1 | 06531-KGA-B90 | BALL, STEEL (#8X18) | 2 шт. | — | |
|
| 2 | 50301-KTR-900 | RACE, STEERING TOP BALL | 2 шт. | — | |
|
| 3 | 51103-K74-N00 | COVER, FR. FORK | 2 шт. | — | |
|
| 4 | 51110-K74-N60 | FORK SUB-ASSY., FR. | 1 шт. | — | |
|
| 5 | 51401-K74-N01 | SPRING, FR. FORK | 2 шт. | — | |
|
| 6 | 51406-K74-N01 | RUBBER, STOPPER | 2 шт. | — | |
|
| 7 | 51420-K74-N01 | PIPE ASSY., R. SLIDE | 1 шт. | — | |
|
| 8 | 51423-K74-N01 | PISTON, SLIDE PIPE | 2 шт. | — | |
|
| 9 | 51426-K74-N01 | STOPPER, REBOUND | 2 шт. | — | |
|
| 10 | 51443-K74-N01 | BUSH, SLIDE PIPE | 2 шт. | — | |
|
| 11 | 51446-K74-N01 | RING, STOPPER | 2 шт. | — | |
|
| 12 | 51520-K74-N01 | PIPE ASSY., L. SLIDE | 1 шт. | — | |
|
| 13 | 51611-K74-N01 | BOOT, FR. FORK | 2 шт. | — | |
|
| 14 | 53211-268-010 | RACE, STEERING CONE (UPPER) | 1 шт. | — | |
|
| 15 | 53212-200-000 | RACE, STEERING CONE (LOWER) | 1 шт. | — | |
|
| 16 | 53212-200-305 | RACE, STEERING CONE (LOWER) | 1 шт. | — | |
|
| 17 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 шт. | — | |
|
| 18 | 53215-K74-N00 | WASHER | 1 шт. | — | |
|
| 19 | 53220-KSP-900 | THREAD | 1 шт. | — | |
|
| 20 | 53600-K74-N01 | LOCK, HANDLEBAR | 1 шт. | — | |
|
| 21 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 шт. | — | |
|
| 22 | 90164-KPL-900 | SCREW (6X12) | 2 шт. | — | |
|
| 23 | 90304-425-000 | NUT, STEERING STEM | 1 шт. | — | |
|
| 24 | 90503-K74-N00 | WASHER | 1 шт. | — | |
|
| 25 | 90652-K74-N01 | CIRCLIP (38MM) | 2 шт. | — | |
|
| 26 | 95701-08018-08 | BOLT, FLANGE (8X18) | 2 шт. | — | |
|
