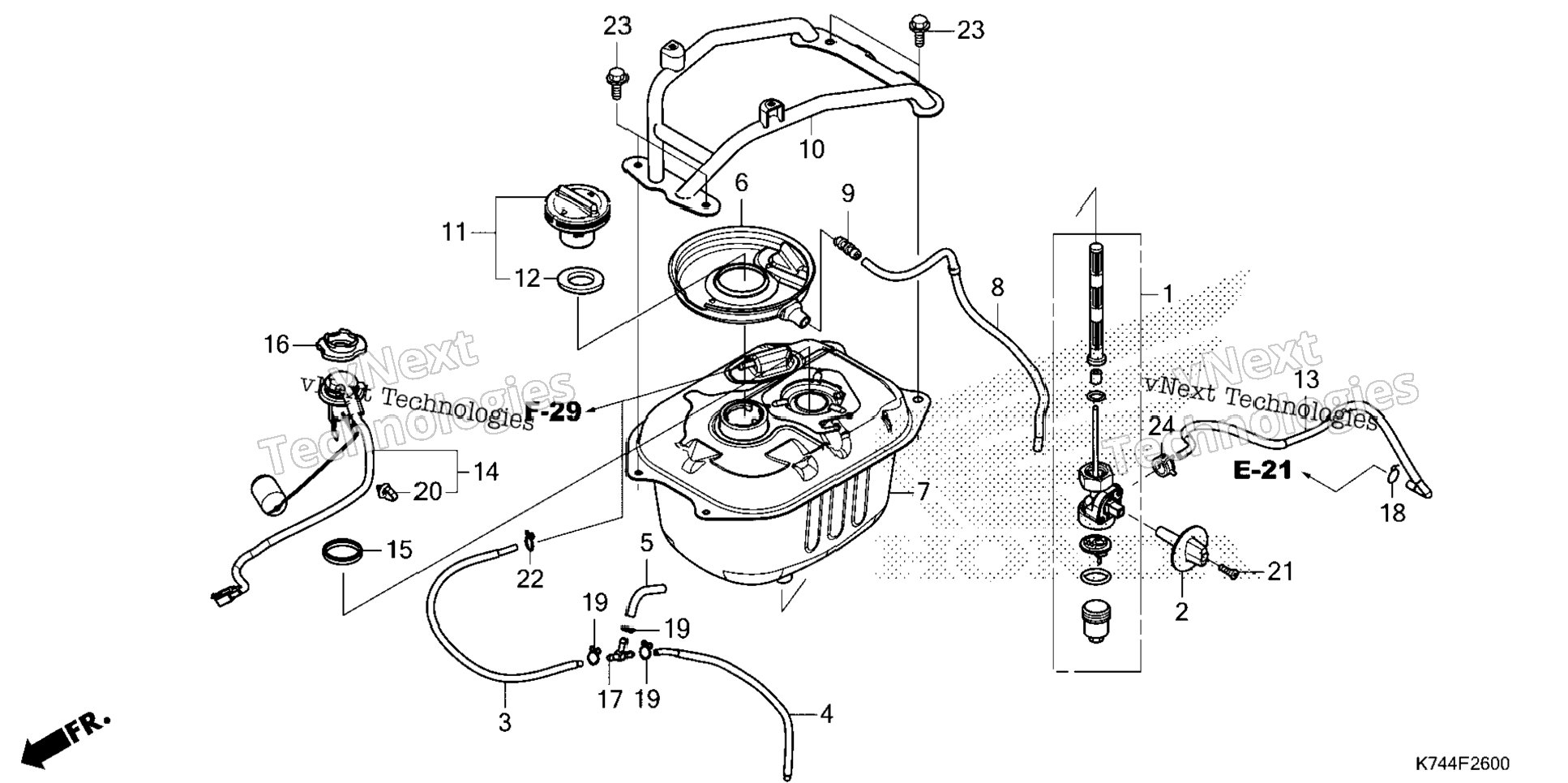

| 1 | 16950-K74-F01 | PETCOCK ASSY. | 1 шт. | — | |
|
| 2 | 16955-K74-N00 | LEVER, PETCOCK | 1 шт. | — | |
|
| 3 | 17417-K74-A00 | TUBE, BREATHER | 1 шт. | — | |
|
| 4 | 17418-K74-A00 | TUBE, DRAIN | 1 шт. | — | |
|
| 5 | 17419-K74-A00 | TUBE, AIR | 1 шт. | — | |
|
| 6 | 17505-K74-N00 | TRAY, FUEL | 1 шт. | — | |
|
| 7 | 17510-K74-A00 | TANK COMP, FUEL | 1 шт. | — | |
|
| 8 | 17515-K74-N00 | TUBE, FUEL DRAIN | 1 шт. | — | |
|
| 9 | 17525-KTP-900 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 10 | 17550-K74-N20 | PIPE | 1 шт. | — | |
|
| 11 | 17620-K0L-D01 | CAP COMP | 1 шт. | — | |
|
| 12 | 17632-383-832 | GASKET, FUEL FILLER CAP | 1 шт. | — | |
|
| 13 | 17683-K74-A00 | TUBE, FUEL | 1 шт. | — | |
|
| 14 | 37800-K74-A01 | FUEL UNIT | 1 шт. | — | |
|
| 15 | 37801-K74-A01 | GASKET, BASE | 1 шт. | — | |
|
| 16 | 37802-GA7-700 | RETAINER, FUEL UNIT | 1 шт. | — | |
|
| 17 | 38581-K26-B00 | JOINT, TUBE | 1 шт. | — | |
|
| 18 | 90653-KSJ-A20 | CLAMP, TUBE (8.5) | 1 шт. | — | |
|
| 19 | 90652-KWP-F00 | CLIP, TUBE (B8) | 3 шт. | — | |
|
| 20 | 91540-S30-003 | CLIP, HARNESS BAND (151.5MM) (NATURAL) | 1 шт. | — | |
|
| 21 | 93500-04030-0G | SCREW, PAN (4X30) | 1 шт. | — | |
|
| 22 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 1 шт. | — | |
|
| 23 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 4 шт. | — | |
|
| 24 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 1 шт. | — | |
|
